1231 Series
Manufacturer: APM Hexseal
Beta
⌘K

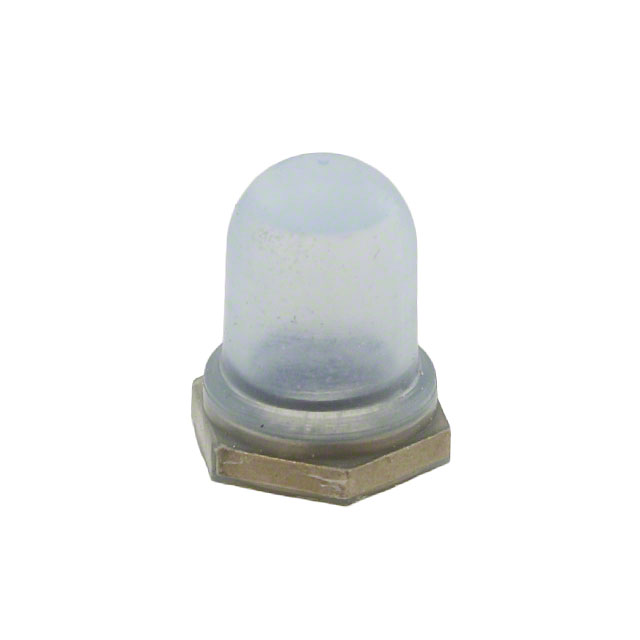

PUSHBUTTON FULL BOOT CLEAR
| Part | Thread Size (Class) | Thread Size (Nominal) | Thread Pitch (TPI) | Actuator Diameter | For Use With/Related Products | Ingress Protection Description | Ingress Protection IP Rating | Material | Type | Color | Operating Temperature (Min) | Operating Temperature (Max) | Size / Dimension Height | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 APM Hexseal | NS-2B | 0.375 in | 27 TPI | 0.3 in | Multiple Series | Dust Tight Water Resistant Waterproof | IP66 IP68 | Silicone Rubber | Full Boot Pushbutton | Clear | -70 °C | 204 °C | 0.653 in | Front of Panel |
 APM Hexseal | NEF-2B | 0.375 in | 32 TPI | 0.3 in | Multiple Series | Dust Tight Water Resistant Waterproof | IP66 IP68 | Silicone Rubber | Full Boot Pushbutton | Clear | -70 °C | 204 °C | 0.653 in | Front of Panel |
 APM Hexseal | NS-2B | 0.25 in | 40 TPI | 3.175 mm | Multiple Series | Dust Tight Water Resistant Waterproof | IP66 IP68 | Silicone Rubber | Full Boot Pushbutton | Gray | -70 °C | 204 °C | 0.531 in | Front of Panel |
