DHS4E4C Series
Manufacturer: Murata Electronics
Beta
⌘K
CAP CER 1900PF 15KV N4700 DISK
| Part | Applications | Mounting Type | Size / Dimension [diameter] | Size / Dimension [z] | Size / Dimension [diameter] | Size / Dimension [z] | Features | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Temperature Coefficient | Capacitance | Voltage - Rated | Voltage - Rated | Tolerance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

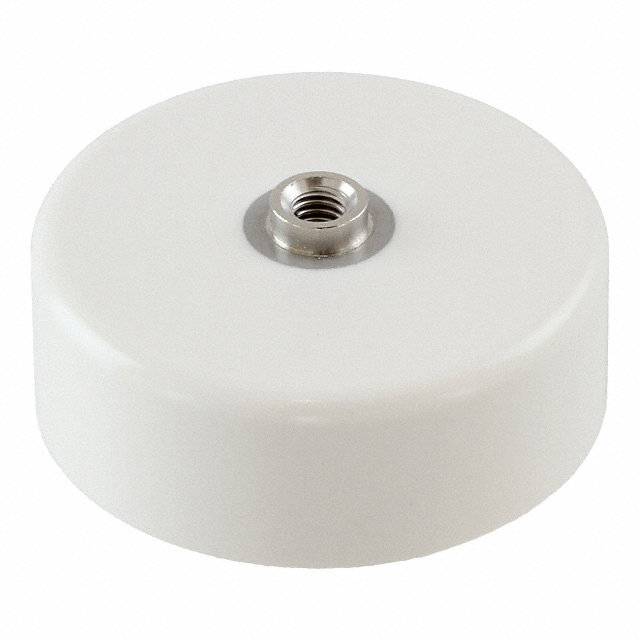

 Murata Electronics | General Purpose | Requires Holder | 1.496 in | 0.768 in | 38 mm | 19.5 mm | High Voltage | Disk Metal Fitting - Threaded | 85 °C | 20 °C | N4700 | 1900 pF | 15000 V | 15 kV | 10 % |

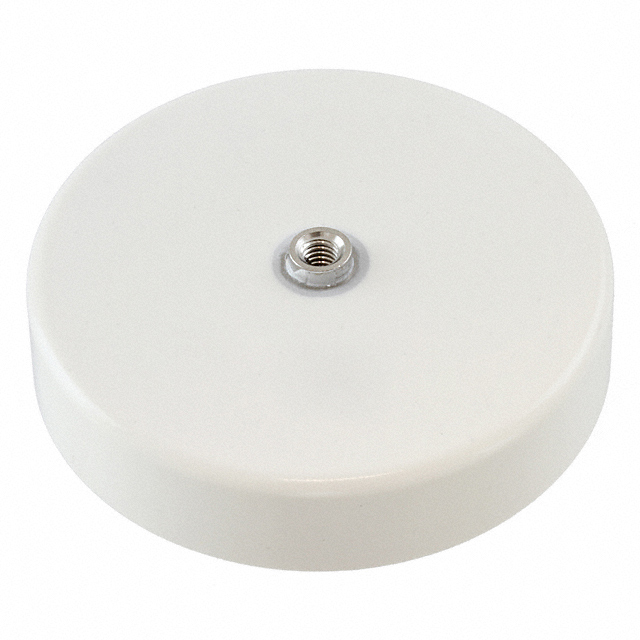

 Murata Electronics | General Purpose | Requires Holder | 2.362 in | 0.768 in | 60 mm | 19.5 mm | High Voltage | Disk Metal Fitting - Threaded | 85 °C | 20 °C | N4700 | 5300 pF | 15000 V | 15 kV | 10 % |
