SWM6-9 Series

Manufacturer: CUI Inc.

Catalog

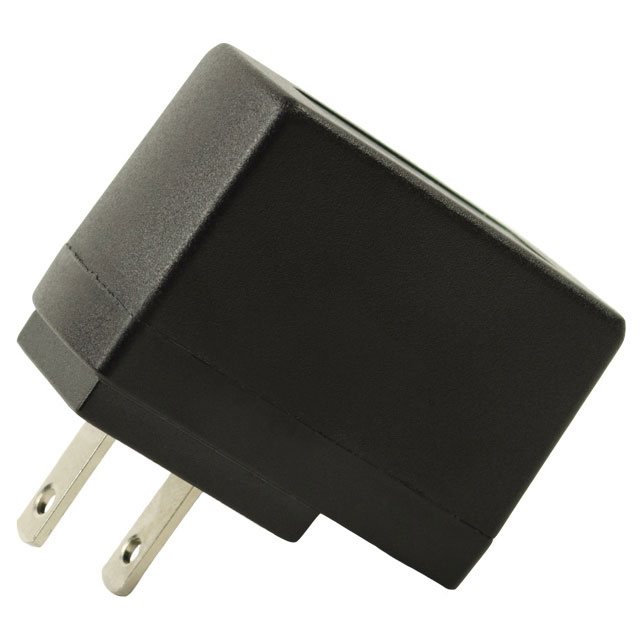

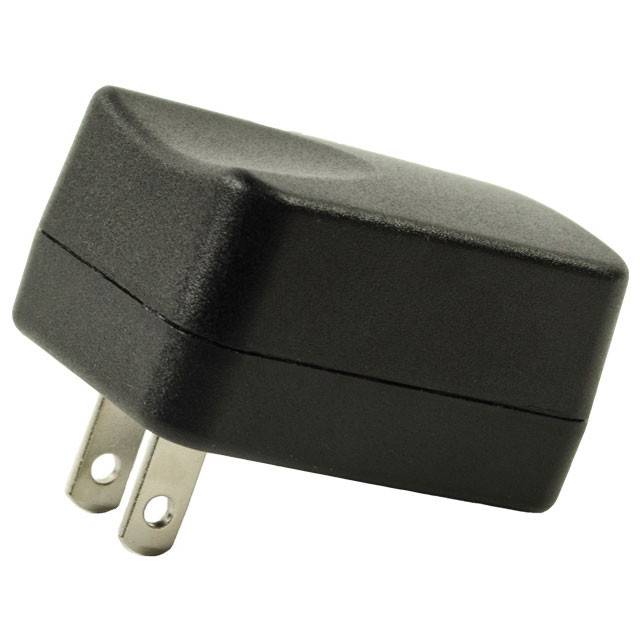

AC/DC WALL MOUNT ADAPTER 9V 6W

Part	No Load Power Consumption	Region Utilized	Power (Watts)	Standard Number	Input Type	Form	Efficiency	Voltage - Output	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Voltage - Input [Max]	Voltage - Input [Min]	Approval Agency	Applications	Input Connector	Output Connector	Current - Output (Max) [Max]	Output Connector [diameter]	Output Connector [z]	Size / Dimension [y]	Size / Dimension [z]	Cord Length	Cord Length	Polarization	Output Connector [custom]	Output Connector [custom]	Output Connector [custom]	Output Connector [x]
CUI Inc. SWM6-9-NV-I38	100 mW	North America	6 W	C22.2 No. 60601-1; 55011 Class B; 55024; 55032 Class B; 60601-1; 60950-1; 61000-3-2; 61000-3-3	Fixed Blade	Wall Mount	Level VI	9 V	40 °C	41.2 mm	1.11 in	1.62 in	28.2 mm	53.5 mm	2.11 "	264 VAC	90 VAC	CB Scheme CSA EN FCC IEC PSE UL	Medical	NEMA 1-15P	USB A Receptacle	660 mA
CUI Inc. SWM6-9-NH-P6R	100 mW	North America	6 W	C22.2 No. 60601-1; 55011 Class B; 55024; 55032 Class B; 60601-1; 60950-1; 61000-3-2; 61000-3-3	Fixed Blade	Wall Mount	Level VI	9 V	40 °C		1.44 in	0.98 in		55 mm	2.17 "	264 VAC	90 VAC	CB Scheme CSA EN FCC IEC PSE UL	Medical	NEMA 1-15P	Barrel Plug R/A	660 mA	2.5 mm 5.5 mm	9.5 mm	25 mm	36.7 mm	1.5 m	59 in	Positive Center
CUI Inc. SWM6-9-NV-P5R	100 mW	North America	6 W	C22.2 No. 60601-1; 55011 Class B; 55024; 55032 Class B; 60601-1; 60950-1; 61000-3-2; 61000-3-3	Fixed Blade	Wall Mount	Level VI	9 V	40 °C		1.44 in	0.98 in		55 mm	2.17 "	264 VAC	90 VAC	CB Scheme CSA EN FCC IEC PSE UL	Medical	NEMA 1-15P	Barrel Plug R/A	660 mA			25 mm	36.7 mm	1.5 m	59 in	Positive Center	9.5 mm	5.5 mm	2.1 mm
CUI Inc. SWM6-9-EH-P6R	75 mW	Europe	6 W	C22.2 No. 60601-1; 55011 Class B; 55024; 55032 Class B; 60601-1; 60950-1; 61000-3-2; 61000-3-3	Fixed Blade	Wall Mount	CoC Tier 2 Level VI	9 V	40 °C		1.44 in	0.98 in		55 mm	2.17 "	264 VAC	90 VAC	CB Scheme CSA EN FCC IEC PSE TUV UL	Medical	CEE 7/16	Barrel Plug R/A	660 mA	2.5 mm 5.5 mm	9.5 mm	25 mm	36.7 mm	1.5 m	59 in	Positive Center
CUI Inc. SWM6-9-NH-I38	100 mW	North America	6 W	C22.2 No. 60601-1; 55011 Class B; 55024; 55032 Class B; 60601-1; 60950-1; 61000-3-2; 61000-3-3	Fixed Blade	Wall Mount	Level VI	9 V	40 °C	27.1 mm	1.46 in	1.07 in	37.2 mm	55.6 mm	2.19 in	264 VAC	90 VAC	CB Scheme CSA EN FCC IEC PSE UL	Medical	NEMA 1-15P	USB A Receptacle	660 mA
CUI Inc. SWM6-9-EV-MUB	75 mW	Europe	6 W	C22.2 No. 60601-1; 55011 Class B; 55024; 55032 Class B; 60601-1; 60950-1; 61000-3-2; 61000-3-3	Fixed Blade	Wall Mount	CoC Tier 2 Level VI	9 V	40 °C	41.2 mm	1.11 in	1.62 in	28.2 mm	53.5 mm	2.11 "	264 VAC	90 VAC	CB Scheme CSA EN FCC IEC PSE TUV UL	Medical	CEE 7/16	USB Micro	660 mA					1.5 m	59 in
CUI Inc. SWM6-9-EV-P5R	75 mW	Europe	6 W	C22.2 No. 60601-1; 55011 Class B; 55024; 55032 Class B; 60601-1; 60950-1; 61000-3-2; 61000-3-3	Fixed Blade	Wall Mount	CoC Tier 2 Level VI	9 V	40 °C	41.2 mm	1.11 in	1.62 in	28.2 mm	53.5 mm	2.11 "	264 VAC	90 VAC	CB Scheme CSA EN FCC IEC PSE TUV UL	Medical	CEE 7/16	Barrel Plug R/A	660 mA					1.5 m	59 in	Positive Center	9.5 mm	5.5 mm	2.1 mm
CUI Inc. SWM6-9-NH-P6	100 mW	North America	6 W	C22.2 No. 60601-1; 55011 Class B; 55024; 55032 Class B; 60601-1; 60950-1; 61000-3-2; 61000-3-3	Fixed Blade	Wall Mount	Level VI	9 V	40 °C		1.44 in	0.98 in		55 mm	2.17 "	264 VAC	90 VAC	CB Scheme CSA EN FCC IEC PSE UL	Medical	NEMA 1-15P	Barrel Plug	660 mA	2.5 mm 5.5 mm		25 mm	36.7 mm	1.5 m	59 in	Positive Center				9.5 mm
CUI Inc. SWM6-9-NV-MUB	100 mW	North America	6 W	C22.2 No. 60601-1; 55011 Class B; 55024; 55032 Class B; 60601-1; 60950-1; 61000-3-2; 61000-3-3	Fixed Blade	Wall Mount	Level VI	9 V	40 °C	41.2 mm	1.11 in	1.62 in	28.2 mm	53.5 mm	2.11 "	264 VAC	90 VAC	CB Scheme CSA EN FCC IEC PSE UL	Medical	NEMA 1-15P	USB Micro	660 mA					1.5 m	59 in
CUI Inc. SWM6-9-EV-P6	75 mW	Europe	6 W	C22.2 No. 60601-1; 55011 Class B; 55024; 55032 Class B; 60601-1; 60950-1; 61000-3-2; 61000-3-3	Fixed Blade	Wall Mount	CoC Tier 2 Level VI	9 V	40 °C	41.2 mm	1.11 in	1.62 in	28.2 mm	53.5 mm	2.11 "	264 VAC	90 VAC	CB Scheme CSA EN FCC IEC PSE TUV UL	Medical	CEE 7/16	Barrel Plug	660 mA	2.5 mm 5.5 mm				1.5 m	59 in	Positive Center				9.5 mm
