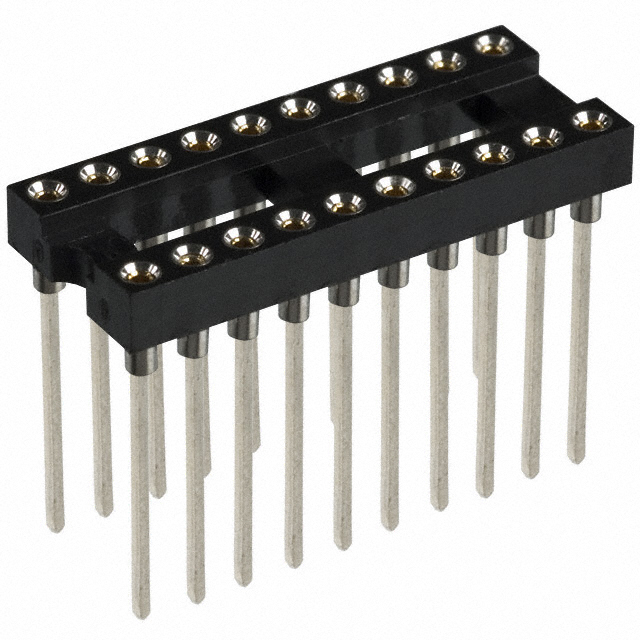

AR 20-HZ Series
Manufacturer: Assmann WSW Components
Beta
⌘K
CONN IC DIP SOCKET 20POS GOLD
| Part | Contact Resistance | Current Rating (Amps) | Material Flammability Rating | Contact Finish - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Post | Type | Type | Type | Termination | Contact Material - Mating | Contact Material - Post | Features | Number of Positions or Pins (Grid) | Housing Material | Pitch - Mating | Pitch - Mating | Pitch - Post | Pitch - Post | Mounting Type | Contact Finish Thickness - Post | Contact Finish Thickness - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Assmann WSW Components | 4 mOhm | 3 A | UL94 V-0 | Gold | -40 C | 105 ░C | Tin | 7.62 mm | 0.3 in | DIP | Wire Wrap | Beryllium Copper | Beryllium Copper | Open Frame | 20 | Polyester Thermoplastic | 0.1 " | 2.54 mm | 0.1 in | 2.54 mm | Through Hole | 200 µin | 5.08 µm |
