CONN008 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

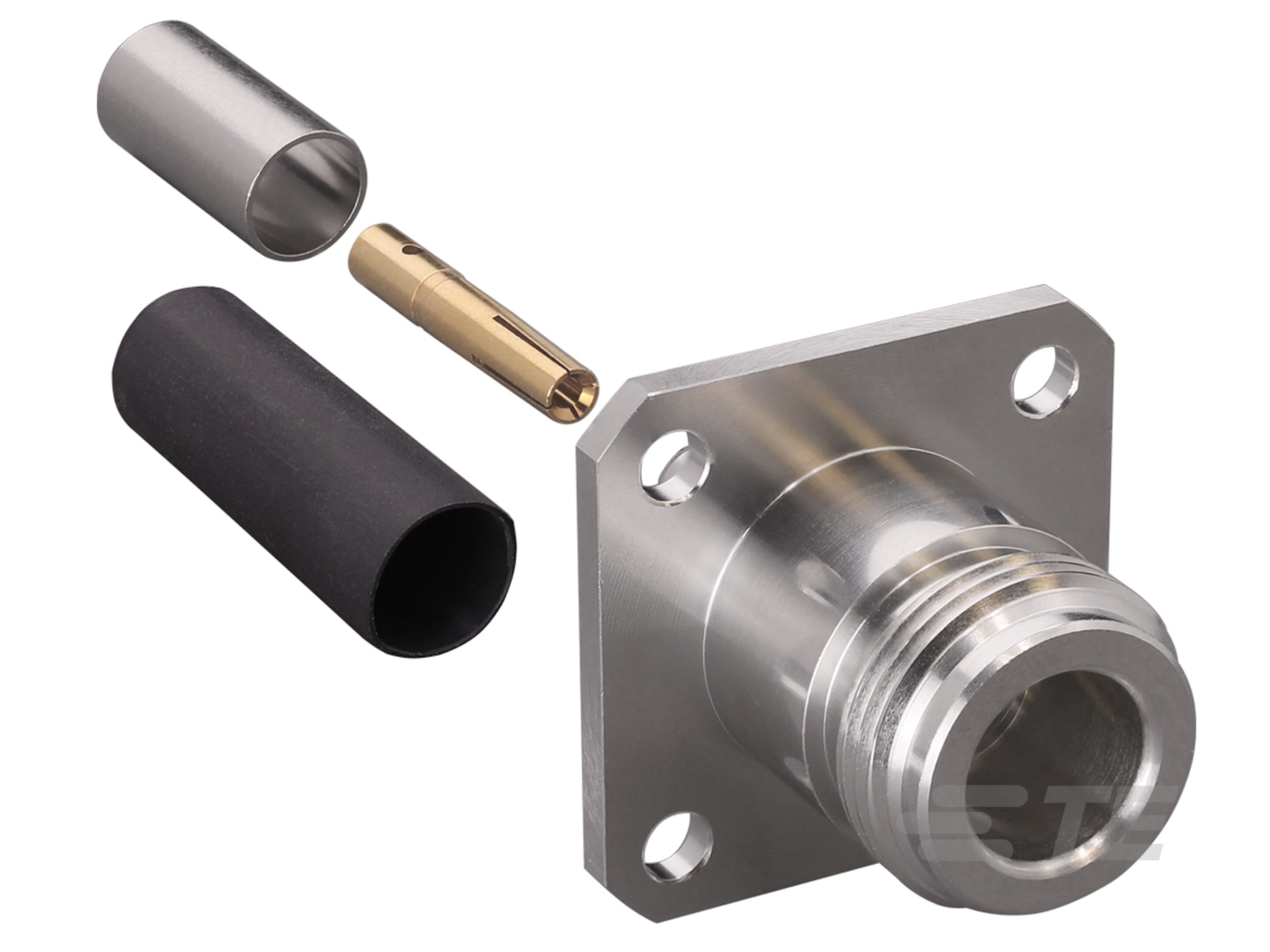

N TYPE PLUG 50 OHM PANEL MOUNT CRIMP
| Part | Center Contact Plating | Mating Cycles | Dielectric Material | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Body Material | Body Finish | Features | Frequency - Max [Max] | Fastening Type | Impedance | Housing Color | Connector Style | Number of Ports | Cable Group | Cable Group | Connector Type | Center Contact Material | Mounting Type | Shield Termination | Contact Termination | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Gold | 500 | Polytetrafluoroethylene (PTFE) | 2.5 kV | -60 °C | 165 °C | Brass | White Bronze | Low PIM | 11 GHz | Threaded | 50 Ohms | Silver | N Type | 1 | 142 223 400 | RG-55 | Female Socket Jack | Phosphor Bronze | Panel Mount | Crimp | Solder | Flange |
