YFF-PC Series
Manufacturer: TDK Corporation
Beta
⌘K

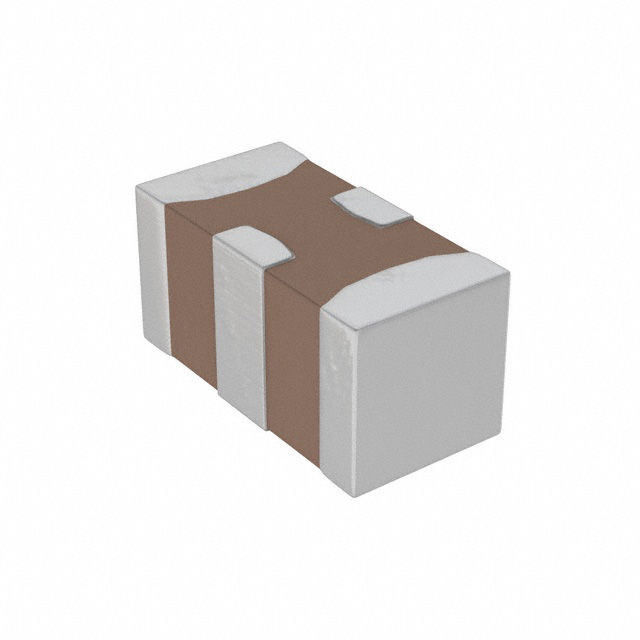

EMI FEEDTHROUGH FILTERS 0603 6.3V 0.22UF X7S 20% 4A
| Part | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Package / Case | Package / Case | Size / Dimension [y] | Current | Capacitance | DC Resistance (DCR) (Max) [Max] | Insertion Loss | Tolerance | Mounting Type | Height (Max) [z] | Height (Max) [z] | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Rated |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TDK Corporation | 0.031 in 0.032 in | 0.063 " | 1.6 mm | 0.8 mm | 0603 (1608 Metric) | 4 PC Pad | 0.8 mm | 4 A | 0.22 µF | 30 mOhm | 40 dB | 20 % | Surface Mount | 0.9 mm | 0.035 in | -55 C | 125 °C | 6.3 VDC |
