M80-521 Series
Manufacturer: Harwin Inc.
Beta
⌘K

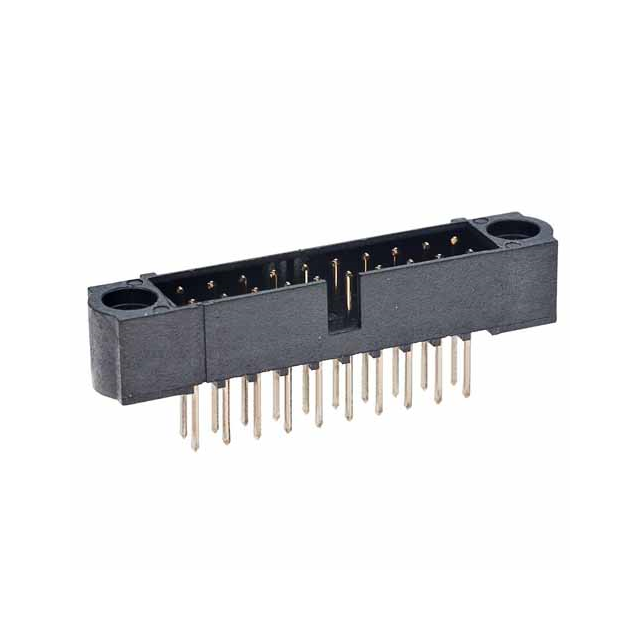

HEADER CONNECTOR,PCB MOUNT,RECEPT,26 CONTACTS,PIN,0.079 PITCH,PC TAIL TERMINAL,GUIDE SLOT ROHS COMPLIANT: YES
| Part | Mated Stacking Heights | Contact Finish Thickness - Post [custom] | Contact Finish Thickness - Post [custom] | Termination | Number of Rows [custom] | Contact Finish - Post | Features | Fastening Type | Insulation Color | Contact Material | Number of Positions | Contact Finish Thickness - Mating [custom] | Contact Finish Thickness - Mating [custom] | Contact Type | Voltage Rating | Current Rating (Amps) | Shrouding | Row Spacing - Mating | Row Spacing - Mating | Contact Finish - Mating | Pitch - Mating | Pitch - Mating | Mounting Type | Number of Positions Loaded | Connector Type | Contact Length - Post | Contact Length - Post | Contact Shape | Insulation Height | Insulation Height | Style | Operating Temperature [Min] | Operating Temperature [Max] | Material Flammability Rating | Insulation Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | 7.3 mm 7.7 mm 9.75 mm 10.75 mm 13.35 mm 14.75 mm | 118.1 µin | 3 µm | Solder | 2 | Tin | Keying Slot Mating Flange | Push-Pull | Black | Phosphor Bronze | 26 | 29.5 µin | 0.75 µm | Male Pin | 120 VDC | 2.2 A | Shrouded - 4 Wall | 2 mm | 0.079 in | Gold | 0.079 " | 2 mm | Through Hole | All | Header | 4.4 mm | 0.173 in | Circular | 5.6 mm | 0.22 in | Board to Board Cable | -55 C | 125 °C | UL94 V-0 | Polyphenylene Sulfide (PPS) Glass Filled |
Harwin Inc. | 7.3 mm 7.7 mm 9.75 mm 10.75 mm 13.35 mm 14.75 mm | 118.1 µin | 3 µm | Solder | 2 | Tin | Keying Slot Mating Flange | Push-Pull | Black | Phosphor Bronze | 20 | 29.5 µin | 0.75 µm | Male Pin | 120 VDC | 2.2 A | Shrouded - 4 Wall | 2 mm | 0.079 in | Gold | 0.079 " | 2 mm | Through Hole | All | Header | 4.4 mm | 0.173 in | Circular | 5.6 mm | 0.22 in | Board to Board Cable | -55 C | 125 °C | UL94 V-0 | Polyphenylene Sulfide (PPS) Glass Filled |
Harwin Inc. | 7.3 mm 7.7 mm 9.75 mm 10.75 mm 13.35 mm 14.75 mm | 118.1 µin | 3 µm | Solder | 2 | Tin | Keying Slot Mating Flange | Push-Pull | Black | Phosphor Bronze | 10 | 29.5 µin | 0.75 µm | Male Pin | 120 VDC | 2.2 A | Shrouded - 4 Wall | 2 mm | 0.079 in | Gold | 0.079 " | 2 mm | Through Hole | All | Header | 4.4 mm | 0.173 in | Circular | 5.6 mm | 0.22 in | Board to Board Cable | -55 C | 125 °C | UL94 V-0 | Polyphenylene Sulfide (PPS) Glass Filled |
