3420 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

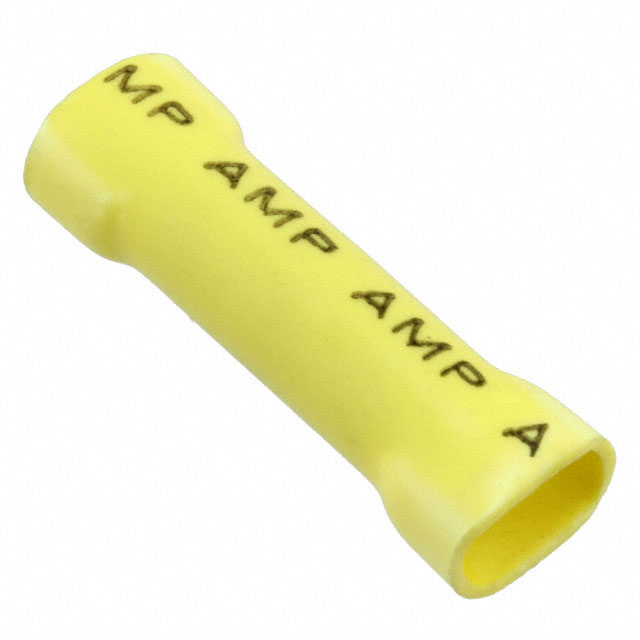

CONN SPLICE 10-12 AWG CRIMP
| Part | Number of Wire Entries | Color | Termination | Features | Terminal Type | Insulation | Wire Gauge [Max] | Wire Gauge [Min] | Mounting Type | Length - Overall [x] | Length - Overall [x] | Thickness [custom] | Thickness [custom] | Insulation Diameter [Max] | Insulation Diameter [Min] | Insulation Diameter [Min] | Insulation Diameter [Max] | Stud/Tab Size | Width - Outer Edges [y] | Width - Outer Edges [y] | Contact Material | Material - Insulation | Contact Finish | Width - Outer Edges [custom] | Width - Outer Edges [custom] | Stud/Tab Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 2 | Yellow | Crimp | Serrated Mating Area | Butt Splice Individual Openings Inline | Fully Insulated | 12 AWG | 10 AWG | ||||||||||||||||||

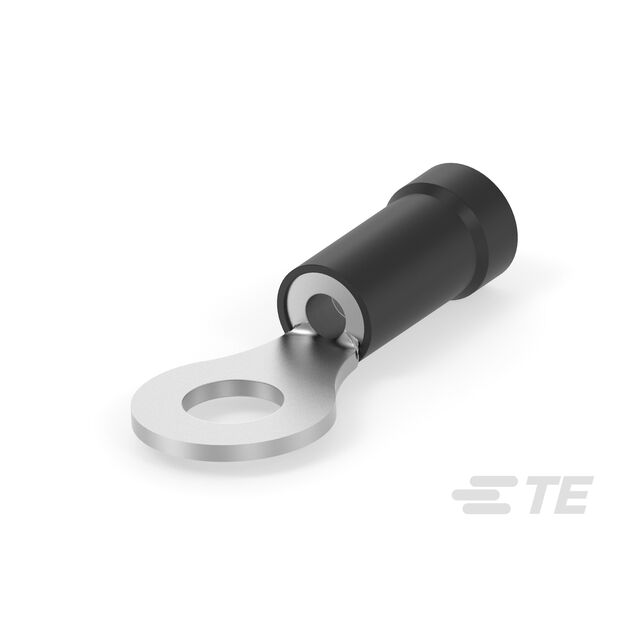

 TE Connectivity Raychem Cable Protection | Black | Crimp | Heavy Duty | Circular | Insulated | Free Hanging (In-Line) | 1.063 in | 27 mm | 0.042 in | 1.07 mm | 0.25 " | 3.81 mm | 0.15 " | 6.35 mm | M4 Stud | 8.69 mm | 0.342 in | Copper | Nylon Polyamide (PA) | Tin | ||||||
 TE Connectivity Raychem Cable Protection | Black | Crimp | Heavy Duty | Circular | Insulated | Free Hanging (In-Line) | 1.378 " | 35 mm | 0.042 in | 1.07 mm | 0.25 " | 3.81 mm | 0.15 " | 6.35 mm | Copper | Nylon Polyamide (PA) | Tin | 13.49 mm | 0.531 " | 0.25 Stud |
