9234-0 Series

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Termination	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Contact Finish Thickness	Contact Finish Thickness	Tail Type	Length - Overall [x]	Length - Overall [x]	Contact Material	Socket Depth	Socket Depth	Contact Finish	Flange Diameter [diameter]	Flange Diameter [diameter]
Mill-Max Manufacturing Corp. 9234-0-15-80-30-84-10-0	-55 C	125 °C	1.32 mm	0.052 in	Solder	0.64 mm	0.015 "	0.025 in	0.38 mm	2.54 µm	100 µin	No Tail	3.96 mm	0.156 in	Beryllium Copper	3.51 mm	0.138 in	Tin	0.072 "	1.83 mm

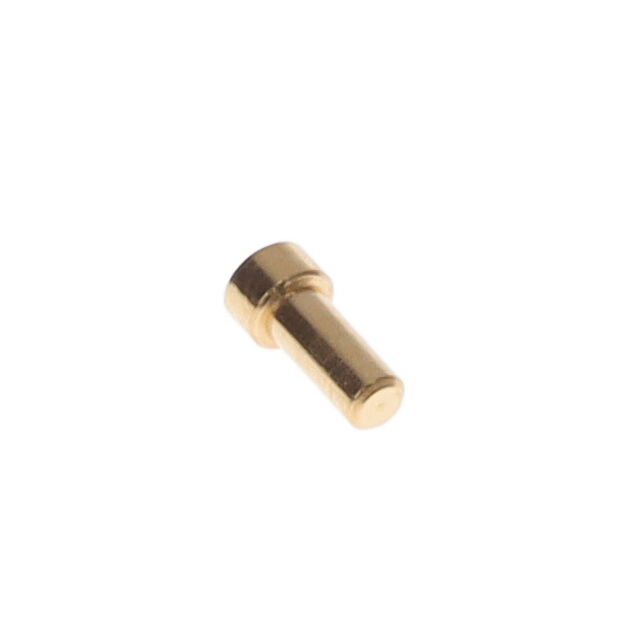

Mill-Max Manufacturing Corp. 9234-0-15-15-30-14-10-0	-55 C	125 °C	1.32 mm	0.052 in	Solder	0.64 mm	0.015 "	0.025 in	0.38 mm	0.25 Ám	10 Áin	No Tail	3.96 mm	0.156 in	Beryllium Copper	3.51 mm	0.138 in	Gold	0.072 "	1.83 mm
Mill-Max Manufacturing Corp. 9234-0-15-15-30-27-10-0	-55 C	125 °C	1.32 mm	0.052 in	Solder	0.64 mm	0.015 "	0.025 in	0.38 mm	0.76 Ám	30 Áin	No Tail	3.96 mm	0.156 in	Beryllium Copper	3.51 mm	0.138 in	Gold	0.072 "	1.83 mm
Mill-Max Manufacturing Corp. 9234-0-15-80-30-27-10-0	-55 C	125 °C	1.32 mm	0.052 in	Solder	0.64 mm	0.015 "	0.025 in	0.38 mm	0.76 Ám	30 Áin	No Tail	3.96 mm	0.156 in	Beryllium Copper	3.51 mm	0.138 in	Gold	0.072 "	1.83 mm
