2132230 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

CONN SHROUDED HEADER HDR 5POWER POS 2.5MM SOLDER ST TOP ENTRY THRU-HOLE BAG

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows	Mounting Type	Insulation Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Mating [x]	Contact Length - Mating [x]	Contact Length - Post [x]	Contact Length - Post [x]	Style	Termination	Number of Positions Loaded	Contact Material	Insulation Color	Contact Shape	Voltage Rating	Pitch - Mating	Pitch - Mating	Fastening Type	Applications	Connector Type	Insulation Height [z]	Insulation Height [z]	Material Flammability Rating	Features	Contact Type	Shrouding	Current Rating (Amps)	Contact Finish - Post	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions
TE Connectivity Raychem Cable Protection 2132230-5	2.03 µm	80 µin	1	Through Hole	Polyamide (PA66) Nylon 6/6	2.03 µm	80 µin	0.122 in	3.1 mm	0.134 in	3.4 mm	Board to Cable/Wire	Kinked Pin Solder	All	Copper Alloy	White	Circular	250 VAC	2.5 mm	0.098 in	Friction Lock	General Purpose Industrial Lighting	Header	0.346 in	8.8 mm	UL94 V-0	Board Guide	Male Pin	Shrouded - 4 Wall	4.2 A	Tin	105 ░C	-55 °C

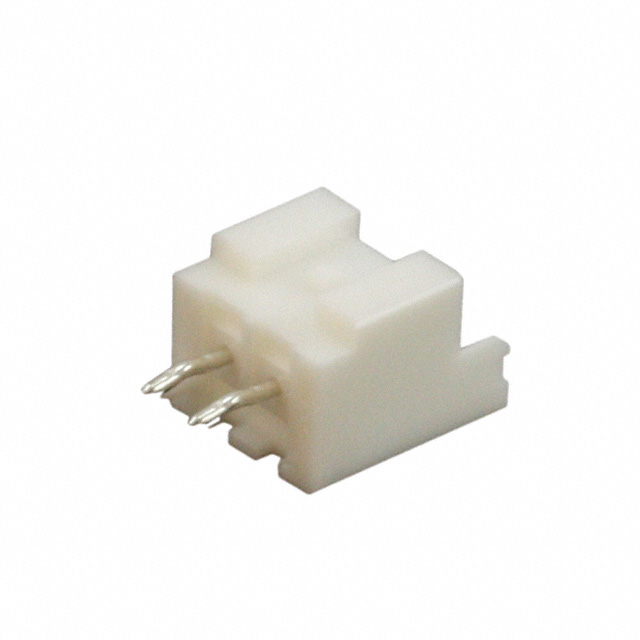

TE Connectivity Raychem Cable Protection 2132230-2	2.03 µm	80 µin	1	Through Hole	Polyamide (PA66) Nylon 6/6	2.03 µm	80 µin	0.122 in	3.1 mm	0.134 in	3.4 mm	Board to Cable/Wire	Kinked Pin Solder	All	Copper Alloy	White	Circular	250 VAC	2.5 mm	0.098 in	Friction Lock	General Purpose Industrial Lighting	Header	0.346 in	8.8 mm	UL94 V-0	Board Guide	Male Pin	Shrouded - 4 Wall	4.2 A	Tin	105 ░C	-55 °C	2

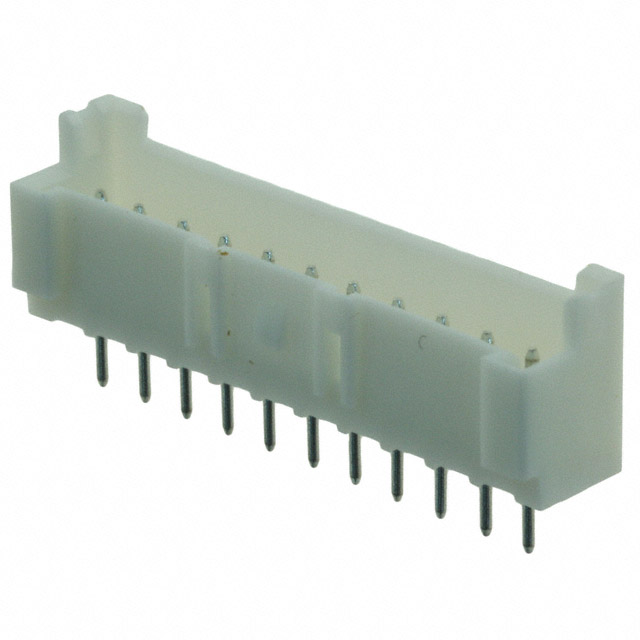

TE Connectivity Raychem Cable Protection 1-2132230-1	2.03 µm	80 µin	1	Through Hole	Polyamide (PA66) Nylon 6/6	2.03 µm	80 µin	0.122 in	3.1 mm	0.134 in	3.4 mm	Board to Cable/Wire	Kinked Pin Solder	All	Copper Alloy	White	Circular	250 VAC	2.5 mm	0.098 in	Friction Lock	General Purpose Industrial Lighting	Header	0.346 in	8.8 mm	UL94 V-0	Board Guide	Male Pin	Shrouded - 4 Wall	4.2 A	Tin	105 ░C	-55 °C	11

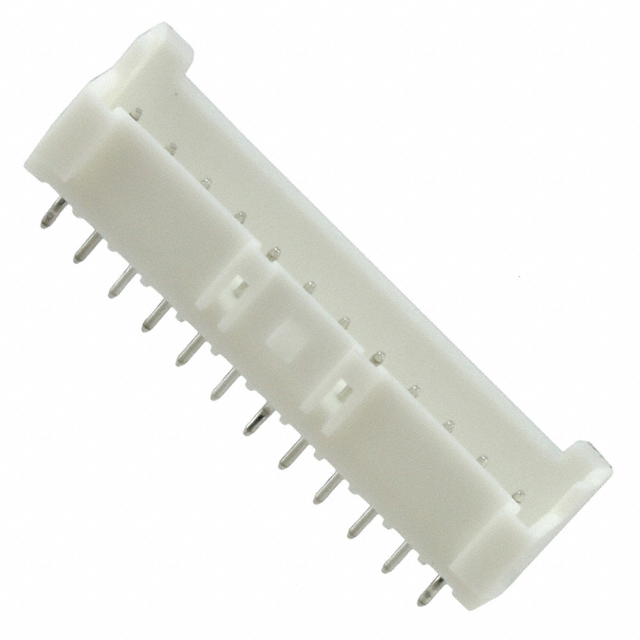

TE Connectivity Raychem Cable Protection 1-2132230-2	2.03 µm	80 µin	1	Through Hole	Polyamide (PA66) Nylon 6/6	2.03 µm	80 µin	0.122 in	3.1 mm	0.134 in	3.4 mm	Board to Cable/Wire	Kinked Pin Solder	All	Copper Alloy	White	Circular	250 VAC	2.5 mm	0.098 in	Friction Lock	General Purpose Industrial Lighting	Header	0.346 in	8.8 mm	UL94 V-0	Board Guide	Male Pin	Shrouded - 4 Wall	4.2 A	Tin	105 ░C	-55 °C	12
