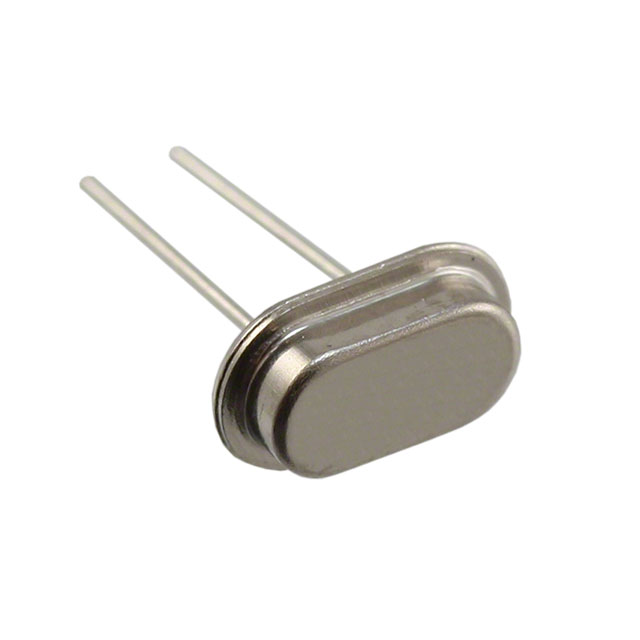

HC-46X Series
Manufacturer: ECS Inc.
Beta
⌘K
CRYSTALS 16MHZ 20PF 50PPM -10C +70C
| Part | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Frequency Stability | Load Capacitance | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Operating Mode | Type | Operating Temperature [Max] | Operating Temperature [Min] | Frequency | Package / Case | Frequency Tolerance | ESR (Equivalent Series Resistance) | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ECS Inc. | 6.6 mm 6.8 mm | 0.26 in 0.268 in | 4 mm | 0.157 " | 50 ppm | 20 pF | 1.8 mm | 0.071 in | Fundamental | MHz Crystal | 70 °C | -10 °C | 16 MHz | HC-46/X | 30 ppm | 50 Ohms | Through Hole |
