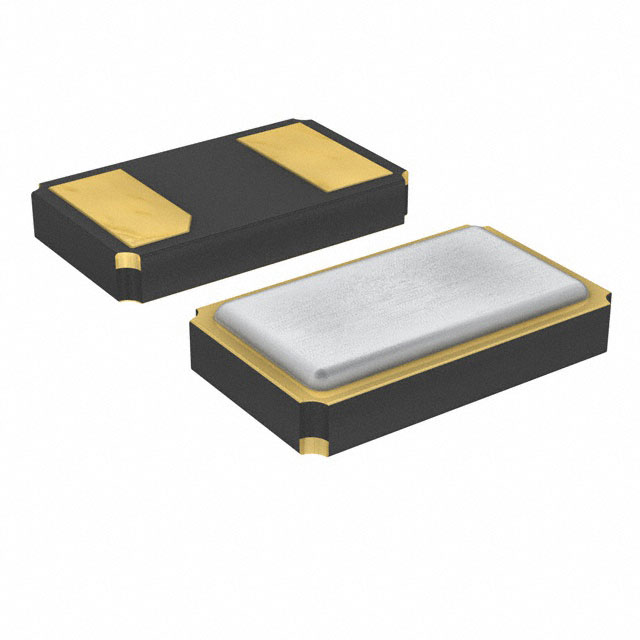

CDX-1074 Series
Manufacturer: ECS Inc.
Beta
⌘K
CRYSTALS 32.768KHZ 9PF -60C +105C
| Part | Operating Mode | Operating Temperature [Max] | Operating Temperature [Min] | Frequency | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | ESR (Equivalent Series Resistance) | Type | Frequency Tolerance | Mounting Type | Package / Case | Supplier Device Package | Load Capacitance | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ECS Inc. | Fundamental | 85 °C | -40 C | 0.032768 MHz | 0.6 mm | 0.024 in | 60 kOhms | kHz Crystal (Tuning Fork) | 20 ppm | Surface Mount | 2-SMD No Lead | 2-SMD (2x1.2) | 9 pF | 0.079 in | 0.047 in | 1.2 mm | 2 mm |
