EP-SGL-M20 Series

Catalog

CABLE GLAND 10-14MM M20 POLYAMID

Part	Color	Type	Outside Cable Diameter (Max)	Outside Cable Diameter (Max) [Max] [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Thread Length	Thread Length	Thread Size	Ingress Protection	Includes	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]
TE Connectivity AMP Connectors EP-SGL-M20-GR-H	Gray	Cable Gland	14 mm	0.551 in	-20 ░C	100 °C	10 mm	0.394 "	0.394 in	10 mm	M20x1.5	IP68 - Dust Tight Waterproof	Seal

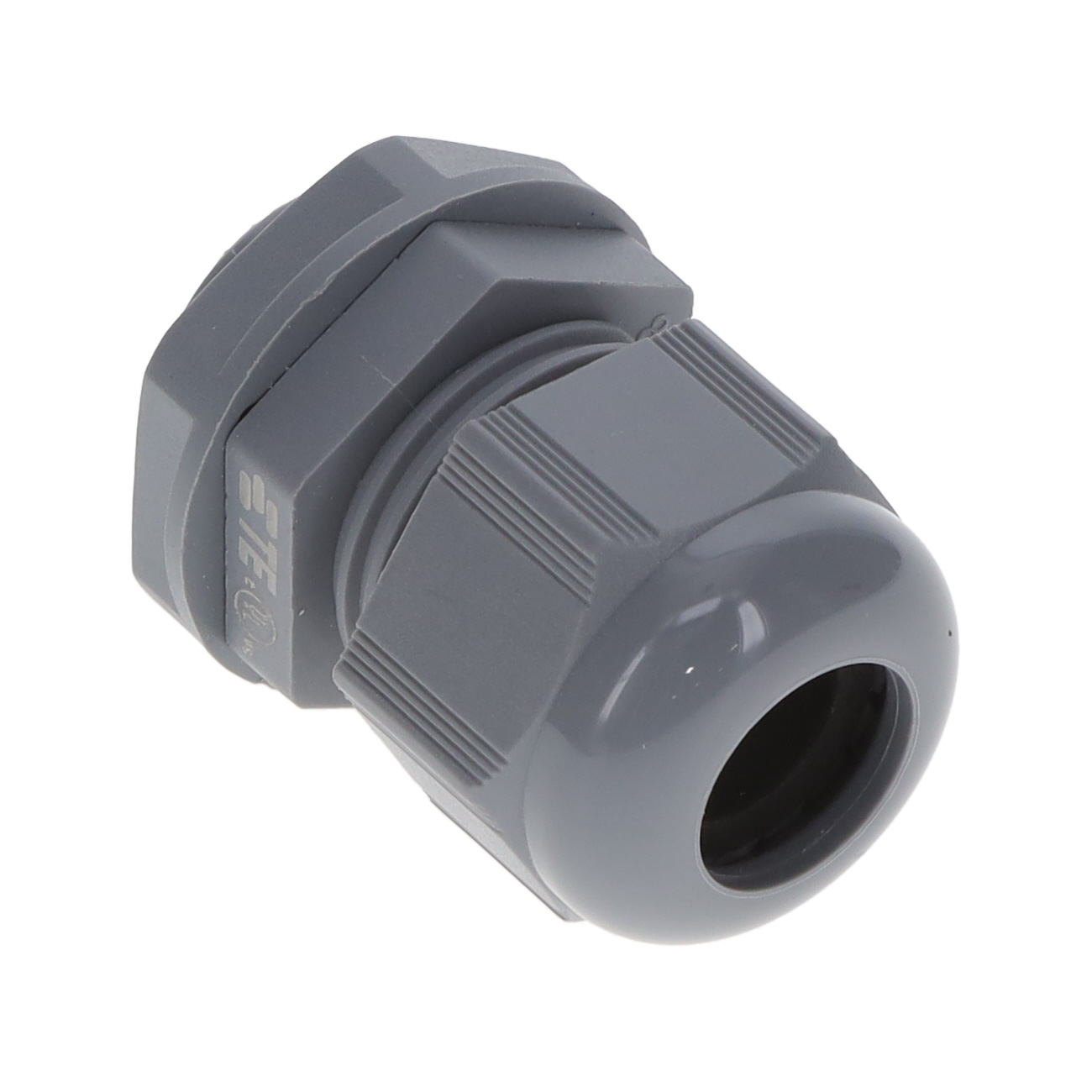

TE Connectivity AMP Connectors EP-SGL-M20-GR-C	Gray	Cable Gland		0.472 in	-20 ░C	100 °C			0.394 in	10 mm	M20x1.5	IP68 - Dust Tight Waterproof	Seal	12 mm	6 mm	0.236 in

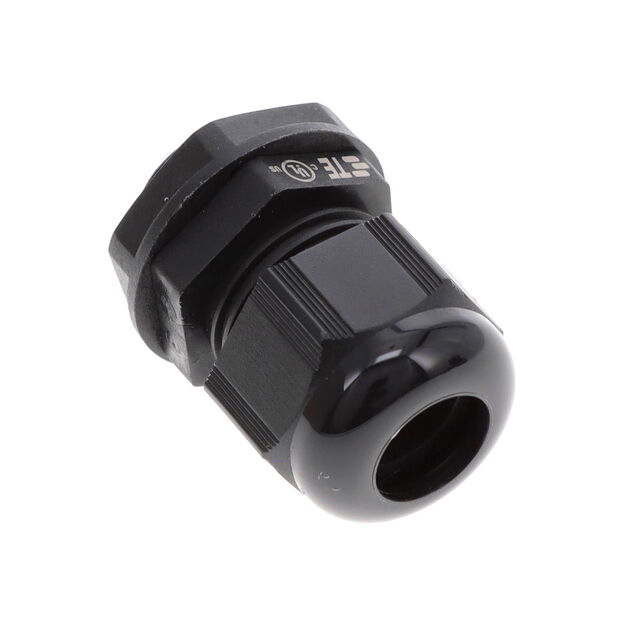

TE Connectivity AMP Connectors EP-SGL-M20-BL-C	Black	Cable Gland		0.472 in	-20 ░C	100 °C			0.394 in	10 mm	M20x1.5	IP68 - Dust Tight Waterproof	Seal	12 mm	6 mm	0.236 in
