SZR-MY2 Series

Catalog

RELAY GEN PURPOSE DPDT 5A 24V

Part	Coil Resistance	Termination Style	Release Time	Relay Type	Coil Type	Coil Current	Contact Material	Switching Voltage	Load - Max Switching	Mounting Type	Coil Voltage	Must Release Voltage	Must Operate Voltage	Contact Rating (Current)	Approval Agency	Operate Time	Contact Form	Features
Honeywell Sensing and Productivity Solutions SZR-MY2-1-AC24V	180 Ohms	Plug In	20 ms	General Purpose	Non Latching	133 mA	Silver Cadmium Oxide (AgCdO)	125 VDC 250 VAC	625 W 1250 VA	Socketable	24 VAC	7.2 VAC	18 VAC	5 A	CE CSA UR	20 ms	DPDT (2 Form C)
Honeywell Sensing and Productivity Solutions SZR-MY2-N1-AC24V

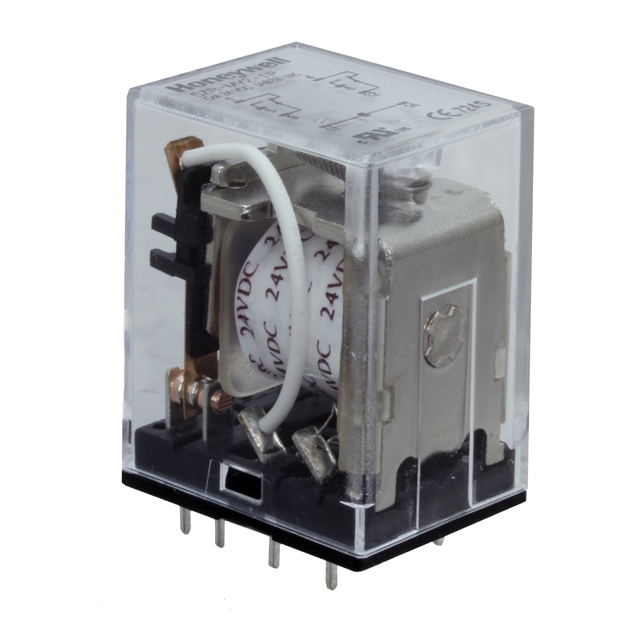

Honeywell Sensing and Productivity Solutions SZR-MY2-1P-DC24V	650 Ohms	PC Pin	20 ms	General Purpose	Non Latching	36.9 mA	Silver (Ag)	125 VDC 250 VAC	625 W 1250 VA	Through Hole	24 VDC	2.4 VDC	18 VDC	5 A	CE CSA UR	20 ms	DPDT (2 Form C)
Honeywell Sensing and Productivity Solutions SZR-MY2-1-DC12V	160 Ohms	Plug In	20 ms	General Purpose	Non Latching	0.075 A	Silver (Ag)	125 VDC 250 VAC	625 W 1250 VA	Socketable	12 VDC	1.2 VDC	9 VDC	5 A	CE CSA UR	20 ms	DPDT (2 Form C)
Honeywell Sensing and Productivity Solutions SZR-MY2-D1-DC24V	650 Ohms	Plug In	20 ms	General Purpose	Non Latching	36.9 mA	Silver (Ag)	125 VDC 250 VAC	625 W 1250 VA	Socketable	24 VDC	2.4 VDC	18 VDC	5 A	CE CSA UR	20 ms	DPDT (2 Form C)	Diode
Honeywell Sensing and Productivity Solutions SZR-MY2-1P DC24V-E	650 Ohms	PC Pin	20 ms	General Purpose	Non Latching	36.9 mA	Silver (Ag)	125 VDC 250 VAC	625 W 1250 VA	Through Hole	24 VDC	2.4 VDC	18 VDC	5 A	CE CSA UR	20 ms	DPDT (2 Form C)
