REC20-S_D Series

Isolated DC/DC Converters - Through Hole 20W 36-75Vin 5.1Vout 4000mA

Manufacturer: Recom Power

Catalog

Isolated DC/DC Converters - Through Hole 20W 36-75Vin 5.1Vout 4000mA

Catalog

Isolated DC/DC Converters - Through Hole 20W 36-75Vin 5.1Vout 4000mA

Part	Voltage - Input (Min) [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Max) [Max]	Current - Output (Max)	Voltage - Isolation	Features	Size / Dimension	Voltage - Output 1	Efficiency	Mounting Type	Applications	Power (Watts)	Number of Outputs	Type	Package / Case	Control Features	Current - Output (Max) [Max]	Current - Output (Max)	Voltage - Output 2

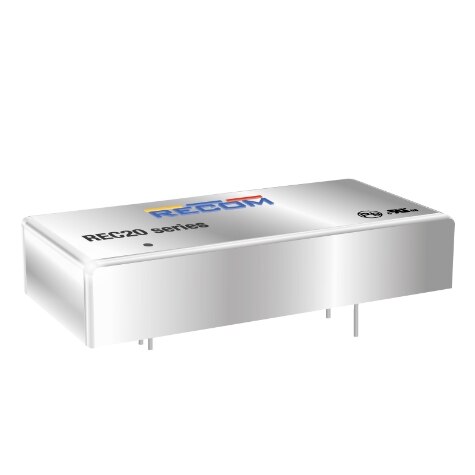

Recom Power REC20-123.4S	9 V	-40 C	100 °C	18 V	5 A	1.6 kV	OVP Remote On/Off SCP UVLO	0.4 in 10.2 mm 25.4 mm 50.8 mm	3.4 V	85 %	Through Hole	ITE (Commercial)	20 W	1	Isolated Module	6-DIP Module	Active High Enable
Recom Power REC20-2412S	18 V	-40 C	100 °C	36 V		1.6 kV	OVP Remote On/Off SCP UVLO	0.4 in 10.2 mm 25.4 mm 50.8 mm	12 V	89 %	Through Hole	ITE (Commercial)	20 W	1	Isolated Module	6-DIP Module	Active High Enable	1.67 A
Recom Power REC20-2412D	18 V	-40 C	100 °C	36 V	835 mA	1.6 kV	OVP Remote On/Off SCP UVLO	0.4 in 10.2 mm 25.4 mm 50.8 mm	12 V		Through Hole	ITE (Commercial)	20 W	2	Isolated Module	6-DIP Module	Active High Enable		835 mA	-12 V
Recom Power REC20-4815D	36 V	-40 C	100 °C	75 V	670 mA	1.6 kV	OVP Remote On/Off SCP UVLO	0.4 in 10.2 mm 25.4 mm 50.8 mm	15 V	90.5 %	Through Hole	ITE (Commercial)	20 W	2	Isolated Module	6-DIP Module	Active High Enable		670 mA	-15 V
Recom Power REC20-2415D	18 V	-40 C	100 °C	36 V	670 mA	1.6 kV	OVP Remote On/Off SCP UVLO	0.4 in 10.2 mm 25.4 mm 50.8 mm	15 V		Through Hole	ITE (Commercial)	20 W	2	Isolated Module	6-DIP Module	Active High Enable		670 mA	-15 V
Recom Power REC20-4812S	36 V	-40 C	100 °C	75 V		1.6 kV	OVP Remote On/Off SCP UVLO	0.4 in 10.2 mm 25.4 mm 50.8 mm	12 V	89 %	Through Hole	ITE (Commercial)	20 W	1	Isolated Module	6-DIP Module	Active High Enable	1.67 A
Recom Power REC20-485.1S	36 V	-40 C	100 °C	75 V		1.6 kV	OVP Remote On/Off SCP UVLO	0.4 in 10.2 mm 25.4 mm 50.8 mm	5.1 V	89 %	Through Hole	ITE (Commercial)	20 W	1	Isolated Module	6-DIP Module	Active High Enable	4 A
Recom Power REC20-1212S	9 V	-40 C	100 °C	18 V		1.6 kV	OVP Remote On/Off SCP UVLO	0.4 in 10.2 mm 25.4 mm 50.8 mm	12 V	88.5 %	Through Hole	ITE (Commercial)	20 W	1	Isolated Module	6-DIP Module	Active High Enable	1.67 A
Recom Power REC20-4812D	36 V	-40 C	100 °C	75 V	835 mA	1.6 kV	OVP Remote On/Off SCP UVLO	0.4 in 10.2 mm 25.4 mm 50.8 mm	12 V		Through Hole	ITE (Commercial)	20 W	2	Isolated Module	6-DIP Module	Active High Enable		835 mA	-12 V
Recom Power REC20-1215D	9 V	-40 C	100 °C	18 V	670 mA	1.6 kV	OVP Remote On/Off SCP UVLO	0.4 in 10.2 mm 25.4 mm 50.8 mm	15 V	89 %	Through Hole	ITE (Commercial)	20 W	2	Isolated Module	6-DIP Module	Active High Enable		670 mA	-15 V
