RSF40 Series

Catalog

SENSOR LEVEL SWITCH SINGLE FLOAT

Part	Operating Temperature [Max]	Operating Temperature [Min]	Output Configuration	Output Type	Material - Housing & Prism	Type	Current	Minimum Liquid Specific Gravity [Min]	Mounting Type	Switch Actuation Level	Switch Actuation Level	Voltage Rating
Sensata-Crydom RSF46H100RF	120 °C	-10 °C	SPST-NC/NO	Switch (Single Float)	Polyphenylene Sulphide (PPS)	Liquid	1 A	0.85	M16x2 Thread Panel Mount	0.945 in	24 mm	300 VDC 300 VAC
Sensata-Crydom RSF48HFP	100 °C	-20 ░C	SPST-NC/NO	Switch (Single Float)	Polypropylene (PP)	Liquid	1 A	0.8	M16x2 Thread Panel Mount	0.787 in	20 mm	300 VDC 300 VAC
Sensata-Crydom RSF47HGP	105 ░C	-10 °C	SPST-NC/NO	Switch (Single Float)	Polyvinylidene Fluoride (PVDF)	Liquid	1 A		M16x2 Thread Panel Mount	1.654 in	42 mm	120 VDC 240 VAC

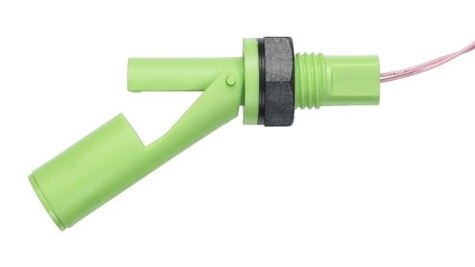

Sensata-Crydom RSF47H100GG	105 ░C	-10 °C	SPST-NC/NO	Switch (Single Float)	Polyvinylidene Fluoride (PVDF)	Liquid	1 A		M16x2 Thread Panel Mount	1.654 in	42 mm	120 VDC 240 VAC
Sensata-Crydom RSF47HFP	105 ░C	-10 °C	SPST-NC/NO	Switch (Single Float)	Polyvinylidene Fluoride (PVDF)	Liquid	1 A		M16x2 Thread Panel Mount	1.654 in	42 mm	120 VDC 240 VAC
Sensata-Crydom RSF46YFP	120 °C	-10 °C	SPST-NC/NO	Switch (Single Float)	Polyphenylene Sulphide (PPS)	Liquid	600 mA	0.85	M16x2 Thread Panel Mount	0.945 in	24 mm	120 VDC 240 VAC
Sensata-Crydom RSF48H100RF	100 °C	-20 ░C	SPST-NC/NO	Switch (Single Float)	Polypropylene (PP)	Liquid	1 A	0.8	M16x2 Thread Panel Mount	0.787 in	20 mm	300 VDC 300 VAC

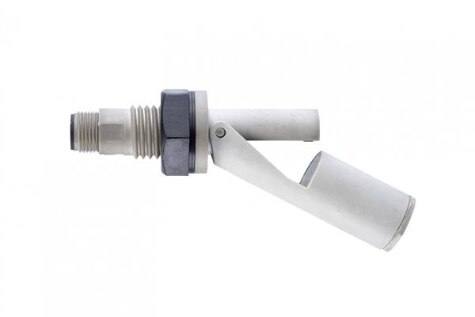

Sensata-Crydom RSF46HFP	120 °C	-10 °C	SPST-NC/NO	Switch (Single Float)	Polyphenylene Sulphide (PPS)	Liquid	600 mA	0.85	M16x2 Thread Panel Mount	0.945 in	24 mm	300 VDC 300 VAC
Sensata-Crydom RSF44HFP	100 °C	-20 ░C	SPST-NC/NO	Switch (Single Float)	Polypropylene (PP)	Liquid	1 A	0.85	M16x2 Thread Panel Mount	0.787 in	20 mm	300 VDC 300 VAC

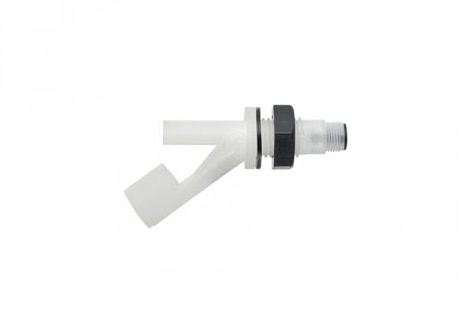

Sensata-Crydom RSF44YFP	100 °C	-20 ░C	SPST-NC/NO	Switch (Single Float)	Polypropylene (PP)	Liquid	600 mA	0.85	M16x2 Thread Panel Mount	0.787 in	20 mm	120 VDC 240 VAC
