FS150R17 Series

Manufacturer: INFINEON

Catalog

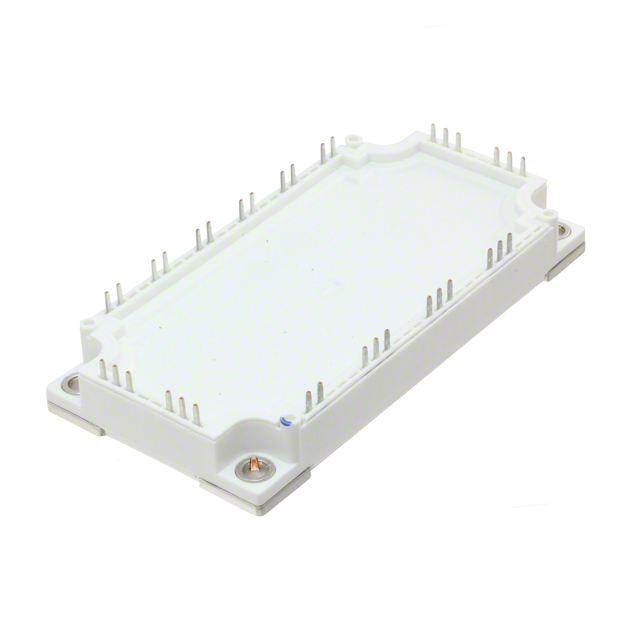

THE FS150R17PE4 IS A SIXPACK IGBT4 - E4 MODULE IN A ECONOPACK™ 4 HOUSING FOR INDUSTRIAL APPLICATIONS UP TO 1700 V AND 150 A.

Part	Operating Temperature [Min]	Operating Temperature [Max]	Current - Collector (Ic) (Max) [Max]	Current - Collector Cutoff (Max) [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	Mounting Type	Input	Input Capacitance (Cies) @ Vce	Power - Max [Max]	IGBT Type	Supplier Device Package	Vce(on) (Max) @ Vge, Ic [Max]	Package / Case	Configuration	Vce(on) (Max) @ Vge, Ic
INFINEON FS150R17PE4BOSA1	-40 C	150 °C	150 A	1 mA	1700 V	Chassis Mount	Standard	13.5 nF	835 W	Trench Field Stop	Module	2.3 V	Module	Three Phase Inverter
INFINEON FS150R17KE3GBOSA1	-40 C	125 °C	240 A	3 mA	1700 V	Chassis Mount	Standard	13.5 nF	1050 W	Trench Field Stop	Module		Module	Full Bridge	2.45 V
INFINEON FS150R17N3E4BOSA1	-40 C	150 °C	150 A	1 mA	1700 V	Chassis Mount	Standard	13.5 nF	835 W	Trench Field Stop	Module	2.3 V	Module	Three Phase Inverter
