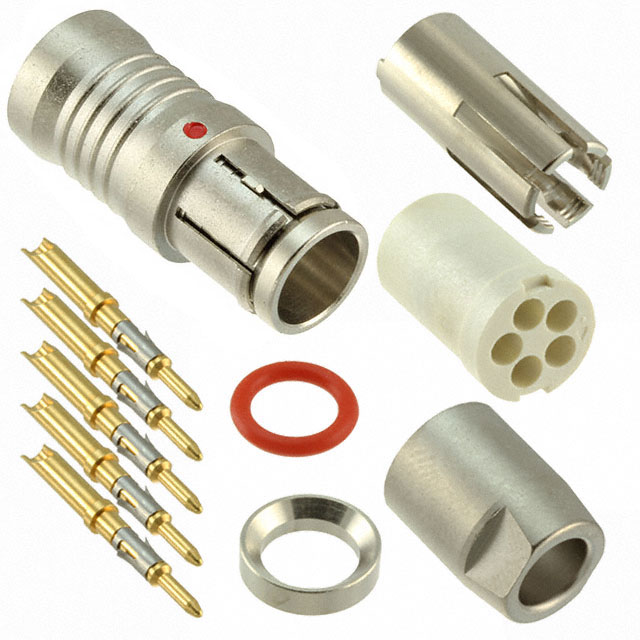

HS2C5M Series
Manufacturer: Switchcraft Inc.
Beta
⌘K
CONN CIRCULAR PIN 5 POS CRIMP ST CABLE MOUNT 5 TERMINAL 1 PORT BULK
| Part | Insert Material | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Contact Finish - Mating | Ingress Protection | Orientation | Applications | Color | Primary Material | Termination | Material Flammability Rating | Contact Material | Connector Type | Shell Finish | Voltage Rating | Shell Material | Fastening Type | Shielding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Switchcraft Inc. | Liquid Crystal Polymer (LCP) | 5.49 mm | 4.57 mm | 0.18 in | 0.216 in | 135 °C | -40 °C | Free Hanging (In-Line) | Gold | IP66 IP67 IP68 | Keyed | Agriculture Audio General Medical Testing Equipment & Measurement | Silver | Metal | Crimp Solder Cup | UL94 HF-1 | Copper Alloy | Male Pins Plug | Electroless Nickel | 125 VAC | Copper Alloy | Push-Pull | Shielded |
