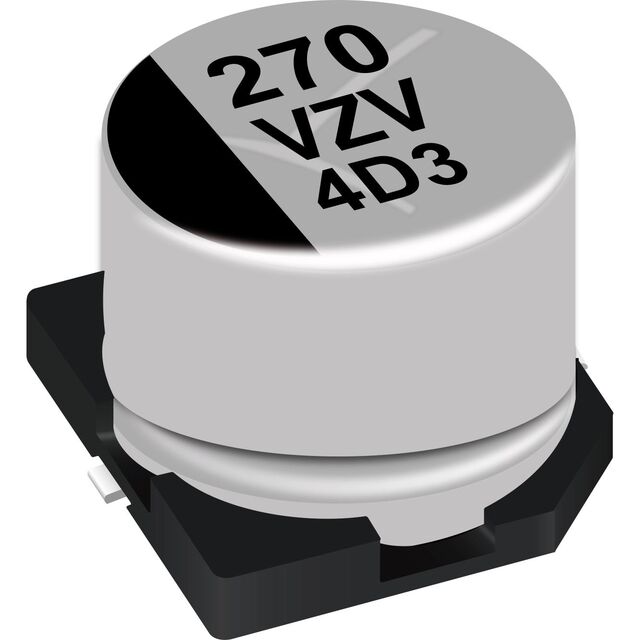

ZV Series
Manufacturer: Panasonic Electronic Components
Beta
⌘K
ALUMINUM ORGANIC POLYMER CAPACITORS SMD 63V 56UF 125DEGC 4000H AEC-Q200
| Part | Mounting Type | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | ESR (Equivalent Series Resistance) | Ratings | Surface Mount Land Size [x] | Surface Mount Land Size [y] | Surface Mount Land Size [y] | Surface Mount Land Size [x] | Tolerance | Applications | Package / Case | Size / Dimension [diameter] | Size / Dimension [diameter] | Ripple Current @ Low Frequency | Capacitance | Ripple Current @ High Frequency | Lifetime @ Temp. | Type | Voltage - Rated | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Electronic Components | Surface Mount | 0.413 " | 10.5 mm | 16 mOhm | AEC-Q200 | 0.406 " | 0.406 in | 10.3 mm | 10.3 mm | 20 % | Automotive | Radial Can - SMD | 0.394 in | 10 mm | 600 mA | 56 µF | 4 A | 4000 Hrs | Hybrid | 63 V | -55 C | 135 °C |
