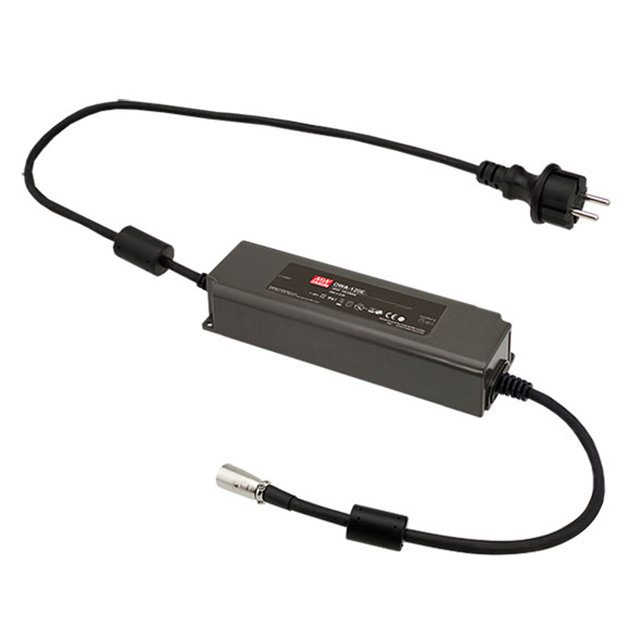

OWA-120E Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
AC/DC DESKTOP ADAPTER 24V 120W
| Part | Cord Length | Cord Length | Current - Output (Max) | Output Connector | Efficiency | Approval Agency | Input Type | Power (Watts) | Region Utilized | Operating Temperature [Max] | Operating Temperature [Min] | No Load Power Consumption | Applications | Input Connector | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Voltage - Input [Min] | Voltage - Input [Max] | Form | Voltage - Output | Current - Output (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | 11.8 " | 0.3 m | 5 A | Power DIN 4 Pin | Level VI | CB CE GS | Cord | 120 W | Europe | 70 °C | -40 C | 150 mW | ITE (Commercial) | CEE 7/7 | 37.5 mm | 191 mm | 2.48 in | 63 mm | 7.52 in | 1.48 " | 180 VAC | 264 VAC | Desktop (Class II) | 24 V | |
MEAN WELL USA Inc. | 11.8 " | 0.3 m | Power DIN 4 Pin | Level VI | CB CE GS | Cord | 124 W | Europe | 70 °C | -40 C | 150 mW | ITE (Commercial) | CEE 7/7 | 37.5 mm | 191 mm | 2.48 in | 63 mm | 7.52 in | 1.48 " | 180 VAC | 264 VAC | Desktop (Class II) | 54 V | 2.3 A | |
MEAN WELL USA Inc. | 11.8 " | 0.3 m | Power DIN 4 Pin | Level VI | CB CE GS | Cord | 122 W | Europe | 70 °C | -40 C | 150 mW | ITE (Commercial) | CEE 7/7 | 37.5 mm | 191 mm | 2.48 in | 63 mm | 7.52 in | 1.48 " | 180 VAC | 264 VAC | Desktop (Class II) | 42 V | 2.9 A |
