Schaffner FN355 Series

Catalog

LINE FILTER 10A CHASSIS MOUNT

Part	Approval Agency	Voltage - Rated AC (Phase to Ground/Neutral)	Current	Voltage - Rated AC (Phase to Phase)	Termination Style	Configuration	Operating Temperature [Max]	Operating Temperature [Min]	Frequency - Operating	Mounting Type	Applications	Filter Type
TE Connectivity AMP Connectors FN355-10-05	CSA SEMKO UR	250 V	10 A	440 V	Quick Connect	Single Stage	100 °C	-25 °C	DC ~ 400Hz	Chassis Mount	General Purpose	Three Phase (Wye)
TE Connectivity AMP Connectors FN355-3-05	CSA SEMKO UR	250 V	3 A	440 V	Quick Connect	Single Stage	100 °C	-25 °C	DC ~ 400Hz	Chassis Mount	General Purpose	Three Phase (Wye)
TE Connectivity AMP Connectors FN355-20-03	CSA SEMKO UR	250 V	20 A	440 V	Terminal Block	Single Stage	100 °C	-25 °C	DC ~ 400Hz	Chassis Mount	General Purpose	Three Phase (Wye)
TE Connectivity AMP Connectors FN355-20-06	CE CSA SEMKO UKCA UR	250 V	20 A	440 V	Quick Connect	Single Stage	100 °C	-25 °C	DC ~ 400Hz	Chassis Mount	General Purpose	Three Phase (Wye)

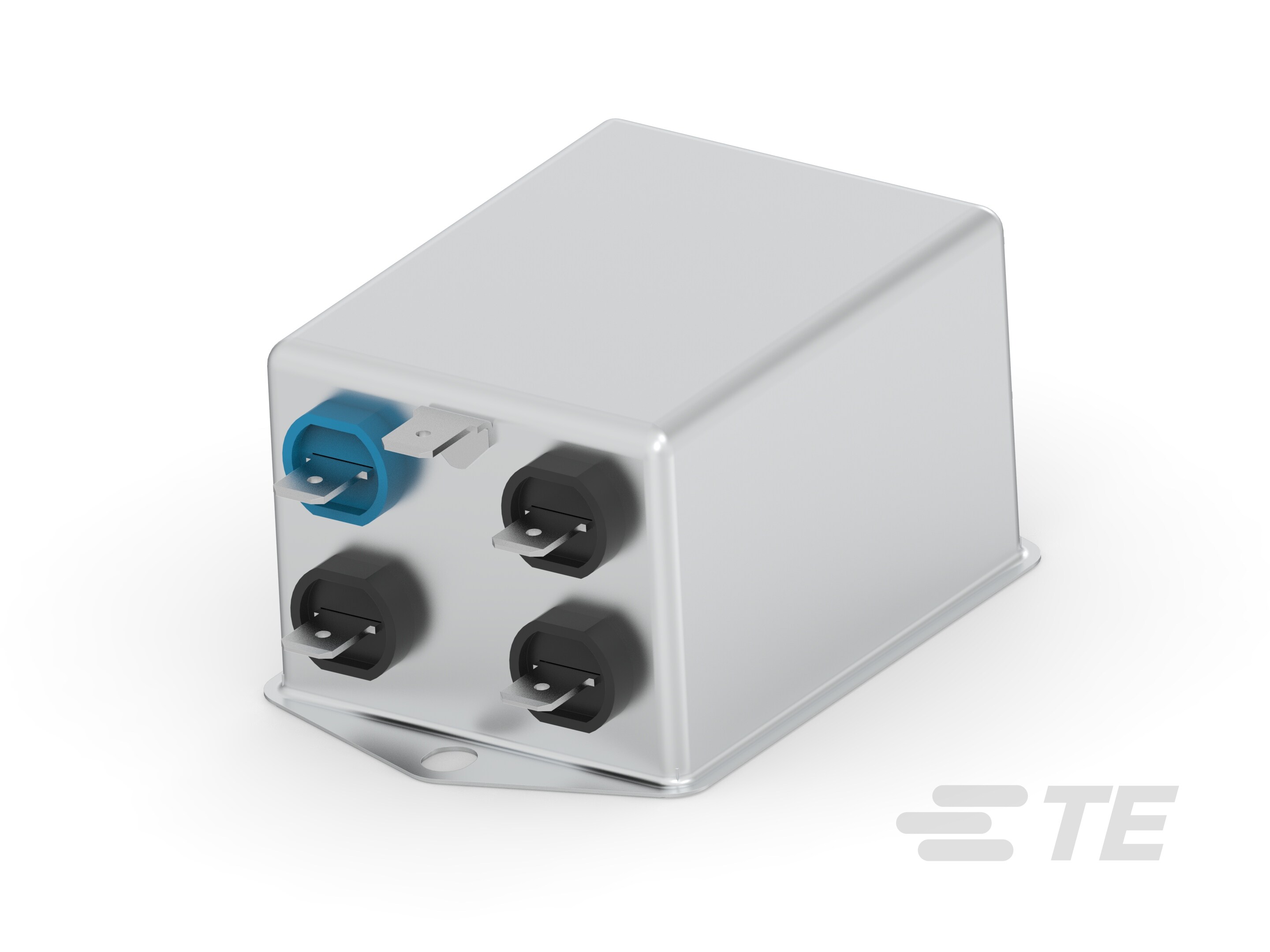

TE Connectivity AMP Connectors FN355-6-05	CSA SEMKO UR	250 V	6 A	440 V	Quick Connect	Single Stage	100 °C	-25 °C	DC ~ 400Hz	Chassis Mount	General Purpose	Three Phase (Wye)
TE Connectivity AMP Connectors FN355-30-44	CE CSA SEMKO UKCA UR	250 V	30 A	440 V	Terminal Block	Single Stage	100 °C	-25 °C	DC ~ 400Hz	Chassis Mount	General Purpose	Three Phase (Wye)
TE Connectivity AMP Connectors FN355-6-05	CSA SEMKO UR	250 V	6 A	440 V	Quick Connect	Single Stage	100 °C	-25 °C	DC ~ 400Hz	Chassis Mount	General Purpose	Three Phase (Wye)
