PFR0848 Series
Manufacturer: Delta Electronics
Beta
⌘K

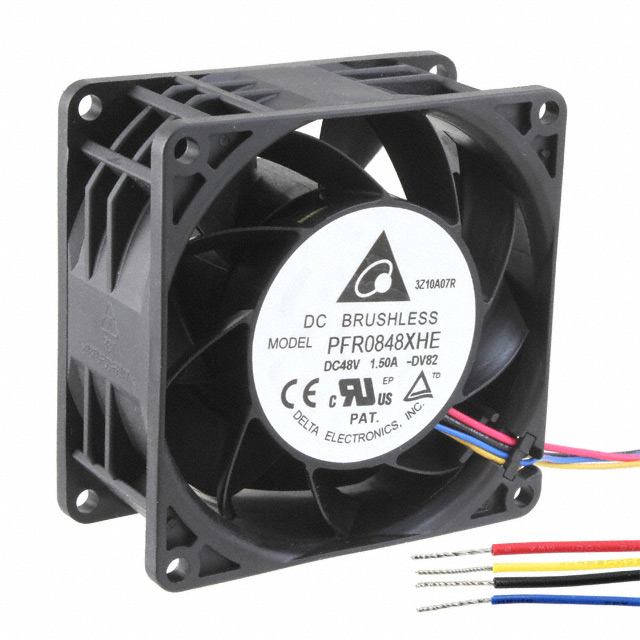

FAN AXIAL 80X38MM 48VDC WIRE
| Part | Material - Blade | Voltage Range [Min] | Voltage Range [Max] | Current Rating (Amps) | Material - Frame | Lifetime @ Temp. | Width [y] | Air Flow | Air Flow | Weight | Weight | Bearing Type | Features | Noise | Termination | RPM | Fan Type | Static Pressure | Static Pressure | Power (Watts) | Voltage - Rated | Operating Temperature [Max] | Operating Temperature [Min] | Approval Agency | Size / Dimension [z] | Size / Dimension [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | Plastic | 36 VDC | 56 VDC | 1 A | Plastic | 30000 Hrs | 38 mm | 144.2 CFM | 4.04 m³/min | 0.529 lb | 240 g | Ball | Locked Rotor Protection PWM Control Speed Sensor (Tach) | 73 dB(A) | 4 Wire Leads | 13800 RPM | Tubeaxial | 3.457 in H2O | 861.1 Pa | 48 W | 48 VDC | 70 °C | -10 °C | CE cURus VDE | 80 mm | 80 mm |
