NTE306 Series

Catalog

LED-DISPLAY-RED

Part	Digit/Alpha Size	Digit/Alpha Size	Wavelength - Peak	Current - Test	Common Pin	Power Dissipation (Max)	Voltage - Forward (Vf) (Typ)	Millicandela Rating	Color	Package / Case	Package / Case	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Power Dissipation (Max) [Max]	Number of Characters	Display Type

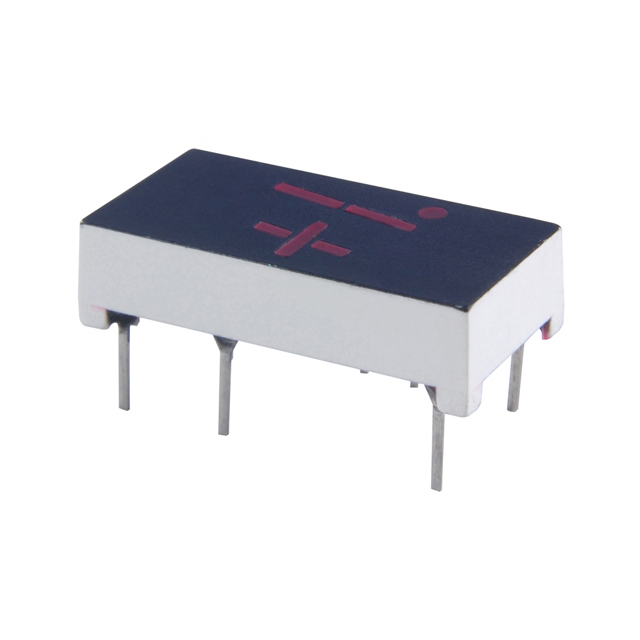

NTE Electronics, Inc NTE3065	7.62 mm	0.3 in	660 nm	20 mA	Common Anode	300 mW	2 V	0.35 mcd	Red

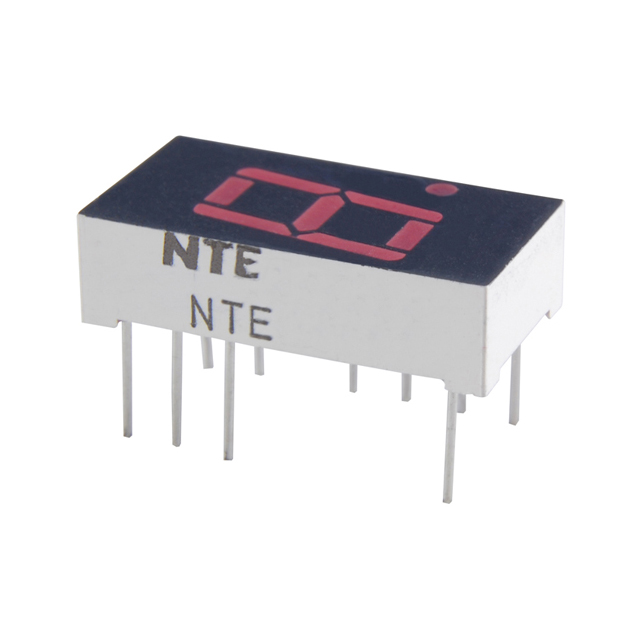

NTE Electronics, Inc NTE3069	10.16 mm	0.4 in	660 nm	20 mA	Common Cathode		1.85 V	10.5 mcd	Red	0.284 in 11 Leads	14-DIP	7.21 mm	0.736 in	9.8 mm	5.1 mm	18.7 mm	0.201 in	0.386 in	100 mW	1	7-Segment

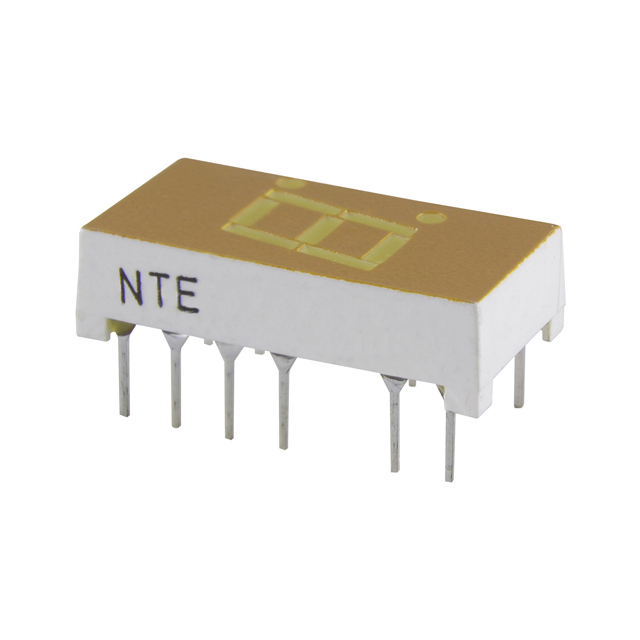

NTE Electronics, Inc NTE3064	7.62 mm	0.3 in	585 nm	10 mA	Common Anode		2.1 V	2 mcd	Yellow											1	7-Segment
NTE Electronics, Inc NTE3068	10.16 mm	0.4 in	660 nm	20 mA	Common Anode		1.85 V	10.5 mcd	Red										100 mW	1	7-Segment

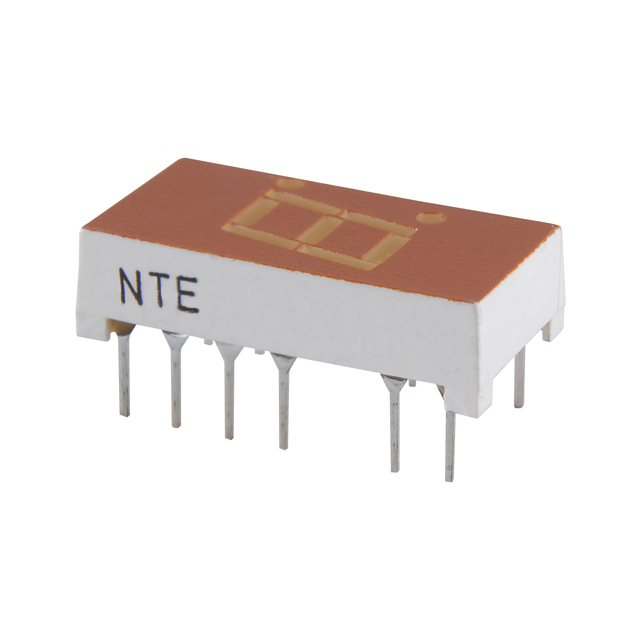

NTE Electronics, Inc NTE3062	7.62 mm	0.3 in	630 nm	20 mA	Common Anode		2.1 V	10.5 mcd											80 mW	1	7-Segment
