PVT412 Series
Manufacturer: INFINEON
Beta
⌘K

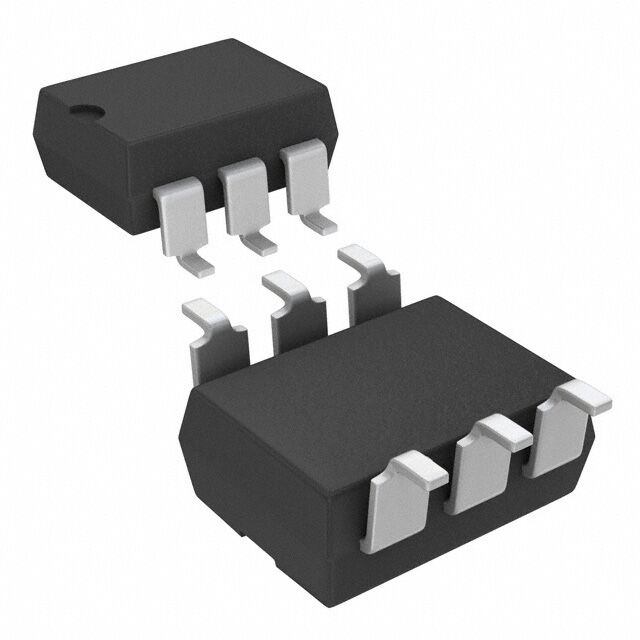

THE PVT412LS IS A 1 FORM A PHOTOVOLTAIC RELAY IN A 6-PIN SMT PACKAGE
| Part | Approval Agency | Output Type | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style | Package / Case | Package / Case | Package / Case | Voltage - Load [Min] | Voltage - Load [Max] | Load Current | On-State Resistance (Max) [Max] | Supplier Device Package | Voltage - Input |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | UL | AC DC | Surface Mount | 85 °C | -40 C | Gull Wing | 7.62 mm | 0.3 in | 6-SMD | 0 V | 400 V | 120 mA | 35 Ohm | 6-SMT | 1.2 VDC |
 INFINEON | UL | AC DC | Through Hole | 85 °C | -40 C | PC Pin | 6-DIP (0.300" 7.62mm) | 0 V | 400 V | 120 mA | 35 Ohm | 6-DIP | 1.2 VDC | ||
 INFINEON | UL | AC DC | Surface Mount | 85 °C | -40 C | Gull Wing | 7.62 mm | 0.3 in | 6-SMD | 0 V | 400 V | 140 mA | 27 Ohms | 6-SMT | 1.2 VDC |
 INFINEON | UL | AC DC | Surface Mount | 85 °C | -40 C | Gull Wing | 7.62 mm | 0.3 in | 6-SMD | 0 V | 400 V | 140 mA | 27 Ohms | 6-SMT | 1.2 VDC |
 INFINEON | UL | AC DC | Through Hole | 85 °C | -40 C | PC Pin | 6-DIP (0.300" 7.62mm) | 0 V | 400 V | 140 mA | 27 Ohms | 6-DIP | 1.2 VDC | ||
 INFINEON | UL | AC DC | Through Hole | 85 °C | -40 C | PC Pin | 6-DIP (0.300" 7.62mm) | 0 V | 400 V | 240 mA | 6 Ohms | 6-DIP | 1.2 VDC |
