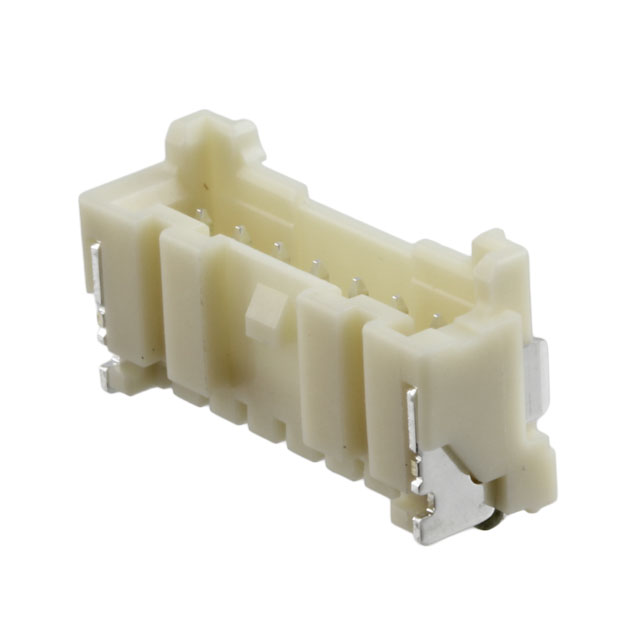

BM07B-PA Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN HEADER SMD 7POS 2MM
| Part | Mated Stacking Heights | Contact Shape | Mounting Type | Insulation Color | Voltage Rating | Contact Material | Fastening Type | Pitch - Mating | Pitch - Mating | Material Flammability Rating | Number of Rows | Connector Type | Number of Positions | Insulation Material | Contact Type | Shrouding | Insulation Height | Insulation Height | Operating Temperature [Max] | Operating Temperature [Min] | Features | Number of Positions Loaded | Current Rating (Amps) | Contact Finish - Post | Style | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | 11.1 mm 16 mm 16.2 mm | Square | Surface Mount | Natural | 250 V | Copper Alloy | Locking Ramp | 0.079 " | 2 mm | UL94 V-0 | 1 | Header | 7 | Nylon Polyamide (PA) | Male Pin | Shrouded - 4 Wall | 8.89 mm | 0.35 in | 85 °C | -25 °C | Board Guide Pick and Place Solder Retention | All | 3 A | Tin | Board to Cable/Wire | Solder |
