BC035 Series

Manufacturer: GCT

Catalog

BOARD TO BOARD & MEZZANINE CONNECTORS 64W, 1.0MM PITCH PIN HDR, DIL, TH, VERT, GF, BOX

Part	Contact Finish Thickness - Post	Number of Rows [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Insulation Material	Contact Material	Contact Shape	Overall Contact Length [x]	Overall Contact Length [x]	Row Spacing - Mating	Row Spacing - Mating	Connector Type	Contact Finish Thickness - Mating	Shrouding	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Termination	Mounting Type	Contact Type	Number of Positions Loaded	Number of Positions	Insulation Color	Contact Length - Mating	Contact Length - Mating	Contact Length - Post	Contact Length - Post	Contact Finish - Post	Contact Finish - Mating	Insulation Height	Insulation Height	Fastening Type	Current Rating (Amps)	Overall Contact Length	Overall Contact Length	Number of Positions [custom]

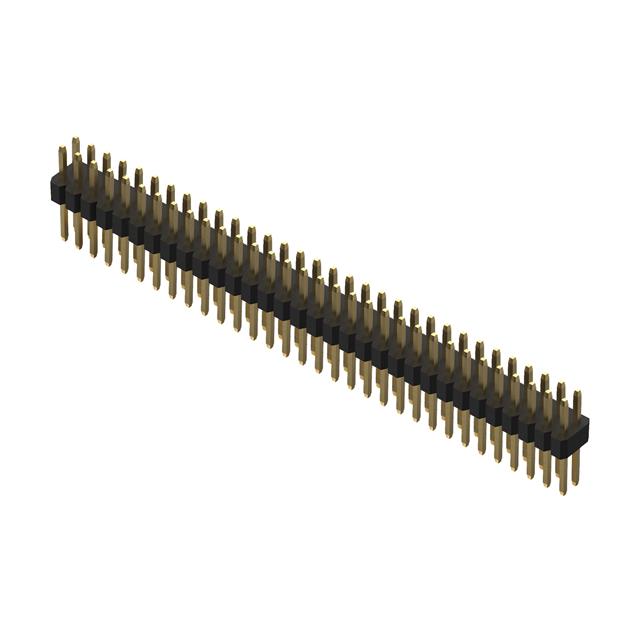

GCT BC035-64-A-0200-0300-L-G	Flash	2	-40 C	105 ░C	250 VAC	Liquid Crystal Polymer (LCP)	Copper Alloy	Square	0.244 in	6.2 mm	0.039 in	1 mm	Header	Flash	Unshrouded	1 mm	0.039 in	UL94 V-0	Solder	Through Hole	Male Pin	All	64	Black	0.079 in	2 mm	0.118 in	3 mm	Gold	Gold	1.2 mm	0.047 in	Push-Pull	1 A

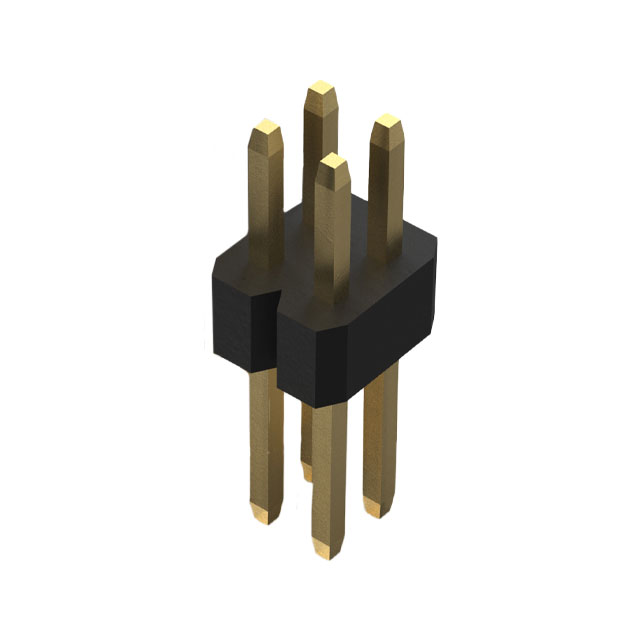

GCT BC035-04-A-0200-0300-L-G	Flash	2	-40 C	105 ░C	250 VAC	Liquid Crystal Polymer (LCP)	Copper Alloy	Square	0.244 in	6.2 mm	0.039 in	1 mm	Header	Flash	Unshrouded	1 mm	0.039 in	UL94 V-0	Solder	Through Hole	Male Pin	All	4	Black	0.079 in	2 mm	0.118 in	3 mm	Gold	Gold	1.2 mm	0.047 in	Push-Pull	1 A
GCT BC035-08-A-0200-0300-L-G	Flash	2	-40 C	105 ░C	250 VAC	Liquid Crystal Polymer (LCP)	Copper Alloy	Square	0.244 in	6.2 mm	0.039 in	1 mm	Header	Flash	Unshrouded	1 mm	0.039 in	UL94 V-0	Solder	Through Hole	Male Pin	All	8	Black	0.079 in	2 mm	0.118 in	3 mm	Gold	Gold	1.2 mm	0.047 in	Push-Pull	1 A

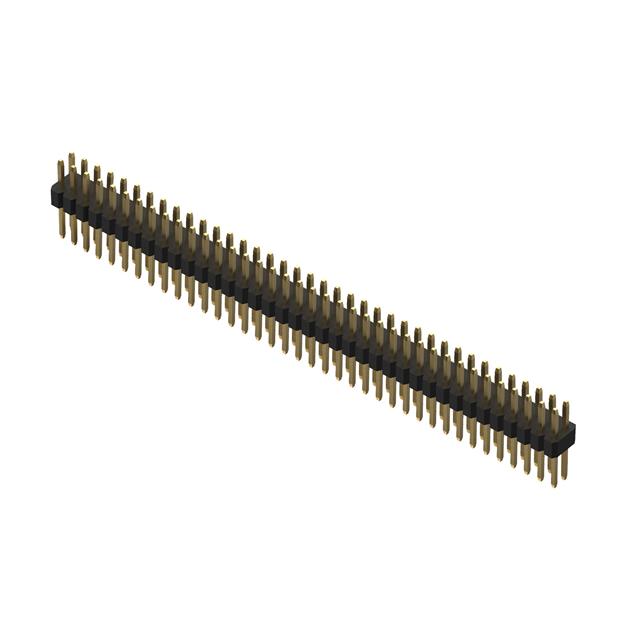

GCT BC035-76-A-0200-0300-L-G	Flash	2	-40 C	105 ░C	250 VAC	Liquid Crystal Polymer (LCP)	Copper Alloy	Square	0.244 in	6.2 mm	0.039 in	1 mm	Header	Flash	Unshrouded	1 mm	0.039 in	UL94 V-0	Solder	Through Hole	Male Pin	All	76	Black	0.079 in	2 mm	0.118 in	3 mm	Gold	Gold	1.2 mm	0.047 in	Push-Pull	1 A

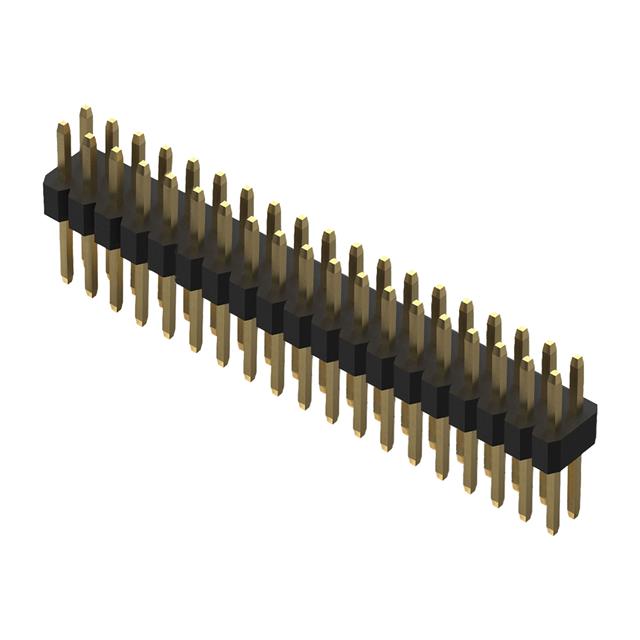

GCT BC035-38-A-0200-0300-L-G	Flash	2	-40 C	105 ░C	250 VAC	Liquid Crystal Polymer (LCP)	Copper Alloy	Square	0.244 in	6.2 mm	0.039 in	1 mm	Header	Flash	Unshrouded	1 mm	0.039 in	UL94 V-0	Solder	Through Hole	Male Pin	All	38	Black	0.079 in	2 mm	0.118 in	3 mm	Gold	Gold	1.2 mm	0.047 in	Push-Pull	1 A

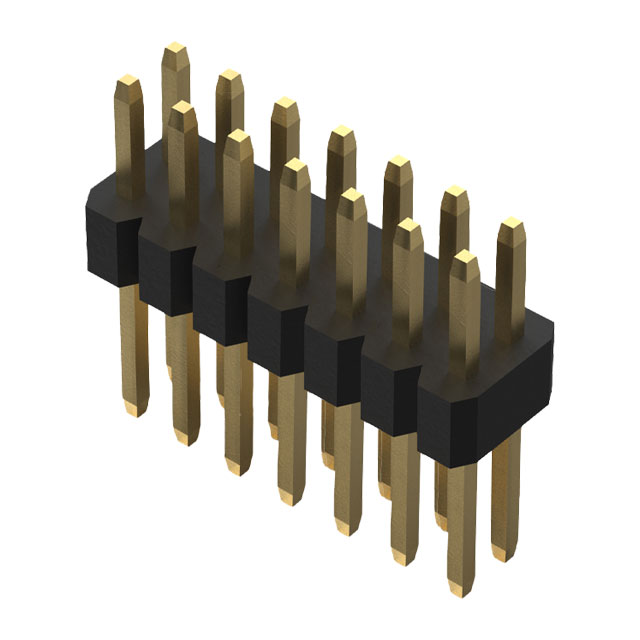

GCT BC035-14-A-0380-0300-L-G	Flash	2	-40 C	105 ░C	250 VAC	Liquid Crystal Polymer (LCP)	Copper Alloy	Square			0.039 in	1 mm	Header	Flash	Unshrouded	1 mm	0.039 in	UL94 V-0	Solder	Through Hole	Male Pin	All	14	Black	0.15 in	3.81 mm	0.118 in	3 mm	Gold	Gold	1.2 mm	0.047 in	Push-Pull	1 A	0.315 in	8 mm

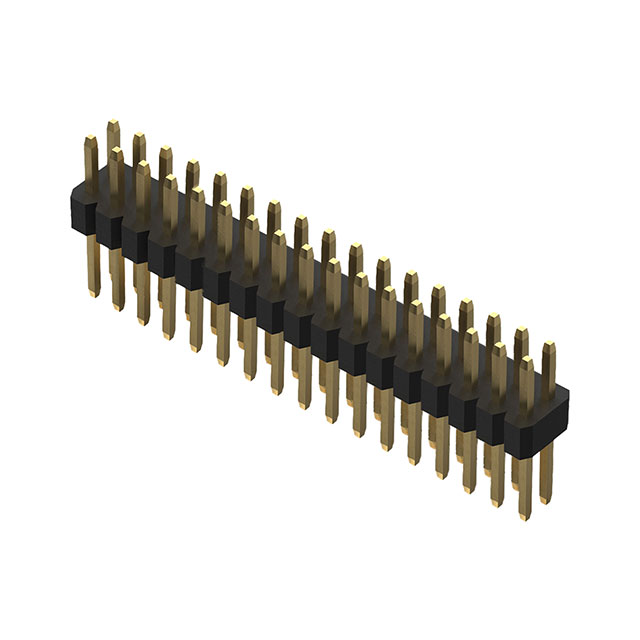

GCT BC035-34-A-0380-0300-L-G	Flash	2	-40 C	105 ░C	250 VAC	Liquid Crystal Polymer (LCP)	Copper Alloy	Square			0.039 in	1 mm	Header	Flash	Unshrouded	1 mm	0.039 in	UL94 V-0	Solder	Through Hole	Male Pin	All		Black	0.15 in	3.81 mm	0.118 in	3 mm	Gold	Gold	1.2 mm	0.047 in	Push-Pull	1 A	0.315 in	8 mm	34

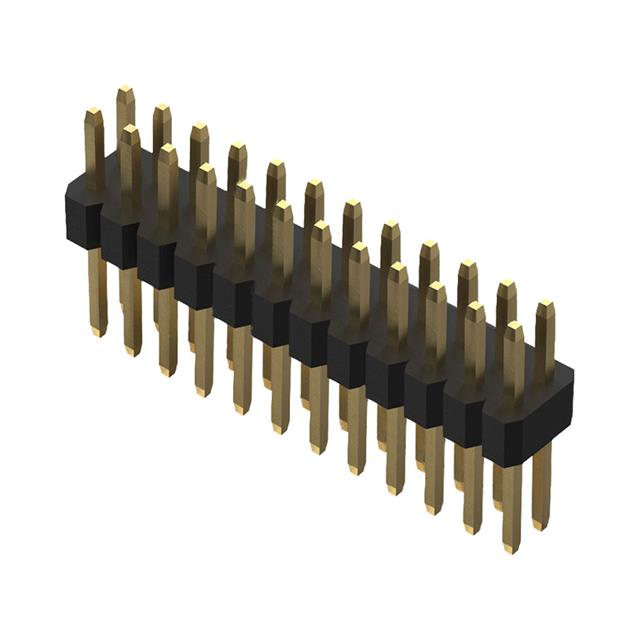

GCT BC035-24-A-0380-0300-L-G	Flash	2	-40 C	105 ░C	250 VAC	Liquid Crystal Polymer (LCP)	Copper Alloy	Square			0.039 in	1 mm	Header	Flash	Unshrouded	1 mm	0.039 in	UL94 V-0	Solder	Through Hole	Male Pin	All	24	Black	0.15 in	3.81 mm	0.118 in	3 mm	Gold	Gold	1.2 mm	0.047 in	Push-Pull	1 A	0.315 in	8 mm

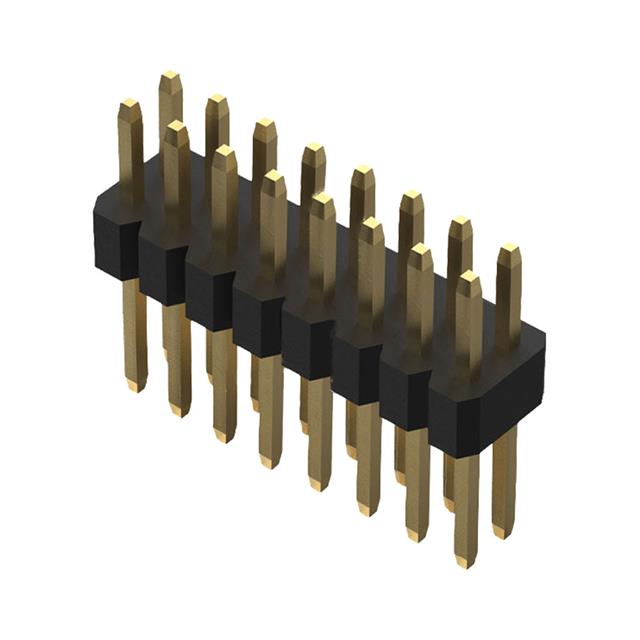

GCT BC035-16-A-0200-0300-L-G	Flash	2	-40 C	105 ░C	250 VAC	Liquid Crystal Polymer (LCP)	Copper Alloy	Square	0.244 in	6.2 mm	0.039 in	1 mm	Header	Flash	Unshrouded	1 mm	0.039 in	UL94 V-0	Solder	Through Hole	Male Pin	All	16	Black	0.079 in	2 mm	0.118 in	3 mm	Gold	Gold	1.2 mm	0.047 in	Push-Pull	1 A
