1744163 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

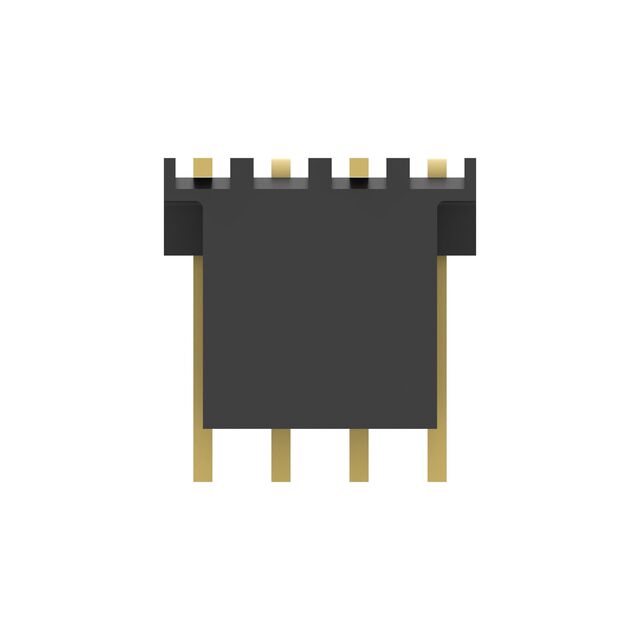

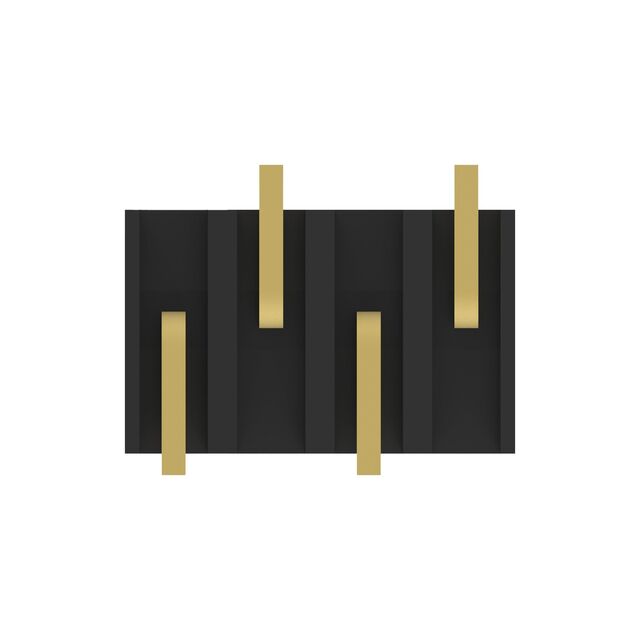

CONN HEADER SMD 4POS 2.54MM
| Part | Contact Finish - Post | Style | Features | Material Flammability Rating | Insulation Material | Contact Material | Shrouding | Number of Positions Loaded | Pitch - Mating | Pitch - Mating | Mounting Type | Insulation Color | Fastening Type | Termination | Number of Rows | Connector Type | Insulation Height | Insulation Height | Contact Type | Number of Positions | Applications | Contact Length - Mating | Contact Length - Mating | Contact Shape | Contact Finish - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Gold | Board to Cable/Wire | Pick and Place | UL94 V-0 | Polyamide (PA46) Nylon 4/6 | Copper Alloy | Shrouded - 1 Wall | All | 0.1 in | 2.54 mm | Surface Mount | Black | Friction Lock | Solder | 1 | Header | 0.347 in | 8.81 mm | Male Pin | 4 | General Purpose | 0.29 in | 7.37 mm | Square | Gold |
