F95 Series

Catalog

TANTALUM CAPACITORS - SOLID SMD 4V 100UF 0905 ESR=1. 2OHMS 10%

Part	ESR (Equivalent Series Resistance)	Package / Case	Voltage - Rated	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Type	Mounting Type	Manufacturer Size Code	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Features	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Capacitance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Package / Case	Height - Seated (Max) [Max]	Lifetime @ Temp.

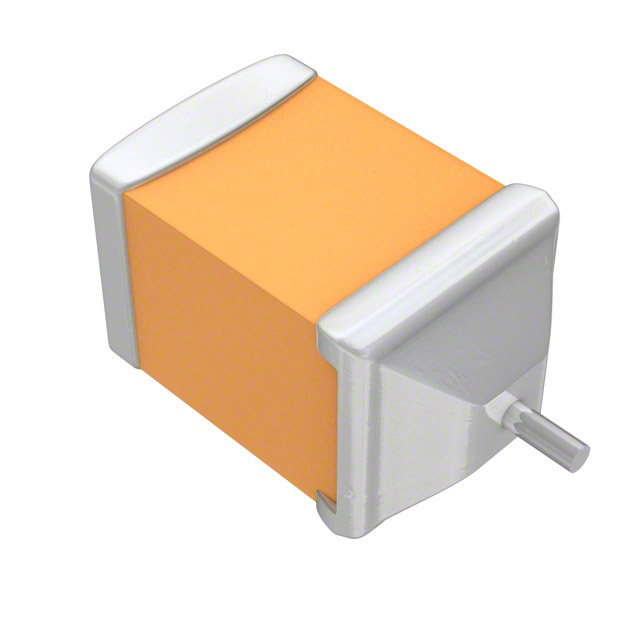

KYOCERA AVX F950G107KPAAQ2	1200 mOhm	0805	4 V	1.2 mm	0.047 "	Conformal Coated	Surface Mount	P	-55 C	125 °C	10 %	General Purpose	0.049 "	0.087 in	1.25 mm	2.2 mm	100 µF
KYOCERA AVX F951A685MPAAQ2	4 Ohm	0805	10 V	1.2 mm	0.047 "	Conformal Coated	Surface Mount	P	-55 C	125 °C	20 %	General Purpose	0.049 "	0.087 in	1.25 mm	2.2 mm	6.8 µF
KYOCERA AVX F950J157MBAAQ2	400 mOhms	1411	6.3 VDC			Conformal Coated	Surface Mount	B	-55 C	125 °C	20 %	General Purpose	0.11 "	0.138 in	2.8 mm	3.5 mm	150 µF	0.079 in	2 mm	3528 Metric

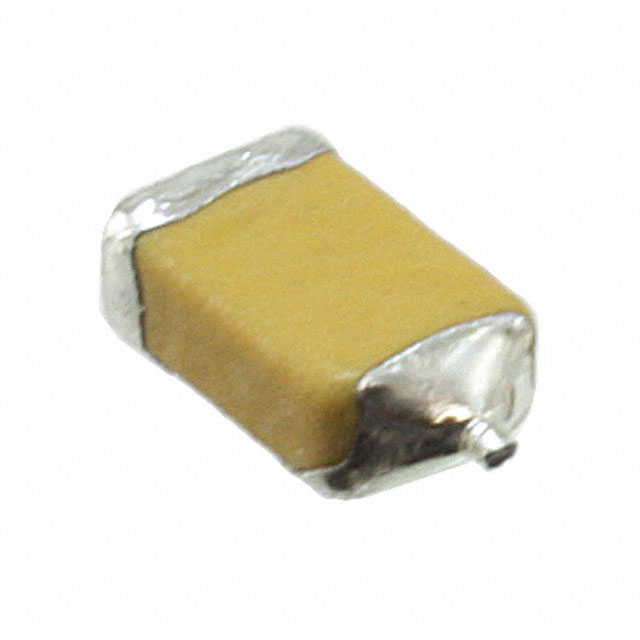

KYOCERA AVX F950J686KSAAQ2	900 mOhm	1206 (3216 Metric)	6.3 VDC			Conformal Coated	Surface Mount	S	-55 C	125 °C	10 %	General Purpose	0.063 "	0.126 "	1.6 mm	3.2 mm	68 µF	1.6 mm			0.063 in
KYOCERA AVX F950J157KBAAQ2	400 mOhms	1411	6.3 VDC			Conformal Coated	Surface Mount	B	-55 C	125 °C	10 %	General Purpose	0.11 "	0.138 in	2.8 mm	3.5 mm	150 µF	0.079 in	2 mm	3528 Metric
KYOCERA AVX F950J686MSAAQ2		1206 (3216 Metric)	6.3 VDC			Conformal Coated	Surface Mount	S	-55 C	125 °C	20 %	General Purpose	0.063 "	0.126 "	1.6 mm	3.2 mm	68 µF	1.6 mm			0.063 in

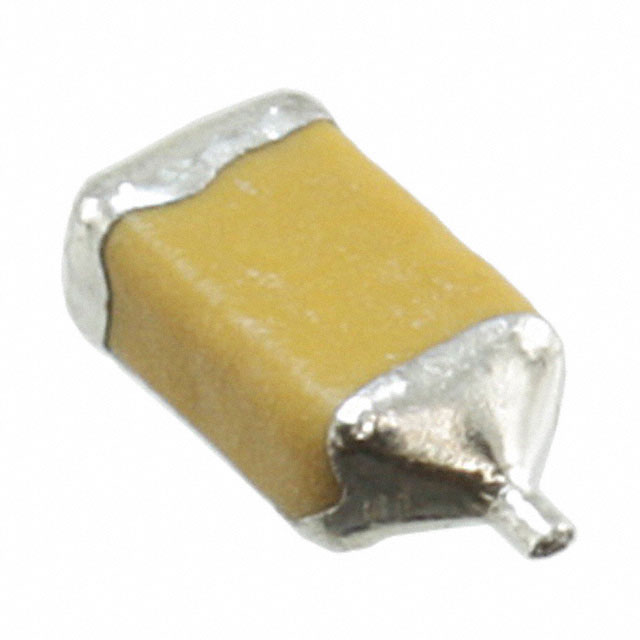

KYOCERA AVX F950J476KAAAQ2		1206 (3216 Metric)	6.3 VDC			Conformal Coated	Surface Mount	A	-55 C	125 °C	10 %	General Purpose	0.067 in	0.126 "	1.7 mm	3.2 mm	47 µF	1.6 mm			0.063 in	2000 Hrs
KYOCERA AVX F951E106KAAAQ2	2 Ohms	1206 (3216 Metric)	25 VDC			Conformal Coated	Surface Mount	A	-55 C	125 °C	10 %	General Purpose	0.067 in	0.126 "	1.7 mm	3.2 mm	10 µF	1.6 mm			0.063 in

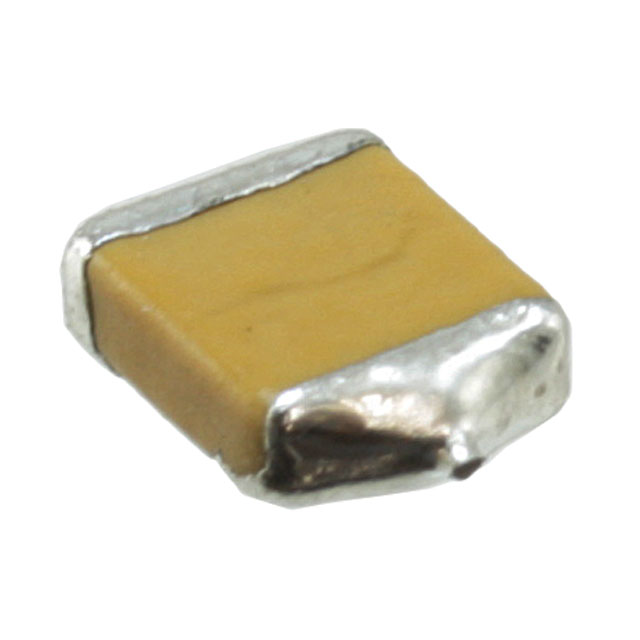

KYOCERA AVX F950J107MTAAQ2	600 mOhm	1411	6.3 VDC			Conformal Coated	Surface Mount	T	-55 C	125 °C	20 %	General Purpose	0.106 in	0.138 in	2.7 mm	3.5 mm	100 µF	1.6 mm		3528 Metric	0.063 in
KYOCERA AVX F950J476MAAAQ2		1206 (3216 Metric)	6.3 VDC			Conformal Coated	Surface Mount	A	-55 C	125 °C	20 %	General Purpose	0.067 in	0.126 "	1.7 mm	3.2 mm	47 µF	1.6 mm			0.063 in
