ED793 Series

Catalog

TERM BLK 2POS SIDE ENTRY 5MM PCB

Part	Screw Thread	Torque - Screw	Torque - Screw	Housing Material	Contact Material - Plating	Clamp Material - Plating	Operating Temperature [Min]	Operating Temperature [Max]	Current	Wire Termination	Features	Color	Voltage	Positions Per Level	Pitch	Pitch	Mounting Type	Number of Levels	Mating Orientation	Wire Gauge [Max]	Wire Gauge [Min]

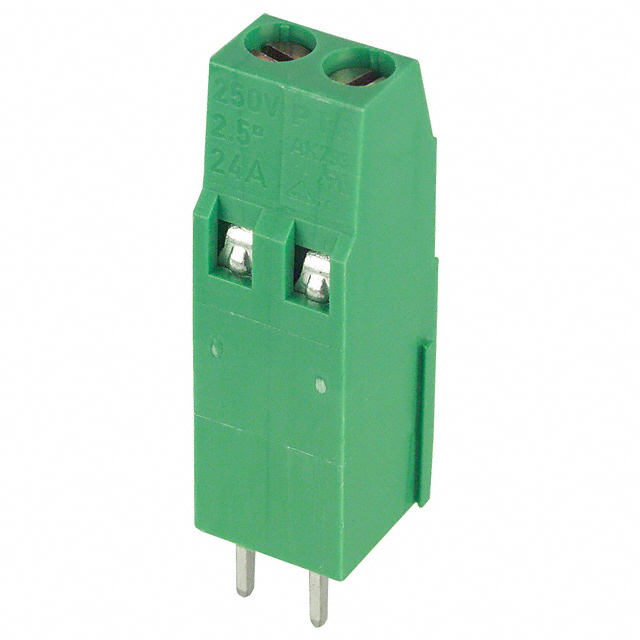

On Shore Technology Inc. ED793/2	M3	4.4 Lb-In	0.5 Nm	Polyamide (PA) Nylon	Brass	Copper	-30 ░C	105 ░C	20 A	Screw - Rising Cage Clamp	High Wire Entry Level Interlocking (Side)	Green	300 VDC	2	0.197 in	5 mm	Through Hole	1	Horizontal with Board	30 AWG	12 AWG

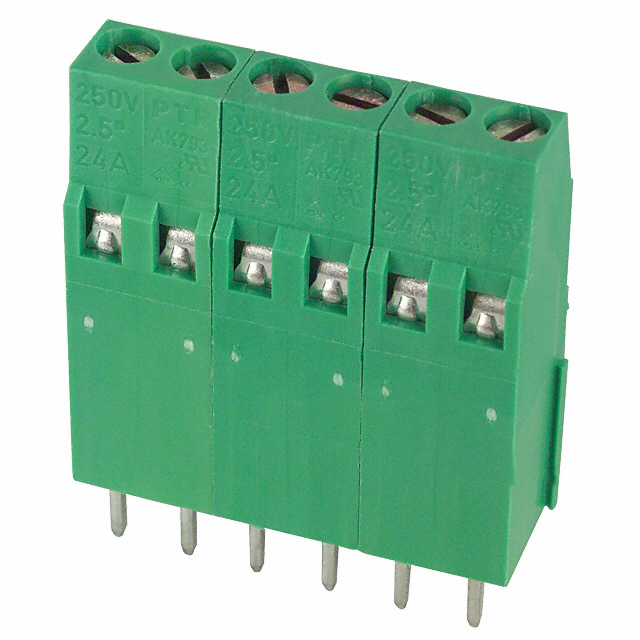

On Shore Technology Inc. ED793/6	M3	4.4 Lb-In	0.5 Nm	Polyamide (PA) Nylon	Brass	Copper	-30 ░C	105 ░C	20 A	Screw - Rising Cage Clamp	High Wire Entry Level Interlocking (Side)	Green	300 VDC	6	0.197 in	5 mm	Through Hole	1	Horizontal with Board	30 AWG	12 AWG

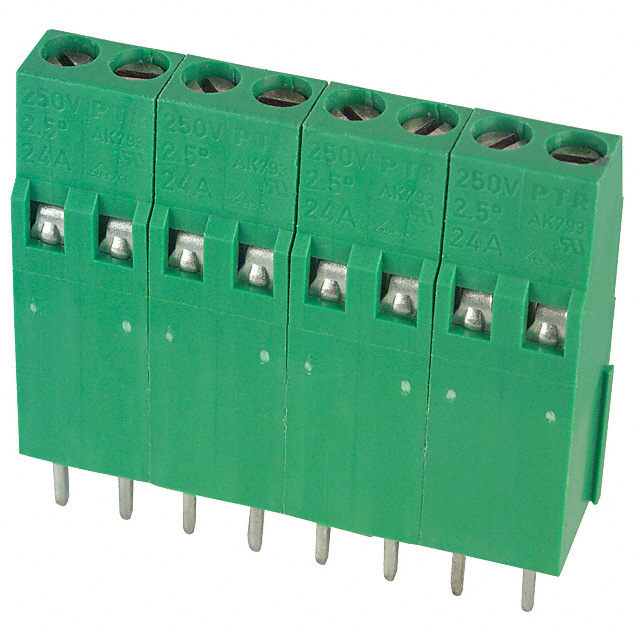

On Shore Technology Inc. ED793/8	M3	4.4 Lb-In	0.5 Nm	Polyamide (PA) Nylon	Brass	Copper	-30 ░C	105 ░C	20 A	Screw - Rising Cage Clamp	High Wire Entry Level Interlocking (Side)	Green	300 VDC	8	0.197 in	5 mm	Through Hole	1	Horizontal with Board	30 AWG	12 AWG
