SA48604 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K

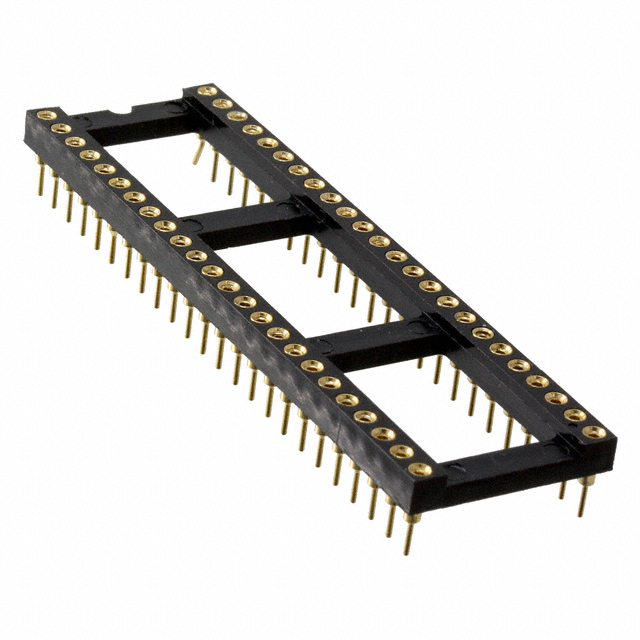

CONN IC DIP SOCKET 48POS GOLD
| Part | Contact Resistance | Material Flammability Rating | Current Rating (Amps) | Housing Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness - Mating | Number of Positions or Pins (Grid) [y] | Number of Positions or Pins (Grid) [custom] | Number of Positions or Pins (Grid) [x] | Contact Material - Mating | Features | Termination | Type [custom] | Type [custom] | Type | Pitch - Mating | Pitch - Mating | Contact Finish - Mating | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Mounting Type | Contact Finish - Post | Contact Material - Post [custom] | Pitch - Post | Pitch - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 On Shore Technology Inc. | 4 mOhm | UL94 V-0 | 3 A | Glass Filled Polyester Thermoplastic | -40 C | 105 ░C | Flash | 2 | 48 | 24 | Beryllium Copper | Open Frame | Solder | 15.24 mm | 0.6 in | DIP | 0.1 " | 2.54 mm | Gold | 2.03 µm | 80 µin | Through Hole | Tin | Brass | 0.1 in | 2.54 mm |
