MVU18 Series

Catalog

CONN SPADE TERM 18-22AWG 6 100PC

Part	Insulation Diameter	Insulation Diameter	Material - Insulation	Length - Termination [x]	Length - Termination [x]	Length - Ring Center to Termination [custom]	Length - Ring Center to Termination [custom]	Termination	Insulation	Length - Overall [x]	Length - Overall [x]	Wire Gauge [Max]	Wire Gauge [Min]	Terminal Type	Contact Material	Color	Stud/Tab Size	Features	Contact Finish	Mounting Type	Length - Pin	Length - Pin	Pin Diameter [diameter]	Pin Diameter [diameter]	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Thickness	Thickness	Width - Outer Edges [x]	Width - Outer Edges [x]	Length - Barrel	Length - Barrel	Diameter - Barrel [diameter]	Diameter - Barrel [diameter]	Number of Wire Entries
3M Electronic Specialty MVU18-6FBX-BOTTLE	0.145 in	3.68 mm	Vinyl	11.43 mm	0.45 in	6.35 mm	0.25 "	Crimp	Insulated	0.85 in	21.59 mm	22 AWG	17.5 AWG	Standard	Copper ETP	Red	6 Stud	Butted Seam	Tin	Free Hanging (In-Line)

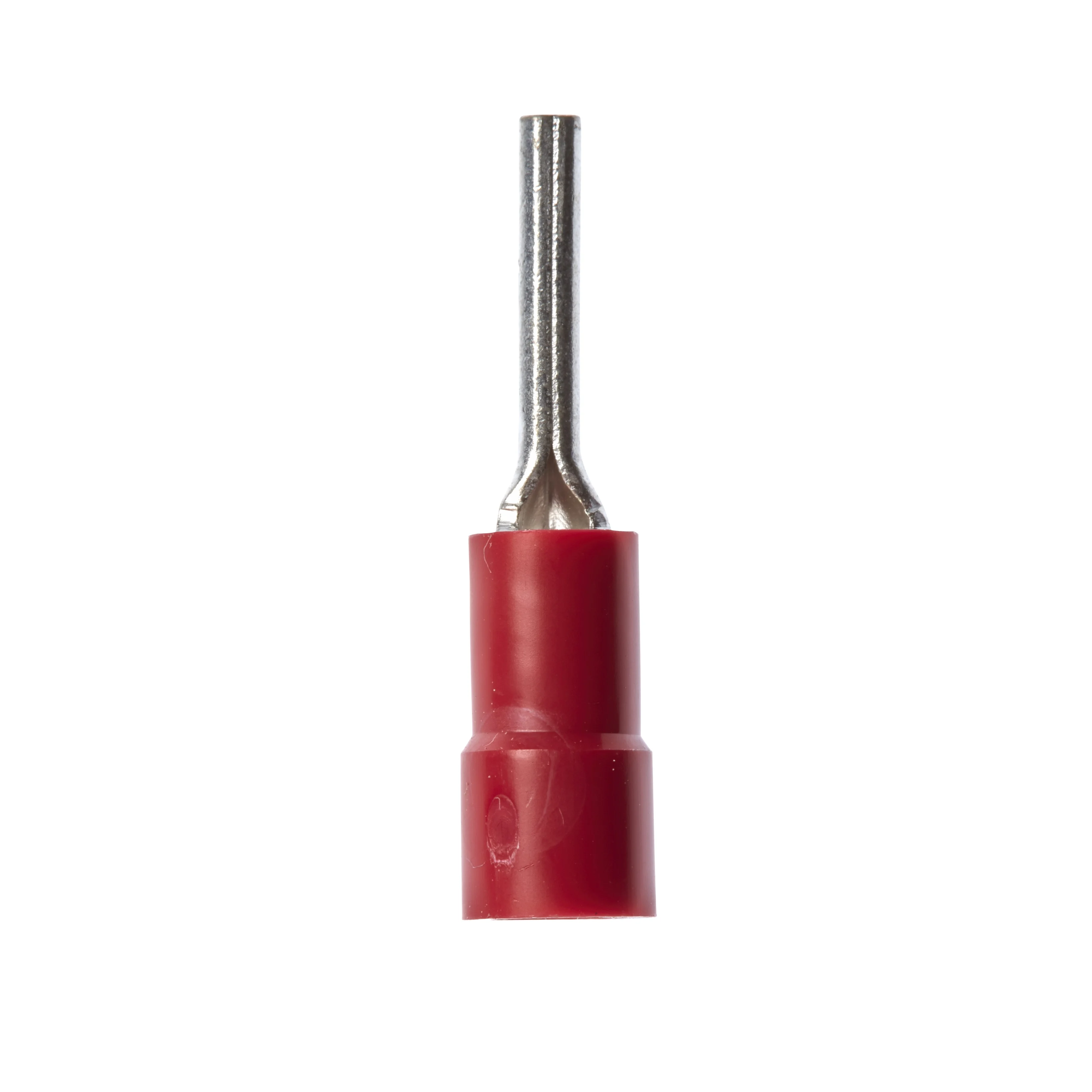

3M Electronic Specialty MVU18-47PK-A			Vinyl					Crimp	Insulated	0.9 "	22.86 mm	22 AWG	17.5 AWG		Copper	Red			Tin		11.94 mm	0.47 in	0.075 in	1.91 mm	0.15 in	3.81 mm
3M Electronic Specialty MVU18-14R/SX-BOTTLE	0.145 in	3.68 mm	Vinyl					Crimp	Insulated	1.08 in	27.43 mm	22 AWG	17.5 AWG	Circular	Copper ETP	Red	0.25 Stud		Tin	Free Hanging (In-Line)							0.76 mm	0.03 in	0.47 in	11.94 mm
3M Electronic Specialty MVU18-4FB/SK	0.145 in	3.68 mm	Vinyl	11.43 mm	0.45 in	6.35 mm	0.25 "	Crimp	Insulated	0.85 in	21.59 mm	22 AWG	17.5 AWG	Standard	Copper ETP	Red	4 Stud	Butted Seam	Tin	Free Hanging (In-Line)									0.25 "	6.35 mm
3M Electronic Specialty MVU18-6R/SK	0.145 in	3.68 mm	Vinyl					Crimp	Insulated	0.8 "	20.32 mm	22 AWG	17.5 AWG	Circular	Copper ETP	Red	6 Stud		Tin	Free Hanging (In-Line)							0.76 mm	0.03 in	0.25 "	6.35 mm
3M Electronic Specialty MVU18-47PX-A-BOTTLE			Vinyl					Crimp	Insulated	0.9 "	22.86 mm	22 AWG	17.5 AWG		Copper	Red			Tin		11.94 mm	0.47 in	0.075 in	1.91 mm	0.15 in	3.81 mm

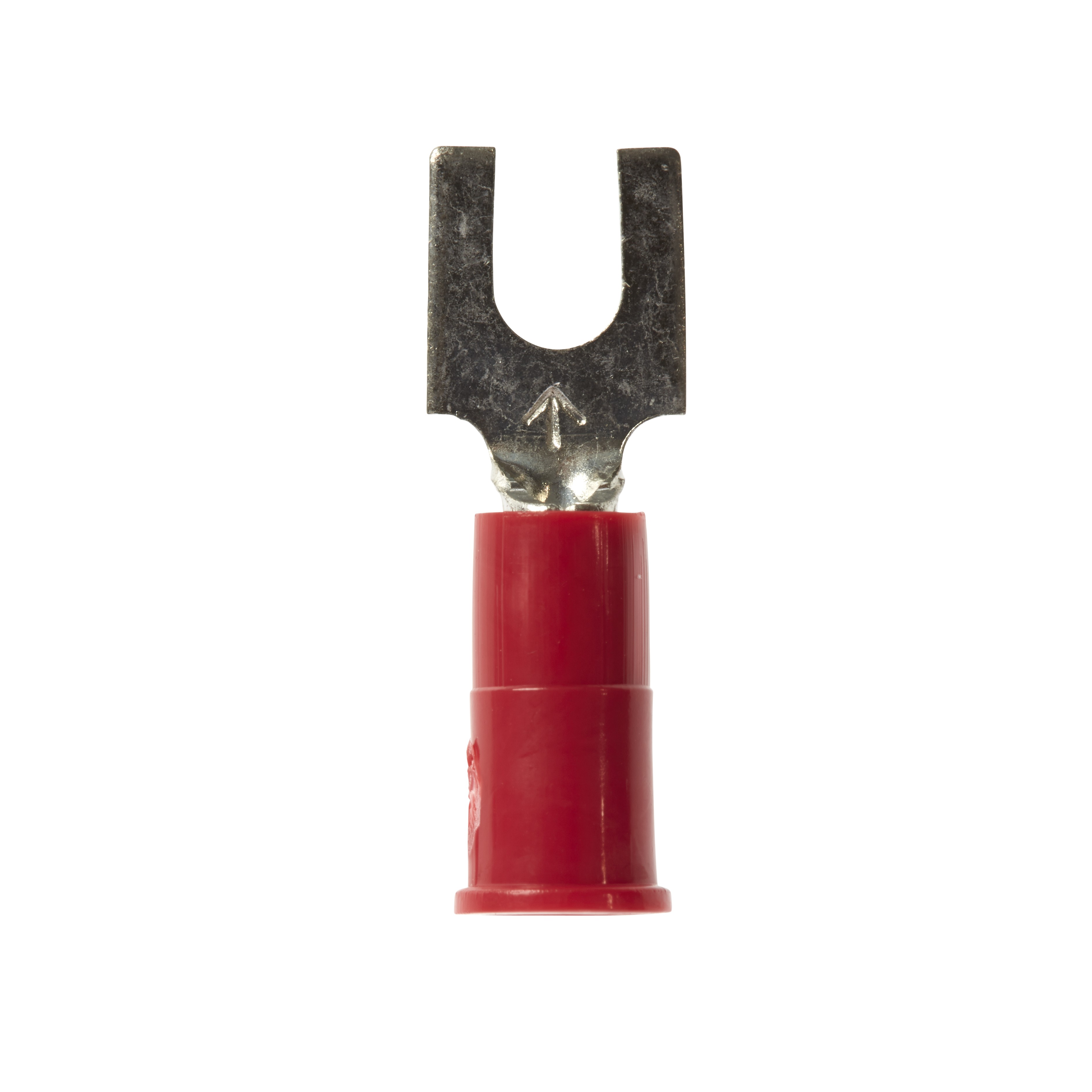

3M Electronic Specialty MVU18-6FBK	0.145 in	3.68 mm	Vinyl	11.43 mm	0.45 in	6.35 mm	0.25 "	Crimp	Insulated	0.85 in	21.59 mm	22 AWG	17.5 AWG	Standard	Copper ETP	Red	6 Stud	Butted Seam	Tin	Free Hanging (In-Line)

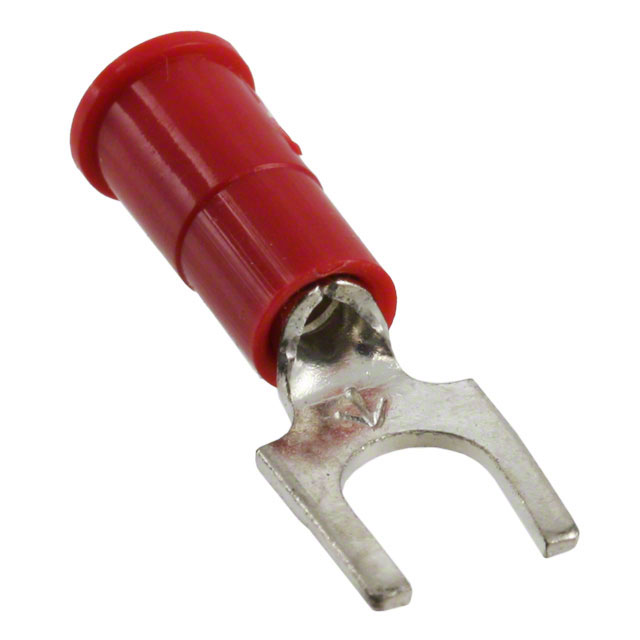

3M Electronic Specialty MVU18-10FBK	0.145 in	3.68 mm	Vinyl	11.43 mm	0.45 in	6.35 mm	0.25 "	Crimp	Insulated	0.85 in	21.59 mm	22 AWG	17.5 AWG	Standard	Copper ETP	Red	10 Stud	Butted Seam	Tin	Free Hanging (In-Line)
3M Electronic Specialty MVU18-156DMK-A	0.145 in	3.68 mm	Vinyl					Crimp	Non-Mating End Insulated	0.85 in	21.59 mm	22 AWG	17.5 AWG	Male Pin (Plug)		Red															4.83 mm	0.19 in	0.156 in	3.96 mm
3M Electronic Specialty MVU18BCK								Crimp	Fully Insulated			22 AWG	17.5 AWG	Butt Splice Individual Openings Inline		Red																			2
