FPS1000 Series
Manufacturer: TDK Corporation
Beta
⌘K
AC/DC FRONT END POWER SUPPLY (PSU), ITE, 1 OUTPUT, ADJUSTABLE, FIXED, 864 W, 12 V, 72 A
| Part | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Voltage - Isolation | Operating Temperature [Min] | Operating Temperature [Max] | Features | Power (Watts) | Current - Output 1 | Mounting Type | Voltage - Output 1 | Applications | Type | Efficiency | Number of Outputs | Voltage - Input [Min] | Voltage - Input [Max] | Approval Agency | Accessory Type | For Use With/Related Products |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TDK Corporation | 5 in | 5 in | 1.61 " | 290 mm | 41 mm | 11.42 in | 3000 V | 0 °C | 60 °C | Adjustable Output Hot Swappable I2C Interface Load Sharing PFC Remote Sense Standby Output Universal Input | 864 W | 72 A | Rack Mount | 12 V | ITE (Commercial) | Front End | 83 % | 1 | 85 VAC 120 VDC | 265 VAC 360 VDC | |||
 TDK Corporation | 5 in | 5 in | 1.61 " | 290 mm | 41 mm | 11.42 in | 3000 V | 0 °C | 70 °C | Adjustable Output DC Input Capable Load Sharing PFC Remote Sense Standby Output Universal Input | 1 kW | 31 A | Rack Mount | 32 V | ITE (Commercial) | Front End | 87 % | 1 | 85 VAC 120 VDC | 265 VAC 360 VDC | CE | ||
 TDK Corporation | 5 in | 5 in | 1.61 " | 290 mm | 41 mm | 11.42 in | 3000 V | 0 °C | 60 °C | Adjustable Output Hot Swappable I2C Interface Load Sharing PFC Remote Sense Standby Output Universal Input | 960 W | 40 A | Rack Mount | 24 V | ITE (Commercial) | Front End | 86 % | 1 | 85 VAC 120 VDC | 265 VAC 360 VDC | |||
TDK Corporation | 5 in | 5 in | 1.61 " | 290 mm | 41 mm | 11.42 in | 3000 V | 0 °C | 60 °C | Adjustable Output Hot Swappable I2C Interface Load Sharing PFC Remote Sense Standby Output Universal Input | 1.008 kW | 21 A | Rack Mount | 48 V | ITE (Commercial) | Front End | 88 % | 1 | 85 VAC 120 VDC | 265 VAC 360 VDC | |||
TDK Corporation | 5 in | 5 in | 1.61 " | 290 mm | 41 mm | 11.42 in | 3000 V | 0 °C | 60 °C | Adjustable Output Hot Swappable I2C Interface Load Sharing PFC Remote Sense Standby Output Universal Input | 1.008 kW | 21 A | Rack Mount | 48 V | ITE (Commercial) | Front End | 88 % | 1 | 85 VAC 120 VDC | 265 VAC 360 VDC | |||

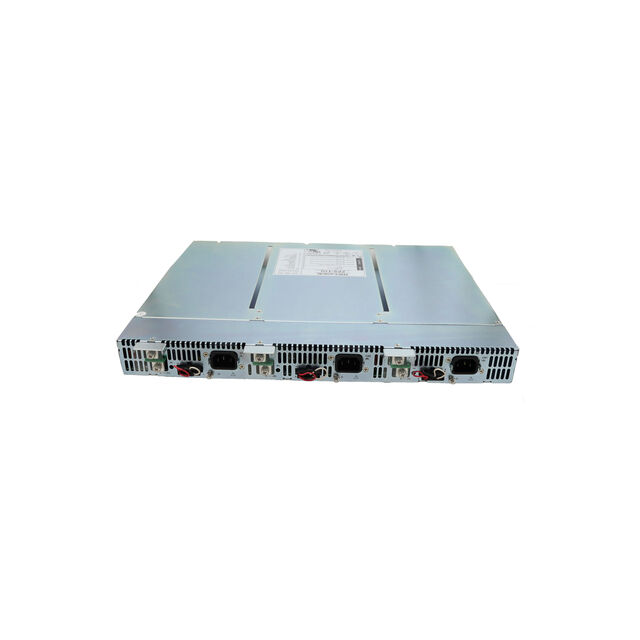

 TDK Corporation | Power Shelf | FPS1000 Series | |||||||||||||||||||||
TDK Corporation | 5 in | 5 in | 1.61 " | 290 mm | 41 mm | 11.42 in | 3000 V | 0 °C | 70 °C | Adjustable Output DC Input Capable Load Sharing PFC Remote Sense Standby Output Universal Input | 1 kW | 40 A | Rack Mount | 24 V | ITE (Commercial) | Front End | 86 % | 1 | 85 VAC 120 VDC | 265 VAC 360 VDC | CE | ||
TDK Corporation | 5 in | 5 in | 1.61 " | 290 mm | 41 mm | 11.42 in | 3000 V | 0 °C | 70 °C | Adjustable Output DC Input Capable Load Sharing PFC Remote Sense Standby Output Universal Input | 1 kW | 40 A | Rack Mount | 24 V | ITE (Commercial) | Front End | 86 % | 1 | 85 VAC 120 VDC | 265 VAC 360 VDC | CE | ||
 TDK Corporation | 5 in | 5 in | 1.61 " | 290 mm | 41 mm | 11.42 in | 3000 V | 0 °C | 60 °C | Adjustable Output Hot Swappable I2C Interface Load Sharing PFC Remote Sense Standby Output Universal Input | 864 W | 72 A | Rack Mount | 12 V | ITE (Commercial) | Front End | 83 % | 1 | 85 VAC 120 VDC | 265 VAC 360 VDC |
