UPD166038T1J Series
Manufacturer: Renesas Electronics Corporation
Beta
⌘K
POWER SWITCH ICS - POWER DISTRIBUTION POWER TRS HSSOP HIGHT SIDE IPD
| Part | Input Type | Features | Interface | Output Configuration | Supplier Device Package | Current - Output (Max) [Max] | Voltage - Supply (Vcc/Vdd) [Max] | Voltage - Supply (Vcc/Vdd) [Min] | Fault Protection | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case | Package / Case | Voltage - Load [Min] | Voltage - Load [Max] | Output Type | Ratio - Input:Output | Rds On (Typ) | Number of Outputs | Mounting Type | Switch Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

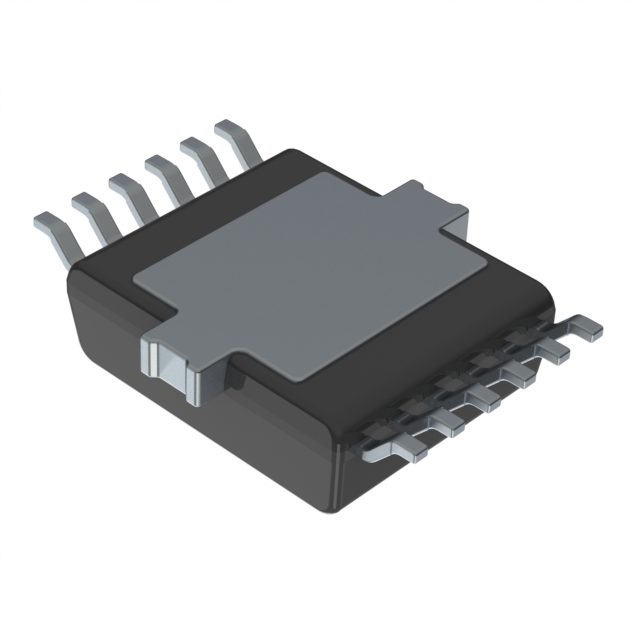

 Renesas Electronics Corporation | Non-Inverting | Slew Rate Controlled | Logic | High Side | 12-HSSOP | 33 A | 28 V | 4.5 V | Current Limiting (Fixed) Open Load Detect Over Load Over Temperature Reverse Current Short Circuit UVLO | -40 C | 150 °C | 0.295 " 7.5 mm | 12-PowerBSOP | 4.5 V | 28 V | N-Channel | 1:1 | 20 mOhm | 2 | Surface Mount | General Purpose |
