EFB0405 Series

Catalog

DC FAN AXIAL BALL BEARING 5V 4.5V TO 5.5V 3.74CFM 20.5DB 40 X 40 X 10MM

Part	Voltage Range [Max]	Voltage Range [Min]	Lifetime @ Temp.	Material - Frame	Current Rating (Amps)	Material - Blade	RPM	Noise	Termination	Power (Watts)	Voltage - Rated	Weight [custom]	Weight [custom]	Static Pressure	Static Pressure	Width [y]	Bearing Type	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [z]	Air Flow	Air Flow	Fan Type	Approval Agency	Features	Weight	Weight	Static Pressure

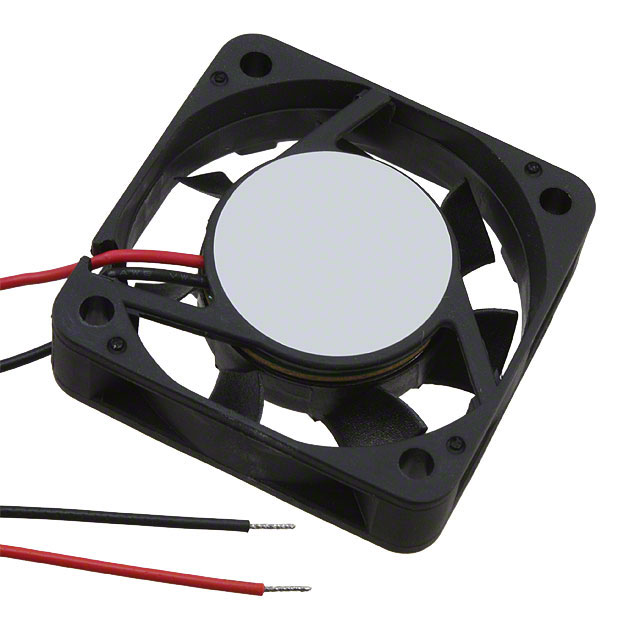

Delta Electronics EFB0405LA	5.5 V	4.5 V	70000 Hrs	Plastic	70 mA	Plastic	4000 RPM	20.5 dB(A)	2 Wire Leads	350 mW	5 V	14.51 g	0.032 lb	14.2 Pa	0.057 in H2O	10 mm	Ball	70 °C	-10 °C	40 mm	40 mm	0.104 m³/min	3.7 CFM	Tubeaxial	CE CSA UL VDE

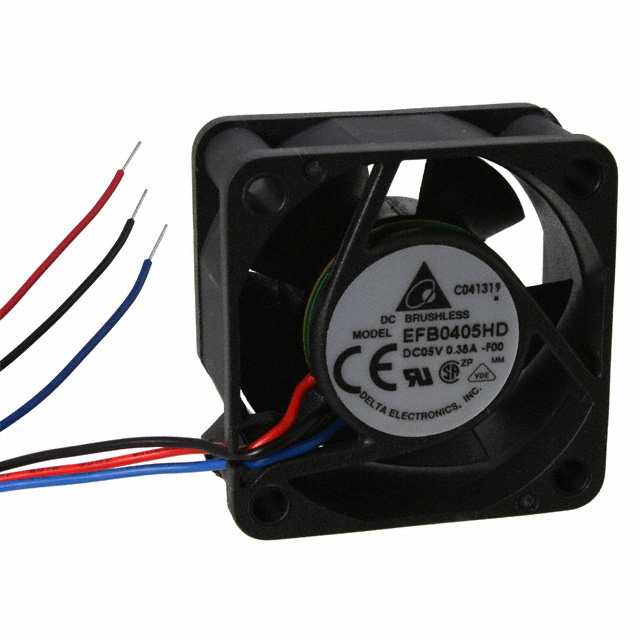

Delta Electronics EFB0405HD-F00	5.5 V	4.5 V	70000 Hrs	Plastic	0.25 A	Plastic	7600 RPM	28.5 dB	3 Wire Leads	1.25 W	5 V			75.5 Pa	0.303 in H2O	20 mm	Ball	70 °C	-10 °C	40 mm	40 mm	0.238 mł/min	8.5 CFM	Tubeaxial	CE CSA UL VDE	Locked Rotor Protection Speed Sensor (Tach)	33.11 g	0.073 lb

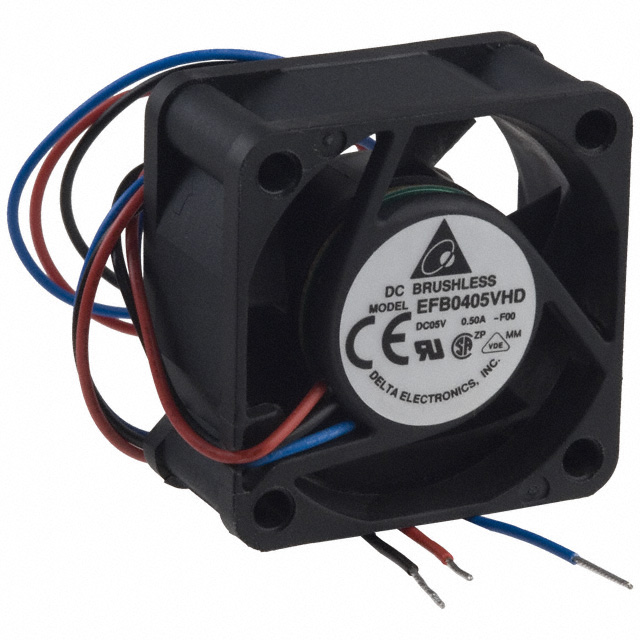

Delta Electronics EFB0405VHD-F00	5.5 V	4.5 V	70000 Hrs	Plastic	320 mA	Plastic	9000 RPM	32.5 dB	3 Wire Leads	1.6 W	5 V			103.6 Pa	0.416 in H2O	20 mm	Ball	70 °C	-10 °C	40 mm	40 mm	0.283 m³/min	10.1 CFM	Tubeaxial	CE CSA UL VDE	Locked Rotor Protection Speed Sensor (Tach)	33.11 g	0.073 lb

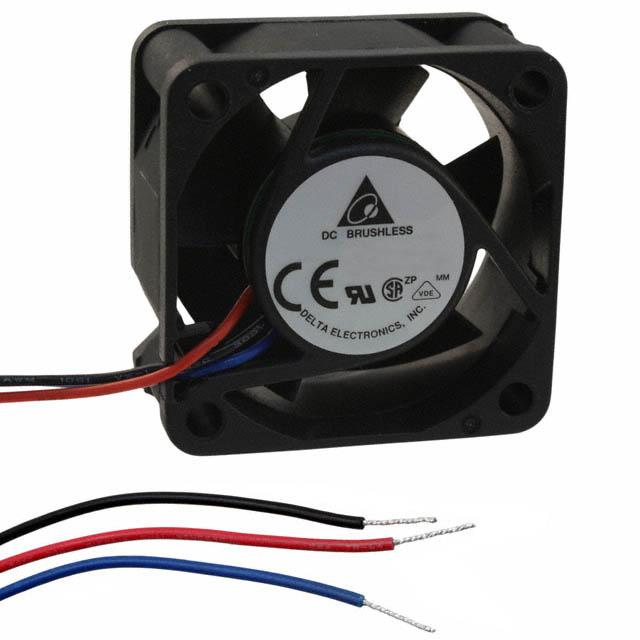

Delta Electronics EFB0405LD-R00	5.5 V	4.5 V	70000 Hrs	Plastic	100 mA	Plastic	5000 RPM	22 dB(A)	3 Wire Leads	0.5 W	5 V			33.9 Pa	0.136 in H2O	20 mm	Ball	70 °C	-10 °C	40 mm	40 mm	0.154 mł/min	5.5 CFM	Tubeaxial	CE CSA UL VDE	Locked Rotor Sensor	33.11 g	0.073 lb

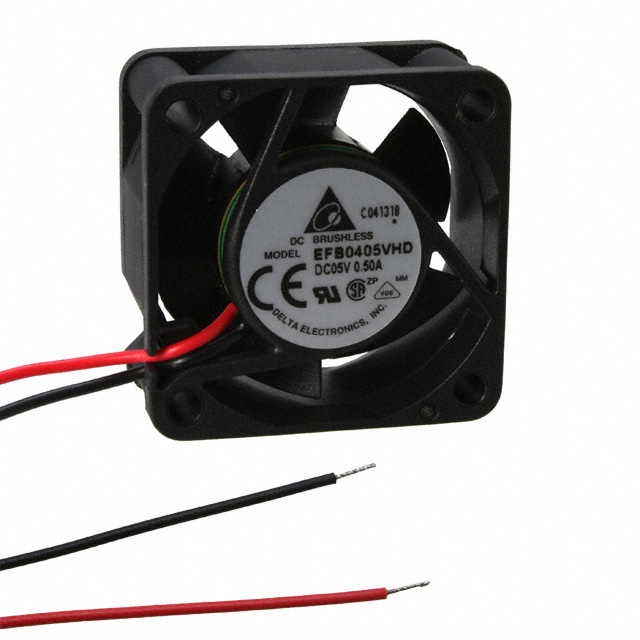

Delta Electronics EFB0405VHD	5.5 V	4.5 V	70000 Hrs	Plastic	320 mA	Plastic	9000 RPM	32.5 dB	2 Wire Leads	1.6 W	5 V			103.6 Pa	0.416 in H2O	20 mm	Ball	70 °C	-10 °C	40 mm	40 mm	0.283 m³/min	10.1 CFM	Tubeaxial	CE CSA UL VDE		33.11 g	0.073 lb
Delta Electronics EFB0405MA	5.5 V	4.5 V	70000 Hrs	Plastic	100 mA	Plastic	5000 RPM	24.5 dB(A)	2 Wire Leads	0.5 W	5 V	14.51 g	0.032 lb	21.9 Pa		10 mm	Ball	70 °C	-10 °C	40 mm	40 mm	0.165 m³/min	5.9 CFM	Tubeaxial	CE CSA UL VDE				0.088 in H2O
Delta Electronics EFB0405MD-9B48	5.5 V	4.5 V	70000 Hrs	Plastic	150 mA	Plastic	6300 RPM	24 dB	2 Wire Leads	0.75 W	5 V			54.3 Pa	0.218 in H2O	20 mm	Ball			40 mm	40 mm	0.202 mł/min	7.2 CFM	Tubeaxial	CE CSA UL VDE		33.11 g	0.073 lb
Delta Electronics EFB0405LD	5.5 V	4.5 V	70000 Hrs	Plastic	100 mA	Plastic	5000 RPM	22 dB(A)	2 Wire Leads	0.5 W	5 V			33.9 Pa	0.136 in H2O	20 mm	Ball	70 °C	-10 °C	40 mm	40 mm	0.154 mł/min	5.5 CFM	Tubeaxial	CE CSA UL VDE		33.11 g	0.073 lb

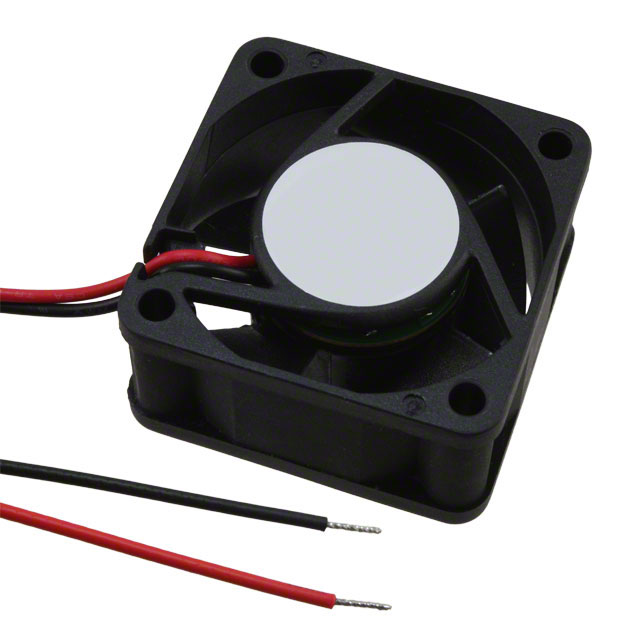

Delta Electronics EFB0405HHD	5.5 V	4.5 V	70000 Hrs	Plastic	0.3 A	Plastic	8200 RPM	30.5 dB	2 Wire Leads	1.5 W	5 V			88.2 Pa	0.354 in H2O	20 mm	Ball	70 °C	-10 °C	40 mm	40 mm	0.263 m³/min	9.4 CFM	Tubeaxial	CE CSA UL VDE		33.11 g	0.073 lb
Delta Electronics EFB0405HD	5.5 V	4.5 V	70000 Hrs	Plastic	0.25 A	Plastic	7600 RPM	28.5 dB	2 Wire Leads	1.25 W	5 V			75.5 Pa	0.303 in H2O	20 mm	Ball	70 °C	-10 °C	40 mm	40 mm	0.238 mł/min	8.5 CFM	Tubeaxial	CE CSA UL VDE		33.11 g	0.073 lb
