60-12-4997 Series

Catalog

THERM PAD 34.93X20.96MM W/ADH

Part	Shelf Life	Shelf Life Start	Thickness	Thickness	Thermal Conductivity	Shape	Backing, Carrier [custom]	Backing, Carrier [custom]	Color	Adhesive	Type	Usage	Outline [x]	Outline [y]	Material	Thickness

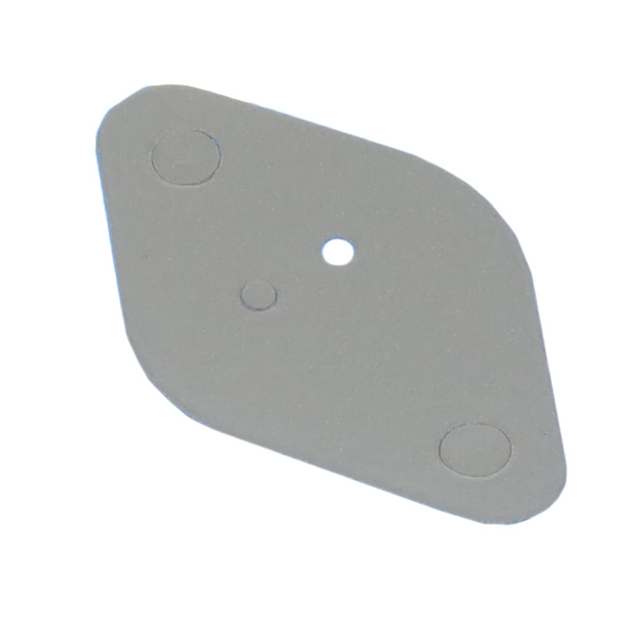

Parker Chomerics 60-12-4997-T500	18 Months	Date of Shipment	0.01 in	10 mils	2.1 W/m-K	Rhombus	Fiberglass	Fiberglass	Green	Adhesive - One Side	Insulator Pad Sheet	TO-66	34.93 mm	20.96 mm
Parker Chomerics 60-12-4997-1671	18 Months	Date of Shipment		0.381 mm	2.6 W/m-K	Rhombus	Fiberglass	Fiberglass	White	Adhesive - One Side	Insulator Pad Sheet	TO-66	34.93 mm	20.96 mm	Silicone	0.015 "
Parker Chomerics 60-12-4997-T441-08	18 Months	Date of Shipment		0.203 mm	1.1 W/m-K	Rhombus	Fiberglass	Fiberglass	Pink	Adhesive - One Side	Insulator Pad Sheet	TO-66	34.93 mm	20.96 mm		0.008 in

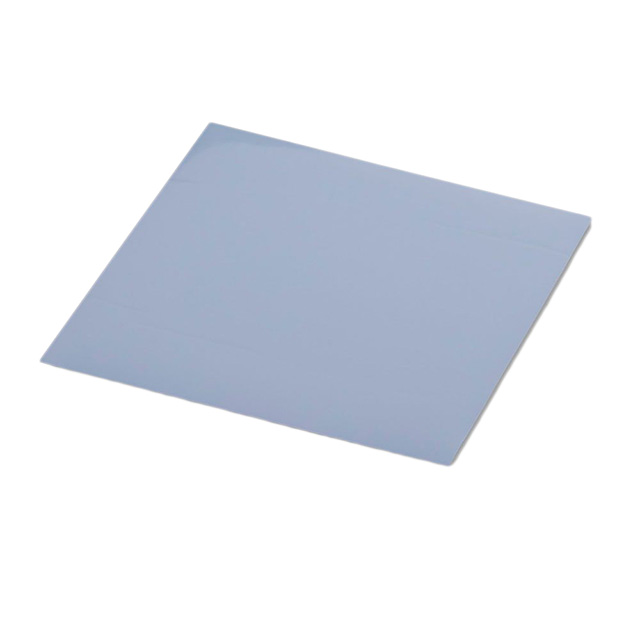

Parker Chomerics 60-12-4997-1674	12 Months	Date of Shipment	0.01 in	10 mils		Rhombus	Fiberglass	Fiberglass	Blue	Adhesive - One Side	Insulator Pad Sheet	TO-66	34.93 mm	20.96 mm
