NCP303150 Series

Catalog

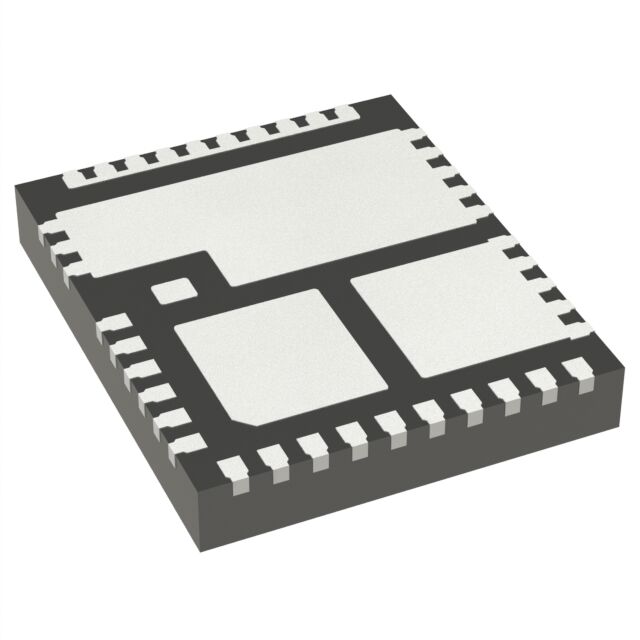

DRIVER 80A 1-OUT HIGH SIDE/LOW SIDE 39-PIN PQFN EP T/R

Part	Gate Type	Driven Configuration	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Number of Drivers	Channel Type	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Input Type	Package / Case	Logic Voltage - VIL, VIH	High Side Voltage - Max (Bootstrap) [Max]	Supplier Device Package	Current - Peak Output (Source, Sink) [custom]	Current - Peak Output (Source, Sink) [custom]	Voltage - Supply [Min]	Voltage - Supply [Max]
ON Semiconductor NCP303150MNTWG	N-Channel MOSFET	Half-Bridge Low-Side	17 ns	26 ns	2	Single	Surface Mount	-40 °C	125 ¯C	Non-Inverting	39-PowerVFQFN	0.65 V 2.7 V	30 V	39-PQFN (5x6)	100 mA	100 mA	4.5 V	5.5 V
ON Semiconductor NCP303150DMNTWG	MOSFET (N-Channel)	Half-Bridge Low-Side	17 ns	26 ns	2	Single	Surface Mount	-40 °C	125 ¯C	Non-Inverting	39-PowerVFQFN	0.65 V 2.7 V	30 V	39-PQFN (5x6)	100 mA	100 mA	4.5 V	5.5 V
