EN5394 Series

Manufacturer: Altera

Catalog

DC DC CONVERTER 0.6-5.88V

Part	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Features	Applications	Package / Case	Supplier Device Package	Efficiency	Current - Output (Max) [Max]	Mounting Type	Control Features	Type	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Number of Outputs	Voltage - Input (Min) [Min]	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]

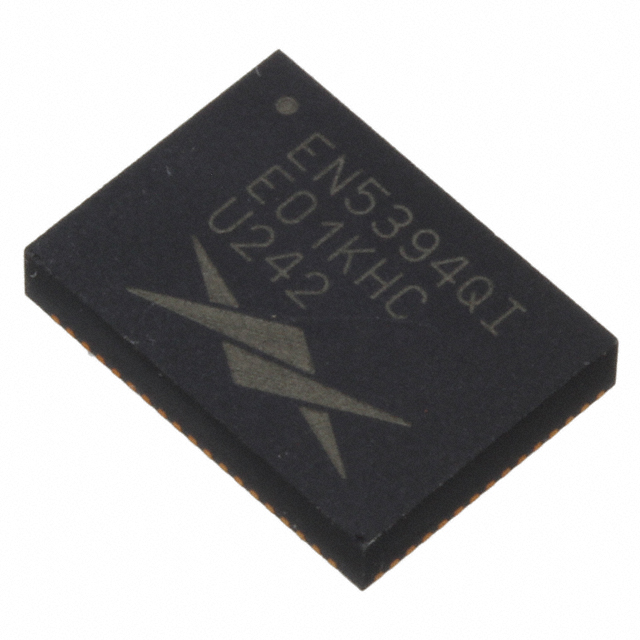

Altera EN5394QI	6.6 V	85 °C	-40 C	OCP OTP Remote On/Off SCP UVLO	ITE (Commercial)	68-FQFN Exposed Pad Module	68-QFN (11x8)	93 %	9 A	Surface Mount	Active High Enable	Non-Isolated PoL Module	1.9 mm	0.43 "	8 mm	11 mm	0.31 in	0.07 in	1	2.375 V	0.6 V	5.88 V
Altera EN5394QI	6.6 V	85 °C	-40 C	OCP OTP Remote On/Off SCP UVLO	ITE (Commercial)	68-FQFN Exposed Pad Module	68-QFN (11x8)	93 %	9 A	Surface Mount	Active High Enable	Non-Isolated PoL Module	1.9 mm	0.43 "	8 mm	11 mm	0.31 in	0.07 in	1	2.375 V	0.6 V	5.88 V
