PV22 Series

Terminals VYL-RING 8 RED 3/8

Manufacturer: Panduit Corp

Catalog

Terminals VYL-RING 8 RED 3/8

Catalog

Terminals VYL-RING 8 RED 3/8

Part	Features	Wire Gauge [Min]	Wire Gauge [Max]	Contact Finish	Color	Thickness	Thickness	Termination	Mounting Type	Terminal Type	Material - Insulation	Insulation	Width - Outer Edges [y]	Width - Outer Edges [y]	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Length - Overall [x]	Length - Overall [x]	Stud/Tab Size	Contact Material	Tongue Inside Opening [x]	Tongue Inside Opening [x]	Stud/Tab Size
Panduit Corp PV22-4R-MYY	Butted Seam	22 AWG	26 AWG	Tin	Yellow	0.02 in	0.51 mm	Crimp	Free Hanging (In-Line)	Circular	Vinyl	Insulated	0.21 in	5.33 mm	2.79 mm	0.11 in	17.27 mm	0.68 in	4 Stud	Copper

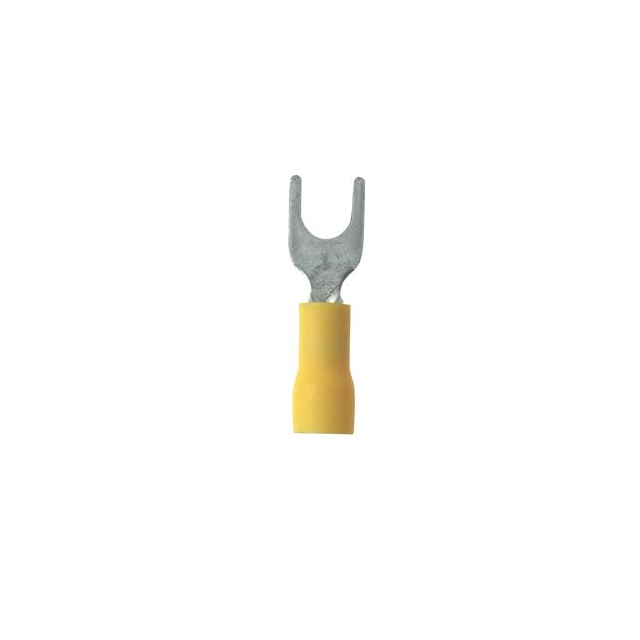

Panduit Corp PV22-6F-MYY	Brazed Seam	22 AWG	26 AWG	Tin	Yellow			Crimp	Free Hanging (In-Line)	Standard	Vinyl	Insulated	0.25 "	6.35 mm	2.79 mm	0.11 in	19.3 mm	0.76 in	6 Stud	Copper	3.56 mm	0.14 in
Panduit Corp PV22-8R-MYY	Butted Seam	22 AWG	26 AWG	Tin	Yellow	0.02 in	0.51 mm	Crimp	Free Hanging (In-Line)	Circular	Vinyl	Insulated	0.26 in	6.6 mm	2.79 mm	0.11 in	19.81 mm	0.78 in		Copper			8 Stud

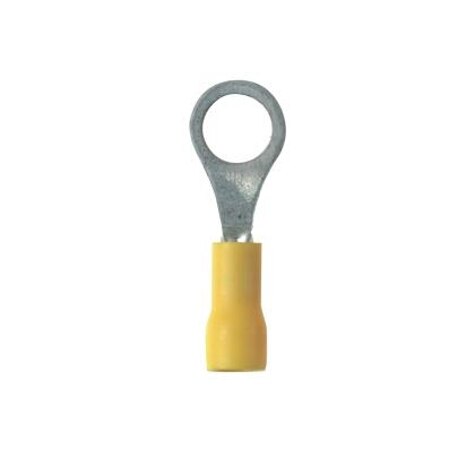

Panduit Corp PV22-6R-CYY	Butted Seam	22 AWG	26 AWG	Tin	Yellow	0.02 in	0.51 mm	Crimp	Free Hanging (In-Line)	Circular	Vinyl	Insulated	0.21 in	5.33 mm	2.79 mm	0.11 in	17.27 mm	0.68 in	6 Stud	Copper
Panduit Corp PV22-6F-CYY	Brazed Seam	22 AWG	26 AWG	Tin	Yellow			Crimp	Free Hanging (In-Line)	Standard	Vinyl	Insulated	0.25 "	6.35 mm	2.79 mm	0.11 in	19.3 mm	0.76 in	6 Stud	Copper	3.56 mm	0.14 in
Panduit Corp PV22-2R-MYY	Butted Seam	22 AWG	26 AWG	Tin	Yellow	0.02 in	0.51 mm	Crimp	Free Hanging (In-Line)	Circular	Vinyl	Insulated	0.21 in	5.33 mm	2.79 mm	0.11 in	17.27 mm	0.68 in	2 Stud	Copper
Panduit Corp PV22-10R-MYY	Butted Seam	22 AWG	26 AWG	Tin	Yellow	0.02 in	0.51 mm	Crimp	Free Hanging (In-Line)	Circular	Vinyl	Insulated	0.32 in	8.13 mm	2.79 mm	0.11 in	19.81 mm	0.78 in	10 Stud	Copper
Panduit Corp PV22-4F-CYY	Brazed Seam	22 AWG	26 AWG	Tin	Yellow			Crimp	Free Hanging (In-Line)	Standard	Vinyl	Insulated	0.2 in	5.08 mm	2.79 mm	0.11 in	17.02 mm	0.67 "	4 Stud	Copper	3.05 mm	0.12 in
Panduit Corp PV22-4R-CYY	Butted Seam	22 AWG	26 AWG	Tin	Yellow	0.02 in	0.51 mm	Crimp	Free Hanging (In-Line)	Circular	Vinyl	Insulated	0.21 in	5.33 mm	2.79 mm	0.11 in	17.27 mm	0.68 in	4 Stud	Copper
