VSKT91 Series

Catalog

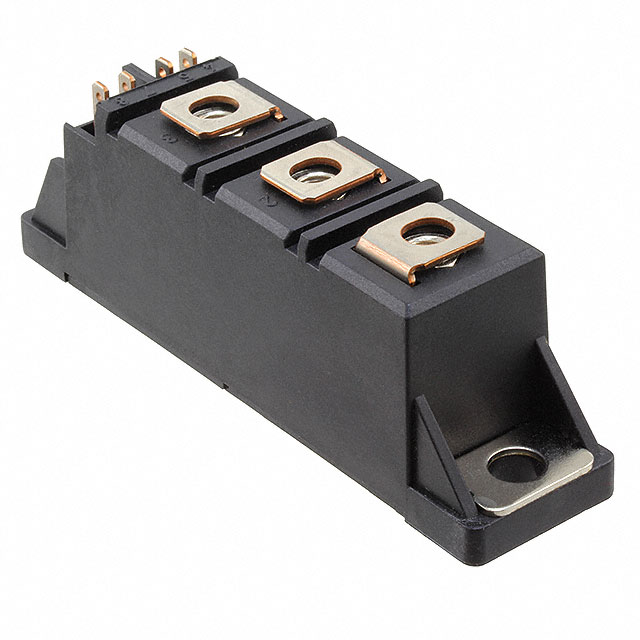

MODULE THYRISTOR 95A ADD-A-PAK

Part	Operating Temperature [Min]	Operating Temperature [Max]	Current - On State (It (AV)) (Max) [Max]	Mounting Type	Current - On State (It (RMS)) (Max) [Max]	Current - Hold (Ih) (Max) [Max]	Structure	Package / Case	Number of SCRs, Diodes	Voltage - Gate Trigger (Vgt) (Max) [Max]	Current - Gate Trigger (Igt) (Max) [Max]	Voltage - Off State	Current - Non Rep. Surge 50, 60Hz (Itsm)
Vishay General Semiconductor - Diodes Division VS-VSKT91/14	-40 C	125 °C	95 A	Chassis Mount	210 A	250 mA	Series Connection - All SCRs	ADD-A-PAK (3 + 4)	2 SCRs	2.5 V	150 mA	1.4 kV	2000 A 2094 A
Vishay General Semiconductor - Diodes Division VS-VSKT91/04	-40 C	125 °C	95 A	Chassis Mount	210 A	250 mA	Series Connection - All SCRs	ADD-A-PAK (3 + 4)	2 SCRs	2.5 V	150 mA	400 V	2000 A 2094 A
Vishay General Semiconductor - Diodes Division VS-VSKT91/10	-40 C	125 °C	95 A	Chassis Mount	210 A	250 mA	Series Connection - All SCRs	ADD-A-PAK (3 + 4)	2 SCRs	2.5 V	150 mA	1 kV	2000 A 2094 A
Vishay General Semiconductor - Diodes Division VS-VSKT91/06	-40 C	125 °C	95 A	Chassis Mount	210 A	250 mA	Series Connection - All SCRs	ADD-A-PAK (3 + 4)	2 SCRs	2.5 V	150 mA	600 V	2000 A 2094 A
