5590103 Series
Manufacturer: DIALIGHT
Beta
⌘K
PANEL INDICATOR SNAP MOLEX TERM
| Part | Termination Style | Panel Cutout Shape | Ratings | Type | Lamp Color | Panel Cutout Dimensions | Panel Cutout Dimensions | Lens Size | Lens Size | Voltage | Lens Transparency | Wavelength - Peak | Lens Style | Viewing Angle | Current | Millicandela Rating | Lens Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
DIALIGHT | |||||||||||||||||

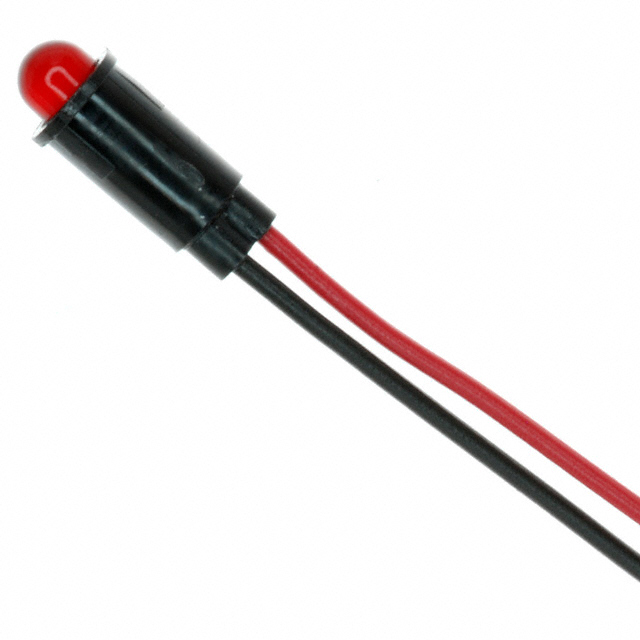

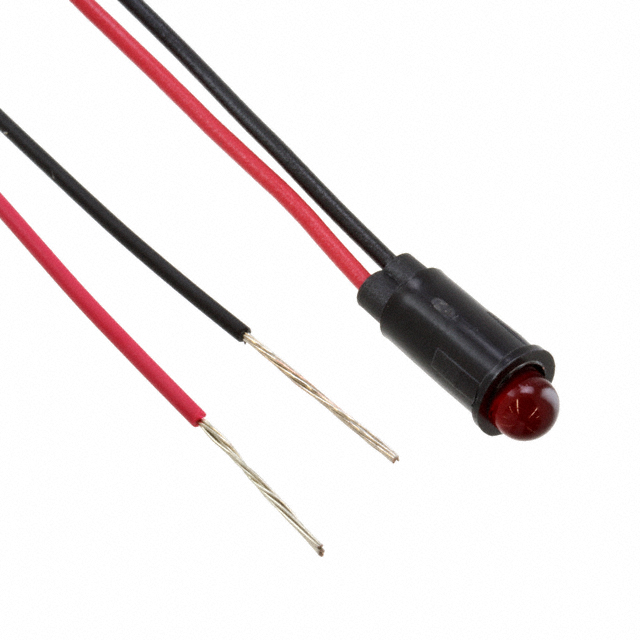

 DIALIGHT | Wire Leads - 14 in (355.60mm) | Round | DC | LED | Red | 6.35 mm | 0.25 " | T-1 3/4 | 5 mm | 12 V | Diffused | 635 nm | Round with Domed Top | 60 ° | 15 mA | 8 mcd | |
 DIALIGHT | Round | DC | LED | Red | 6.35 mm | 0.25 " | T-1 3/4 | 5 mm | 12 V | Diffused | 635 nm | Round with Domed Top | 60 ° | 15 mA | 8 mcd | Red | |

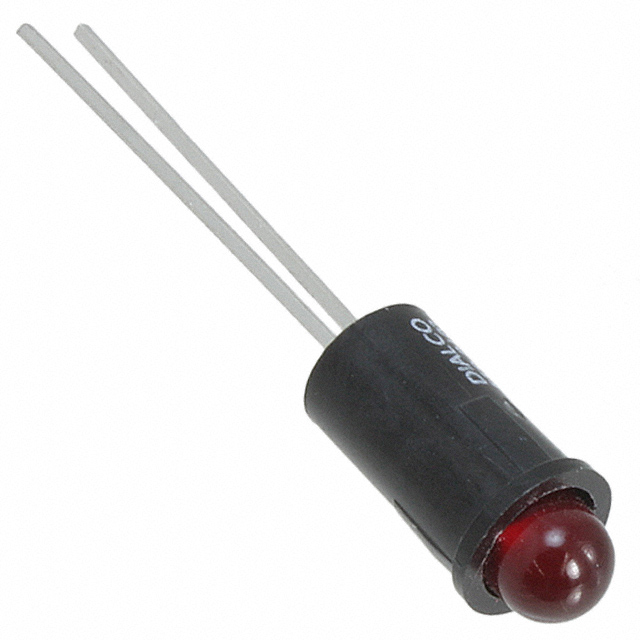

 DIALIGHT | PC Pin | Round | DC | LED | Red | 6.35 mm | 0.25 " | T-1 3/4 | 5 mm | 12 V | Diffused | 635 nm | Round with Domed Top | 60 ° | 15 mA | 8 mcd | Red |
DIALIGHT | Round | DC | LED | Red | 6.35 mm | 0.25 " | T-1 3/4 | 5 mm | 12 V | 635 nm | Round with Domed Top | 60 ° | 8 mcd |
