2823128 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

14P,2MM,BRK HDR,DRRT,2.8,SN,TB

Part	Number of Rows	Shrouding	Contact Material	Mounting Type	Number of Positions Loaded	Number of Positions	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Mating	Contact Length - Mating	Insulation Material	Pitch - Mating [x]	Pitch - Mating [x]	Termination	Fastening Type	Material Flammability Rating	Current Rating (Amps)	Insulation Height [custom]	Insulation Height [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Connector Type	Contact Finish - Post	Row Spacing - Mating	Row Spacing - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Contact Type	Voltage Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Number of Positions
TE Connectivity Raychem Cable Protection 1-2823128-4	2	Unshrouded	Phosphor Bronze	Through Hole Right Angle	All	14	0.3 µm	12 µin	4 mm	0.157 in	Thermoplastic	0.079 in	2 mm	Solder	Push-Pull	UL94 V-0	2 A	0.157 in	4 mm	-40 °C	105 ░C	Square	Breakaway Header	Tin	0.079 in	2 mm	0.11 in	2.8 mm	Male Pin	125 VAC	118.1 µin	3 µm	Black

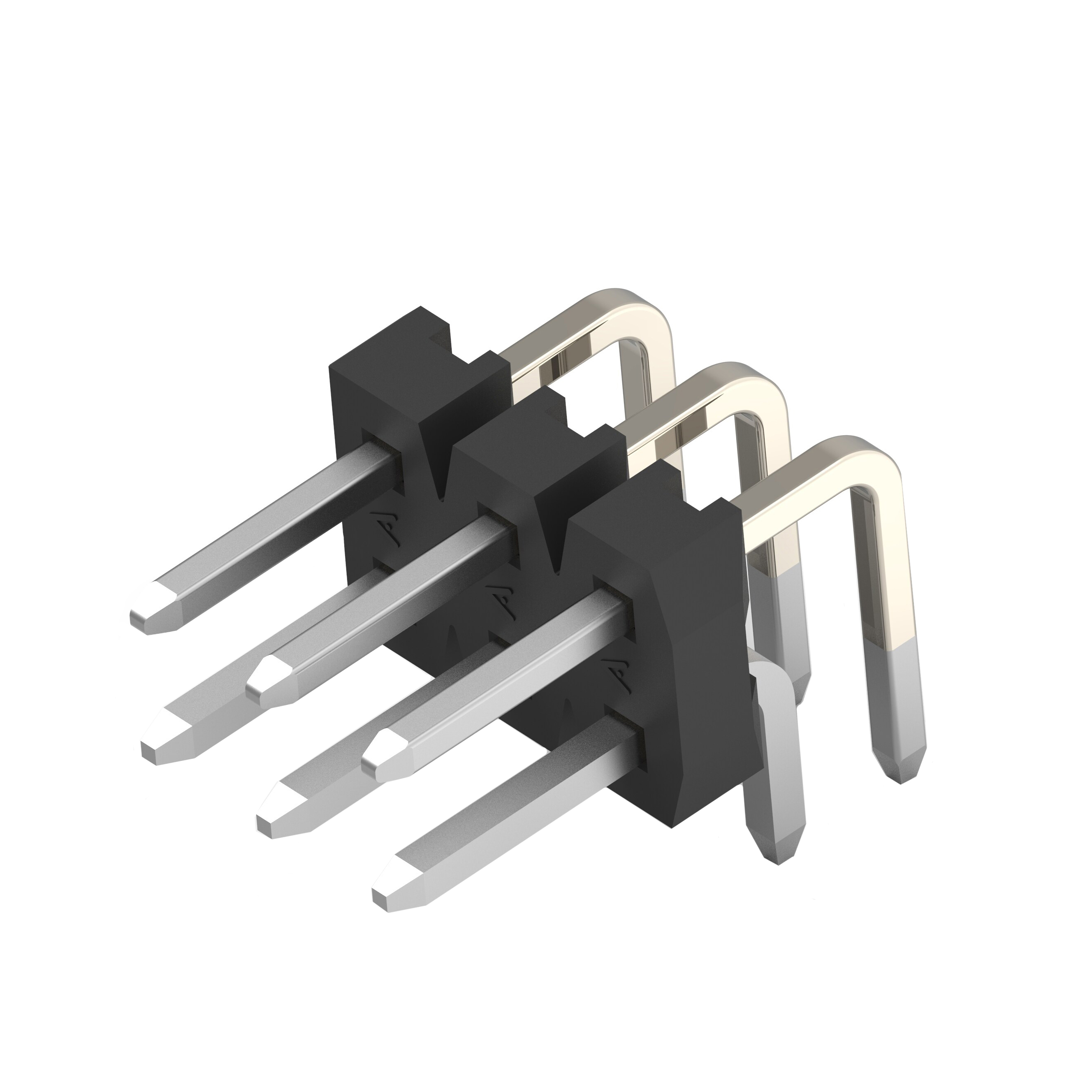

TE Connectivity Raychem Cable Protection 2823128-6	2	Unshrouded	Phosphor Bronze	Through Hole Right Angle	All	6	0.3 µm	12 µin	4 mm	0.157 in	Thermoplastic	0.079 in	2 mm	Solder	Push-Pull	UL94 V-0	2 A	0.157 in	4 mm	-40 °C	105 ░C	Square	Breakaway Header	Tin	0.079 in	2 mm	0.11 in	2.8 mm	Male Pin	125 VAC	118.1 µin	3 µm	Black

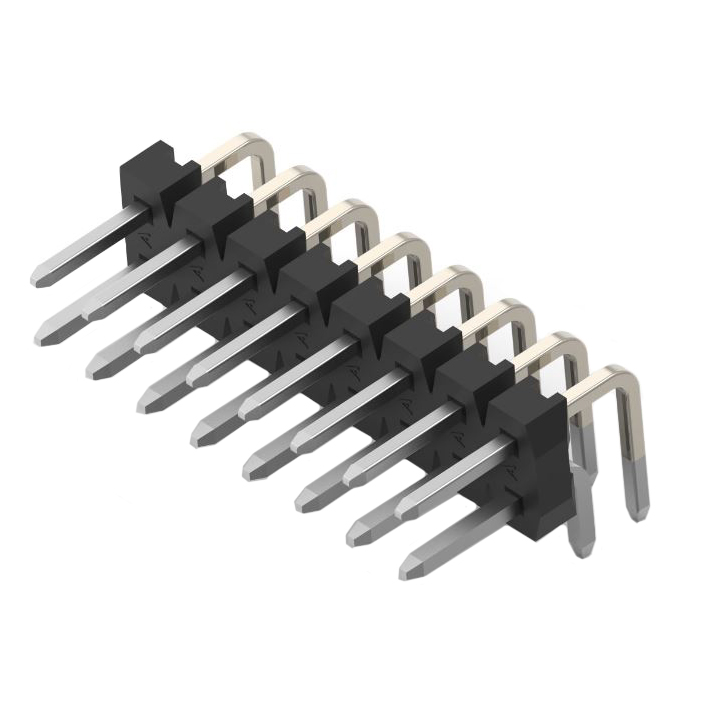

TE Connectivity Raychem Cable Protection 1-2823128-6	2	Unshrouded	Phosphor Bronze	Through Hole Right Angle	All		0.3 µm	12 µin	4 mm	0.157 in	Thermoplastic	0.079 in	2 mm	Solder	Push-Pull	UL94 V-0	2 A	0.157 in	4 mm	-40 °C	105 ░C	Square	Breakaway Header	Tin	0.079 in	2 mm	0.11 in	2.8 mm	Male Pin	125 VAC	118.1 µin	3 µm	Black	16
TE Connectivity Raychem Cable Protection 1-2823128-2	2	Unshrouded	Phosphor Bronze	Through Hole Right Angle	All	12	0.3 µm	12 µin	4 mm	0.157 in	Thermoplastic	0.079 in	2 mm	Solder	Push-Pull	UL94 V-0	2 A	0.157 in	4 mm	-40 °C	105 ░C	Square	Breakaway Header	Tin	0.079 in	2 mm	0.11 in	2.8 mm	Male Pin	125 VAC	118.1 µin	3 µm	Black
TE Connectivity Raychem Cable Protection 5-2823128-0	2	Unshrouded	Phosphor Bronze	Through Hole Right Angle	All	50	0.3 µm	12 µin	4 mm	0.157 in	Thermoplastic	0.079 in	2 mm	Solder	Push-Pull	UL94 V-0	2 A	0.157 in	4 mm	-40 °C	105 ░C	Square	Breakaway Header	Tin	0.079 in	2 mm	0.11 in	2.8 mm	Male Pin	125 VAC	118.1 µin	3 µm	Black
TE Connectivity Raychem Cable Protection 2823128-8	2	Unshrouded	Phosphor Bronze	Through Hole Right Angle	All	8	0.3 µm	12 µin	4 mm	0.157 in	Thermoplastic	0.079 in	2 mm	Solder	Push-Pull	UL94 V-0	2 A	0.157 in	4 mm	-40 °C	105 ░C	Square	Breakaway Header	Tin	0.079 in	2 mm	0.11 in	2.8 mm	Male Pin	125 VAC	118.1 µin	3 µm	Black
TE Connectivity Raychem Cable Protection 2-2823128-0	2	Unshrouded	Phosphor Bronze	Through Hole Right Angle	All	20	0.3 µm	12 µin	4 mm	0.157 in	Thermoplastic	0.079 in	2 mm	Solder	Push-Pull	UL94 V-0	2 A	0.157 in	4 mm	-40 °C	105 ░C	Square	Breakaway Header	Tin	0.079 in	2 mm	0.11 in	2.8 mm	Male Pin	125 VAC	118.1 µin	3 µm	Black

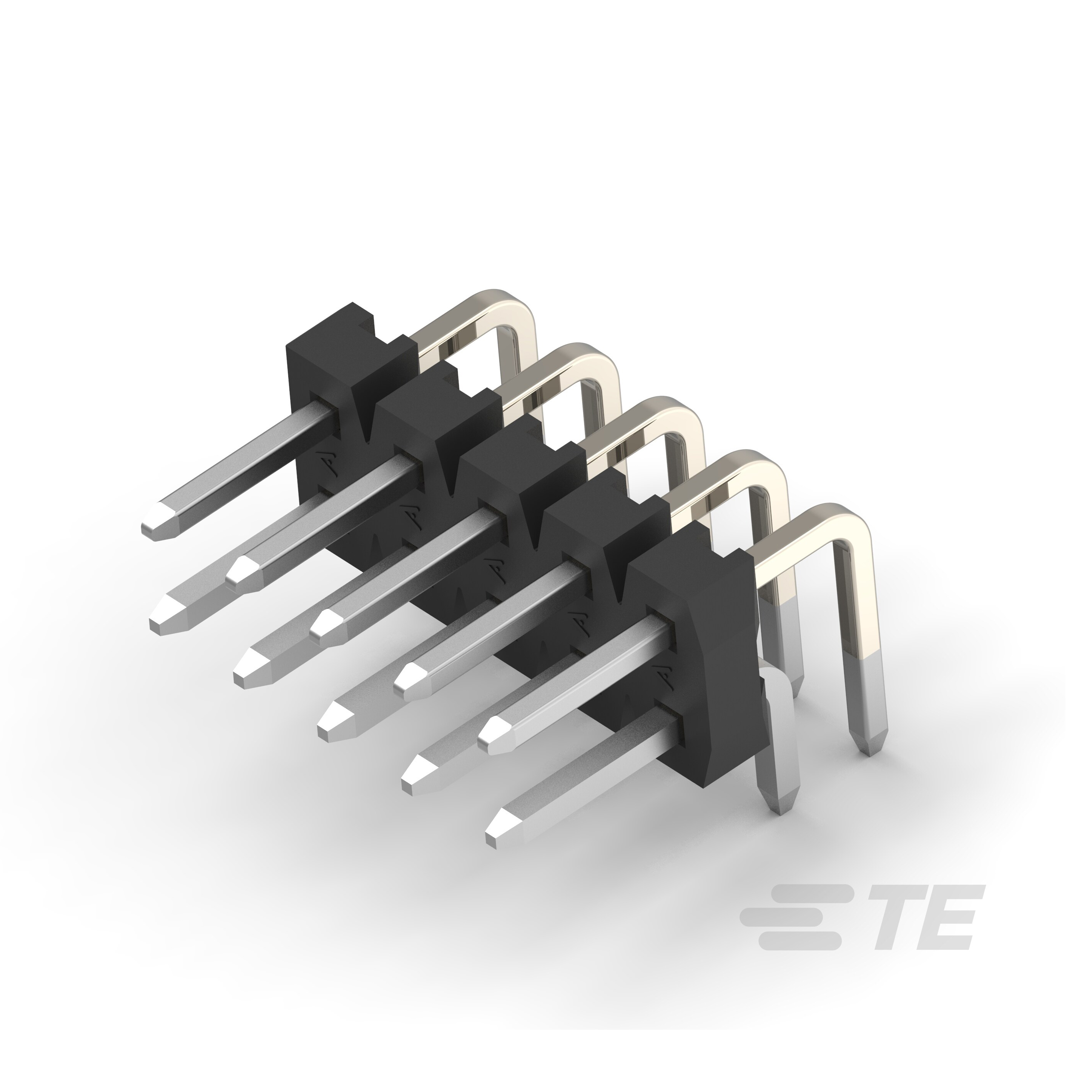

TE Connectivity Raychem Cable Protection 1-2823128-0	2	Unshrouded	Phosphor Bronze	Through Hole Right Angle	All	10	0.3 µm	12 µin	4 mm	0.157 in	Thermoplastic	0.079 in	2 mm	Solder	Push-Pull	UL94 V-0	2 A	0.157 in	4 mm	-40 °C	105 ░C	Square	Breakaway Header	Tin	0.079 in	2 mm	0.11 in	2.8 mm	Male Pin	125 VAC	118.1 µin	3 µm	Black
