5114C Series
Manufacturer: ALPHA WIRE
Beta
⌘K

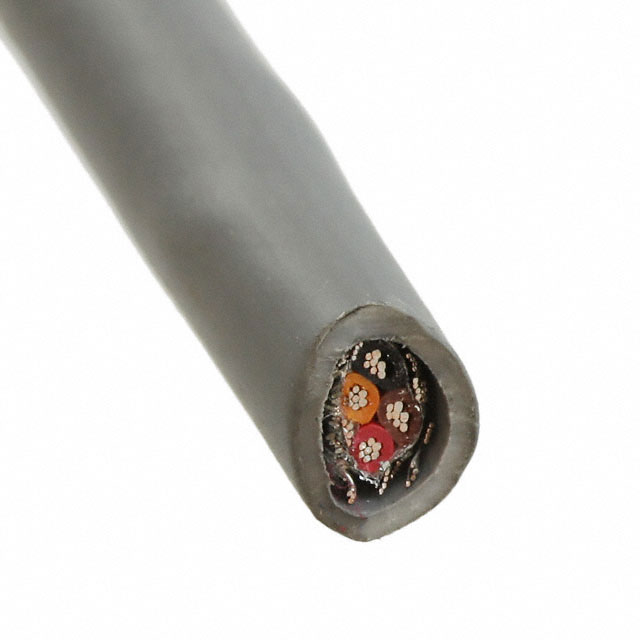

CABLE 4COND 24AWG BLK SHLD 1000'
| Part | Shield Material | Shield Coverage | Conductor Insulation | Operating Temperature [Min] | Operating Temperature [Max] | Shield Type | Wire Gauge | Cable Type | Number of Conductors | Ratings | Conductor Material | Usage | Features | Jacket Color | Jacket (Insulation) Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Strand [custom] | Conductor Strand [custom] | Length | Length | Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Copper Tinned Suprashield® | 70 % 100 % | Poly-Vinyl Chloride (PVC) | -35 °C | 105 ░C | Braid Foil | 24 AWG | Multi-Conductor | 4 | ISO 10993 UL Style 2464 | Copper Tinned | Communication Control | Biological Compatibility Drain Wire Rip Cord | Black | Poly-Vinyl Chloride (PVC) | 0.203 in | 5.16 mm | 0.813 mm | 0.032 in | 7 | 32 AWG | 304.8 m | 1000 ft | 300 VDC |
 ALPHA WIRE | Copper Tinned Suprashield® | 70 % 100 % | Poly-Vinyl Chloride (PVC) | -35 °C | 105 ░C | Braid Foil | 24 AWG | Multi-Conductor | 4 | ISO 10993 UL Style 2464 | Copper Tinned | Communication Control | Biological Compatibility Drain Wire Rip Cord | Slate | Poly-Vinyl Chloride (PVC) | 0.203 in | 5.16 mm | 0.813 mm | 0.032 in | 7 | 32 AWG | 304.8 m | 1000 ft | 300 VDC |
