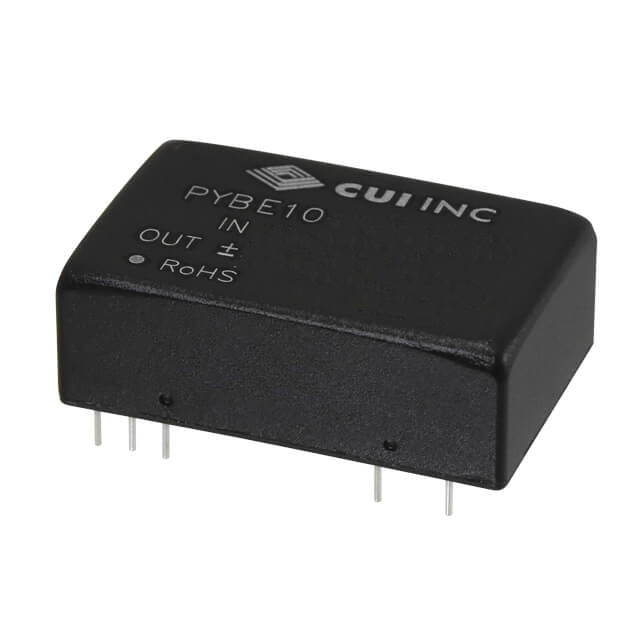

PYBE10 Series

Manufacturer: CUI Inc.

Catalog

DC DC CONVERTER 15V 10W

Part	Voltage - Input (Min) [Min]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Operating Temperature [Min]	Operating Temperature [Max]	Standard Number	Approval Agency	Voltage - Output 1	Features	Voltage - Input (Max) [Max]	Efficiency	Voltage - Isolation	Package / Case	Power (Watts)	Type	Mounting Type	Applications	Number of Outputs	Current - Output (Max) [Max]	Voltage - Output 2	Current - Output (Max)
CUI Inc. PYBE10-Q48-S15	18 V	1.26 in	0.79 in	10.8 mm	20 mm	32 mm	0.43 in	-40 °C	85 °C	55024 55032	EN	15 V	OCP OVP Remote On/Off SCP	75 V	87 %	1.5 kV	24-DIP Module 8 Leads	10 W	Isolated Module	Through Hole	ITE (Commercial)	1	667 mA
CUI Inc. PYBE10-Q48-S5	18 V	1.26 in	0.79 in	10.8 mm	20 mm	32 mm	0.43 in	-40 °C	85 °C	55024 55032	EN	5 V	OCP OVP Remote On/Off SCP	75 V	87 %	1.5 kV	24-DIP Module 8 Leads	10 W	Isolated Module	Through Hole	ITE (Commercial)	1	2 A
CUI Inc. PYBE10-Q48-S3	18 V	1.26 in	0.79 in	10.8 mm	20 mm	32 mm	0.43 in	-40 °C	85 °C	55024 55032	EN	3.3 V	OCP OVP Remote On/Off SCP	75 V	86 %	1.5 kV	24-DIP Module 8 Leads	7.9 W	Isolated Module	Through Hole	ITE (Commercial)	1	2.4 A
CUI Inc. PYBE10-Q24-D15	9 V	1.26 in	0.79 in	10.8 mm	20 mm	32 mm	0.43 in	-40 °C	85 °C	55024 55032	EN	15 V	OCP OVP Remote On/Off SCP	36 V	87 %	1.5 kV	24-DIP Module 9 Leads	10 W	Isolated Module	Through Hole	ITE (Commercial)	2		-15 V	333 mA
CUI Inc. PYBE10-Q24-S12	9 V	1.26 in	0.79 in	10.8 mm	20 mm	32 mm	0.43 in	-40 °C	85 °C	55024 55032	EN	12 V	OCP OVP Remote On/Off SCP	36 V	87 %	1.5 kV	24-DIP Module 8 Leads	10 W	Isolated Module	Through Hole	ITE (Commercial)	1	833 mA
CUI Inc. PYBE10-Q24-S3	9 V	1.26 in	0.79 in	10.8 mm	20 mm	32 mm	0.43 in	-40 °C	85 °C	55024 55032	EN	3.3 V	OCP OVP Remote On/Off SCP	36 V	87 %	1.5 kV	24-DIP Module 8 Leads	7.9 W	Isolated Module	Through Hole	ITE (Commercial)	1	2.4 A
CUI Inc. PYBE10-Q24-D5	9 V	1.26 in	0.79 in	10.8 mm	20 mm	32 mm	0.43 in	-40 °C	85 °C	55024 55032	EN	5 V	OCP OVP Remote On/Off SCP	36 V	83 %	1.5 kV	24-DIP Module 9 Leads	10 W	Isolated Module	Through Hole	ITE (Commercial)	2		-5 V	1 A
