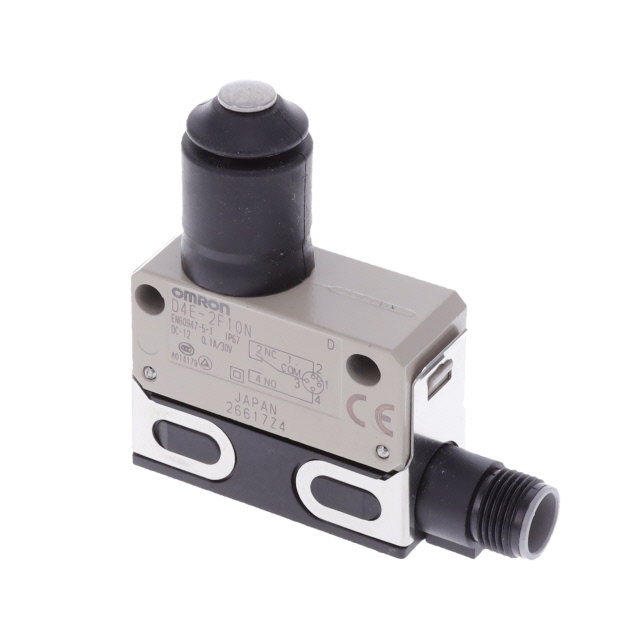

D4E-2F10 Series
Manufacturer: Omron Automation and Safety
Beta
⌘K
SWITCH SNAP ACT SPDT 0.1A 125V
| Part | Release Force | Switch Function | Mounting Type | Voltage Rating - AC | Pretravel | Pretravel | Voltage Rating - DC | Ingress Protection | Termination Style | Actuator Type | Overtravel | Overtravel | Operating Force | Circuit | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Operating Position | Operating Position | Mechanical Life | Differential Travel | Differential Travel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Automation and Safety | 500 gf | On-Mom | Chassis Mount | 125 V | 0.06 in | 1.5 mm | 30 V | IP67 - Dust Tight Waterproof | Connector | Round (Pin Plunger) | 0.118 " | 3 mm | 1200 gf | SPDT | -10 °C | 80 °C | 100 mA | 1.18 in | 30 mm | 10000000 Cycles | 0.1 mm | 0.004 in |
