DZ1070 Series

Manufacturer: INFINEON

Catalog

1800 V, 1100 A POWER BLOCK 70 MM SINGLE RECTIFIER DIODE MODULES

Part	Package / Case	Current - Reverse Leakage @ Vr	Mounting Type	Technology	Supplier Device Package	Voltage - DC Reverse (Vr) (Max) [Max]	Voltage - Forward (Vf) (Max) @ If [Max]	Current - Average Rectified (Io)	Speed [Min]	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]

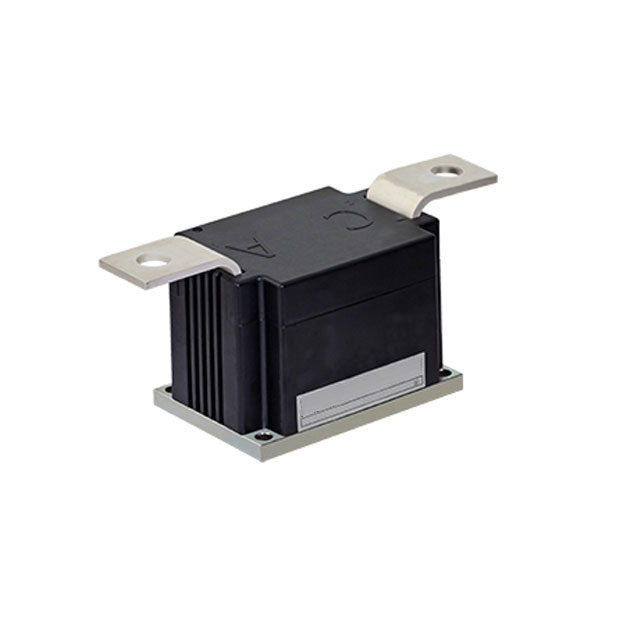

INFINEON DZ1070N18KHPSA3	Module	150 mA	Chassis Mount	Standard	Module	1800 V	1.11 V	1100 A	200 mA 500 ns	-40 °C	150 °C
INFINEON DZ1070N22KHPSA3	Module	150 mA	Chassis Mount	Standard	Module	2200 V	1.11 V	1100 A	200 mA 500 ns	-40 °C	150 °C
INFINEON DZ1070N26KHPSA1	Module		Chassis Mount	Standard	Module	2600 V	1.52 V	1070 A	200 mA 500 ns	-40 °C	150 °C
