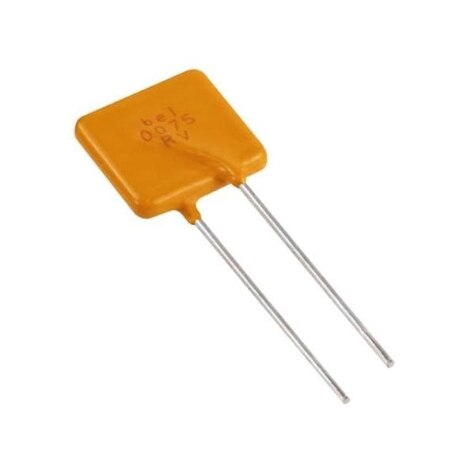

BEL FUSE, INTERNAL PART #: 0ZRV0055FF1A
BEL FUSE, INTERNAL PART #: 0ZRV0055FF1A
| Part | Approval Agency | Lead Spacing | Lead Spacing | Current - Trip (It) | Operating Temperature [Max] | Operating Temperature [Min] | Resistance - Post Trip (R1) (Max) [Max] | Package / Case | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Time to Trip | Current - Hold (Ih) (Max) [Max] | Current - Max [Max] | Voltage - Max [Max] | Voltage - Max | Ratings | Resistance - Initial (Ri) (Min) [Min] | Mounting Type | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bel Fuse Inc. | cURus TUV | 0.201 in | 5.1 mm | 1.25 A | 85 °C | -20 ░C | 2.1 Ohms | Disc Radial | 0.65 in | 16.5 mm | 26 s | 550 mA | 5.5 A | 277 V | 305 Int | AEC-Q200 | 630 mOhms | Through Hole | 0.161 in | 0.496 in | 12.6 mm | 4.1 mm | Ceramic |
