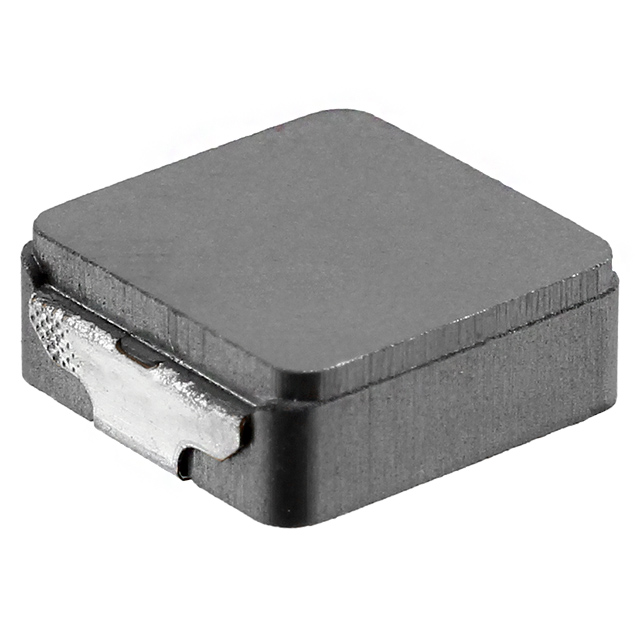

IHLP-01 Series

Catalog

POWER INDUCTORS - SMD .22UH 20%

Part	DC Resistance (DCR) (Max)	Inductance Frequency - Test	Tolerance	Current - Saturation (Isat)	Height - Seated (Max)	Frequency - Self Resonant	Size / Dimension Length	Size / Dimension Width	Shielding	Inductance	Mounting Type	Current Rating	Operating Temperature (Max)	Operating Temperature (Min)	Package / Case	Type	Package Name	Material - Core
Vishay Dale IHLP1616BZERR22M01	8 mOhm	100 kHz	20 %	24 A	0.079 in	151 MHz	0.175 in	0.16 in	Shielded	220 nH	Surface Mount	13 A	125 °C	-55 °C	Nonstandard	Molded
Vishay Dale IHLP2525CZERR47M01	4.2 mOhm	100 kHz	20 %	26 A	0.118 in		0.27 in	0.255 in	Shielded	470 nH	Surface Mount	17.5 A	125 °C	-55 °C	Nonstandard	Molded
Vishay Dale IHLP4040DZERR56M01	1.95 mOhm	100 kHz	20 %	49 A	0.157 in		0.425 in	0.4 in	Shielded	560 nH	Surface Mount	27.5 A	125 °C	-55 °C	Nonstandard	Molded	4040
Vishay Dale IHLP5050EZERR68M01	1.7 mOhm	100 kHz	20 %	54 A	0.197 in		0.52 in	0.508 in	Shielded	680 nH	Surface Mount	34 A	125 °C	-55 °C	Nonstandard	Molded
Vishay Dale IHLP2020BZERR22M01	5.2 mOhm	100 kHz	20 %	22 A	0.079 in	145 MHz	0.216 in	0.204 in	Shielded	220 nH	Surface Mount	15 A	125 °C	-55 °C	Nonstandard	Molded
Vishay Dale IHLP2525CZERR10M01	1.7 mOhm	100 kHz	20 %	60 A	0.118 in		0.27 in	0.255 in	Shielded	100 nH	Surface Mount	32.5 A	125 °C	-55 °C	Nonstandard	Molded
Vishay Dale IHLP1212BZEVR47M01
Vishay Dale IHLP4040DZER5R6M01	19.3 mOhm	100 kHz	20 %	16 A	0.157 in		0.425 in	0.4 in	Shielded	5.6 µH	Surface Mount	8.5 A	125 °C	-55 °C	Nonstandard	Molded	4040
Vishay Dale IHLP2525EZER1R0M01	6.5 mOhm	100 kHz	20 %	15 A	0.197 in		0.27 in	0.255 in	Shielded	1 µH	Surface Mount	13 A	125 °C	-55 °C	Nonstandard	Molded		Iron Powder
Vishay Dale IHLP1616ABERR22M01	12 mOhm	100 kHz	20 %	20 A	0.047 in	183 MHz	0.175 in	0.16 in	Shielded	220 nH	Surface Mount	8.5 A	125 °C	-55 °C	Nonstandard	Molded
