CGS THS Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

Catalog

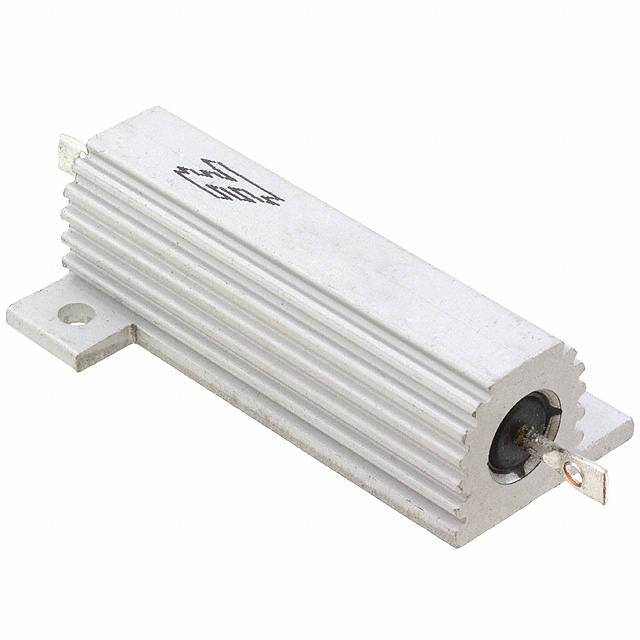

THROUGH HOLE WIREWOUND RESISTOR, THS SERIES, 5 OHM, 25 W, - 5%, 550 V, AXIAL LEADED ROHS COMPLIANT: YES

...

Part	Coating, Housing Type	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Mounting Feature	Lead Style	Power (Watts)	Composition	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Resistance	Tolerance	Temperature Coefficient	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
TE Connectivity AMP Connectors THS255R0J	Aluminum	Axial Box	29 mm	1.102 "	1.142 in	28 mm	Flanges	Solder Lugs	25 W	Wirewound	200 °C	-55 C	15 mm	0.591 "	5 Ohms	5 %	50 ppm/░C
TE Connectivity AMP Connectors THS1582RJ	Aluminum	Axial Box	21 mm	0.827 in	0.827 "	21 mm	Flanges	Solder Lugs	15 W	Wirewound	200 °C	-55 C	11 mm	0.433 in	82 Ohms	5 %	50 ppm/░C
TE Connectivity AMP Connectors THS501R2J	Aluminum	Axial Box	51 mm	1.181 in	2.008 "	30 mm	Flanges	Solder Lugs	50 W	Wirewound	200 °C	-55 C		0.669 "	1.2 Ohms	5 %	50 ppm/░C	17 mm
TE Connectivity AMP Connectors THS1512RJ	Aluminum	Axial Box	21 mm	0.827 in	0.827 "	21 mm	Flanges	Solder Lugs	15 W	Wirewound	200 °C	-55 C	11 mm	0.433 in	12 Ohms	5 %	50 ppm/░C
TE Connectivity AMP Connectors THS15150RJ	Aluminum	Axial Box	21 mm	0.827 in	0.827 "	21 mm	Flanges	Solder Lugs	15 W	Wirewound	200 °C	-55 C	11 mm	0.433 in	150 Ohms	5 %	30 ppm/°C
TE Connectivity AMP Connectors THS151R0J	Aluminum	Axial Box	21 mm	0.827 in	0.827 "	21 mm	Flanges	Solder Lugs	15 W	Wirewound	200 °C	-55 C	11 mm	0.433 in	1 Ohms	5 %	50 ppm/░C
TE Connectivity AMP Connectors THS106R8J	Aluminum	Axial Box	17 mm	0.669 "	0.669 in	17 mm	Flanges	Solder Lugs	10 W	Wirewound	200 °C	-55 C			6.8 Ohms	5 %	50 ppm/░C	9 mm	0.354 in
TE Connectivity AMP Connectors THS15R50J	Aluminum	Axial Box	21 mm	0.827 in	0.827 "	21 mm	Flanges	Solder Lugs	15 W	Wirewound	200 °C	-55 C	11 mm	0.433 in	500 mOhms	5 %	50 ppm/░C
TE Connectivity AMP Connectors THS50330RJ	Aluminum	Axial Box	51 mm	1.181 in	2.008 "	30 mm	Flanges	Solder Lugs	50 W	Wirewound	200 °C	-55 C		0.669 "	330 Ohms	5 %	30 ppm/°C	17 mm
TE Connectivity AMP Connectors THS103R3J	Aluminum	Axial Box	17 mm	0.669 "	0.669 in	17 mm	Flanges	Solder Lugs	10 W	Wirewound	200 °C	-55 C			3.3 Ohms	5 %	50 ppm/░C	9 mm	0.354 in
