MEAS D5100 Series

Catalog

PRESS XDCR D5151-00000G-001PD

Part	Features	Applications	Maximum Pressure [Max]	Maximum Pressure [Max]	Output Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Pressure	Operating Pressure	Port Style	Port Size	Port Size	Operating Temperature [Max]	Operating Temperature [Min]	Output [Min]	Output [Max]	Accuracy	Package / Case	Pressure Type	Maximum Pressure	Maximum Pressure	Port Size	Operating Pressure
TE Connectivity AMP Connectors D5151-00000G-001PD	Temperature Compensated	Industrial Automation	10 PSI	68.95 kPa	Analog Current	9 V	30 VDC	6.89 kPa	1 PSI	Threaded	1/4 Female NPT	0.25 in	85 °C	-40 C	4 mA	20 mA	0.3 %	Cylinder	Differential
TE Connectivity AMP Connectors D5154-000005-050PD	Temperature Compensated	Industrial Automation			Analog Current	9 V	30 VDC	344.74 kPa	50 PSI	Threaded	Male NPT	0.25 in	125 °C	-40 C	4 mA	20 mA	0.1 %	Cylinder	Differential	150 PSI	1034.21 kPa	0.25 "

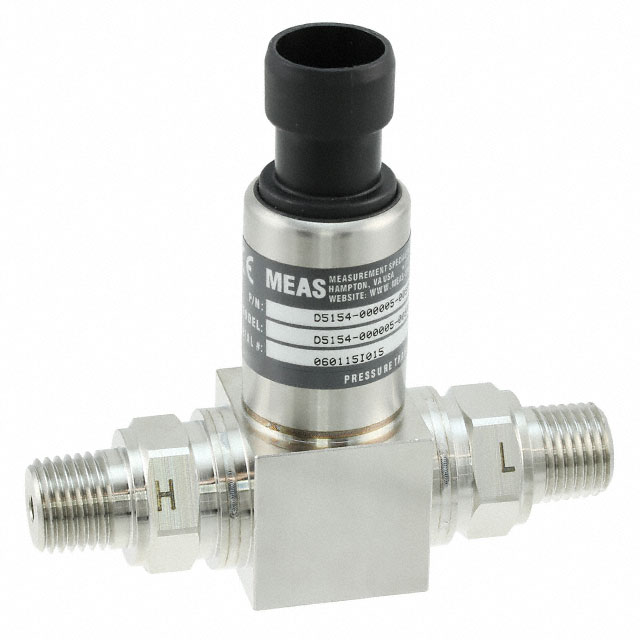

TE Connectivity AMP Connectors D5154-000005-005PD	Temperature Compensated	Industrial Automation			Analog Current	9 V	30 VDC	34.47 kPa	5 PSI	Threaded	Male NPT	0.25 in	125 °C	-40 C	4 mA	20 mA	0.25 %	Cylinder	Differential	15 PSI	103.42 kPa	0.25 "

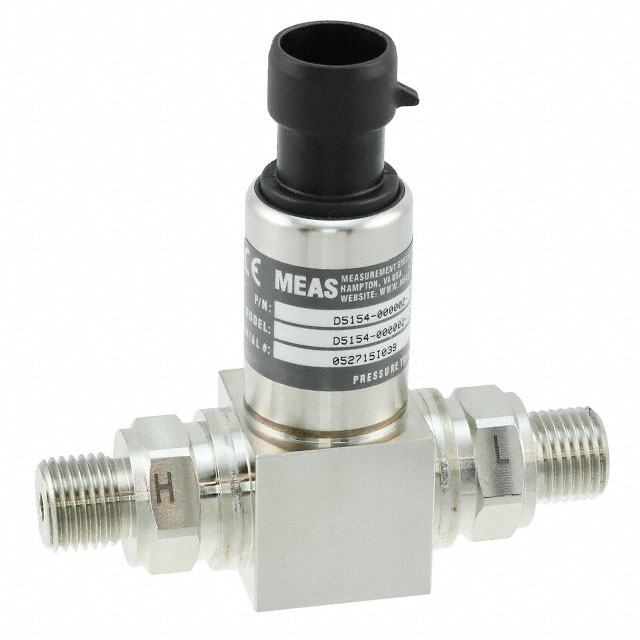

TE Connectivity AMP Connectors D5154-000002-.35BD	Temperature Compensated	Industrial Automation			Analog Current	9 V	30 VDC	5.08 PSI		Threaded	BSPP Male	0.25 in	125 °C	-40 C	4 mA	20 mA	0.25 %	Cylinder	Differential	15.23 PSI	105 kPa	0.25 "	35 kPa

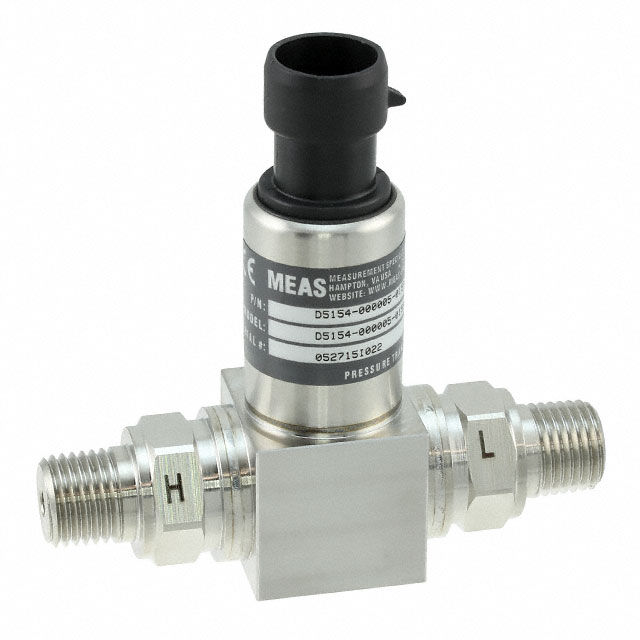

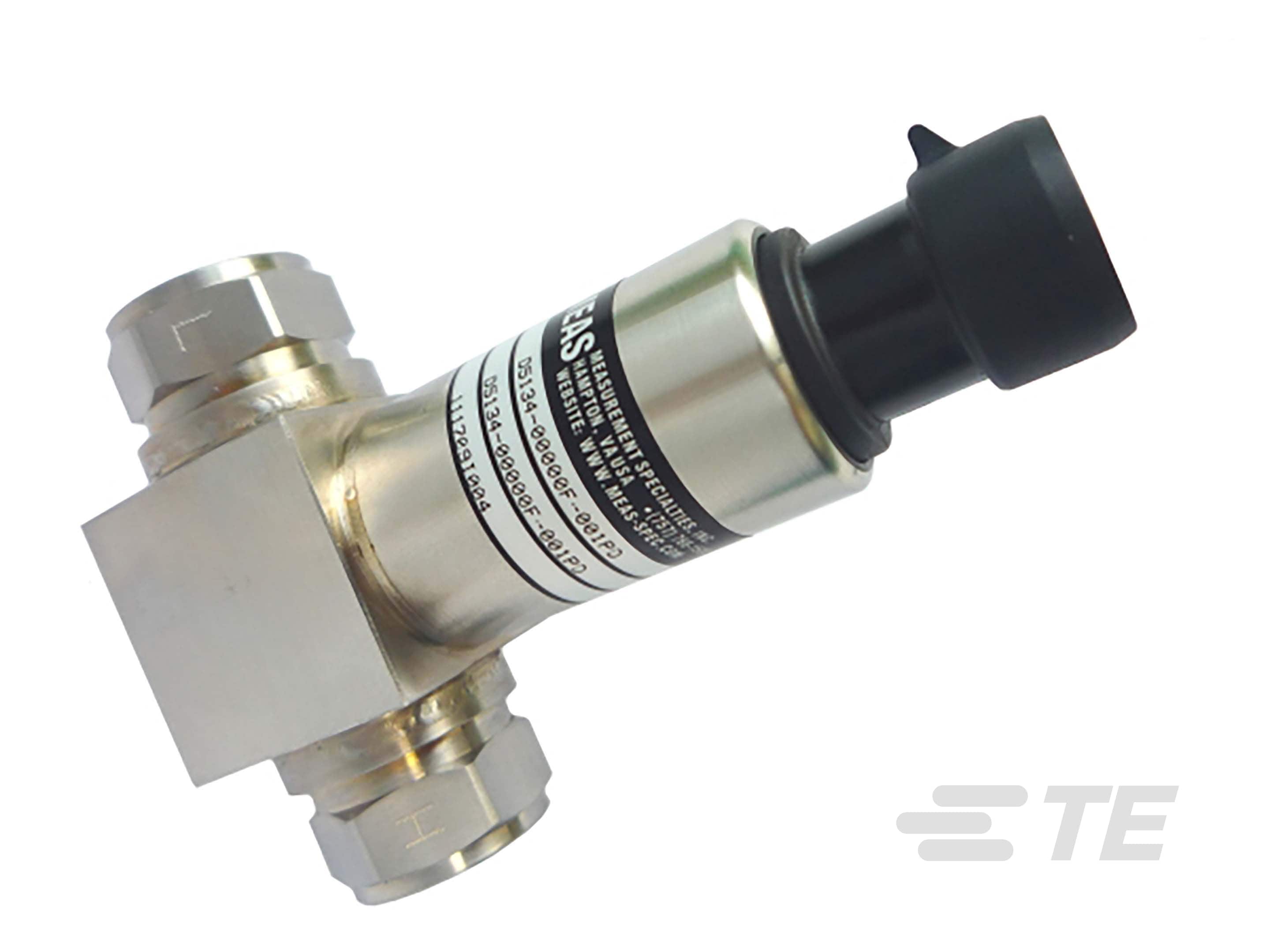

TE Connectivity AMP Connectors D5154-000005-015PD	Temperature Compensated	Industrial Automation			Analog Current	9 V	30 VDC	103.42 kPa	15 PSI	Threaded	Male NPT	0.25 in	125 °C	-40 C	4 mA	20 mA	0.1 %	Cylinder	Differential	45 PSI	310.26 kPa	0.25 "
