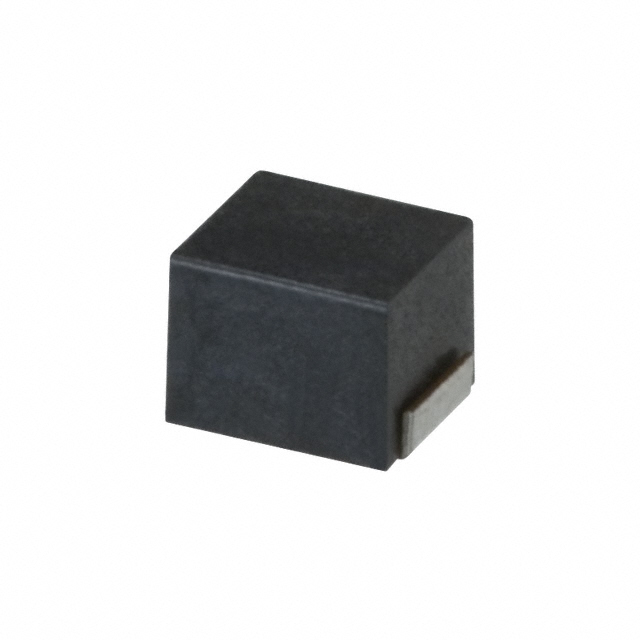

NLV25-EFD Series

Catalog

RF INDUCTORS - SMD 56UH 12.1OHMS 75MA WOUND FER AEC-Q200

Part	Tolerance	Inductance Frequency - Test	Type	Ratings	DC Resistance (DCR) [Max]	Mounting Type	Material - Core	Package / Case	Package / Case	Supplier Device Package	Supplier Device Package	Q @ Freq	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Inductance	Frequency - Self Resonant	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Current Rating (Amps)	Shielding	DC Resistance (DCR)	Q @ Freq [custom]	Q @ Freq [custom]
TDK Corporation NLV25T-560J-EFD	5 %	2.52 MHz	Drum Core Wirewound	AEC-Q200	12.1 Ohm	Surface Mount	Ferrite	2520 Metric	1008	2520 Metric	1008	2.52 MHz 20	-40 C	105 ░C	2.5 mm	0.079 in	0.098 in	2 mm	56 µH	16 MHz	1.9 mm	0.075 "	75 mA	Unshielded
TDK Corporation NLV25T-R27J-EFD	5 %	25.2 MHz	Drum Core Wirewound	AEC-Q200		Surface Mount	Ferrite	2520 Metric	1008	2520 Metric	1008		-40 C	105 ░C	2.5 mm	0.079 in	0.098 in	2 mm	270 nH	425 MHz	1.9 mm	0.075 "	0.42 A	Unshielded	550 mOhm	30	25.2 MHz
TDK Corporation NLV25T-1R0J-EFD	5 %	7.96 MHz	Drum Core Wirewound	AEC-Q200	1.1 Ohm	Surface Mount	Ferrite	2520 Metric	1008	2520 Metric	1008	7.96 MHz 30	-40 C	105 ░C	2.5 mm	0.079 in	0.098 in	2 mm	1 µH	245 MHz	1.9 mm	0.075 "	0.245 A	Unshielded
TDK Corporation NLV25T-R33J-EFD	5 %	25.2 MHz	Drum Core Wirewound	AEC-Q200		Surface Mount	Ferrite	2520 Metric	1008	2520 Metric	1008		-40 C	105 ░C	2.5 mm	0.079 in	0.098 in	2 mm	330 nH	400 MHz	1.9 mm	0.075 "	400 mA	Unshielded		30	25.2 MHz
TDK Corporation NLV25T-047J-EFD	5 %	100 MHz	Drum Core Wirewound	AEC-Q200	500 mOhm	Surface Mount	Ferrite	2520 Metric	1008	2520 Metric	1008	20 100 MHz	-40 C	105 ░C	2.5 mm	0.079 in	0.098 in	2 mm	47 nH	1.2 GHz	1.9 mm	0.075 "	360 mA	Unshielded
TDK Corporation NLV25T-R18J-EFD	5 %	25.2 MHz	Drum Core Wirewound	AEC-Q200	400 mOhm	Surface Mount	Ferrite	2520 Metric	1008	2520 Metric	1008		-40 C	105 ░C	2.5 mm	0.079 in	0.098 in	2 mm	180 nH	500 MHz	1.9 mm	0.075 "	460 mA	Unshielded		30	25.2 MHz
TDK Corporation NLV25T-100J-EFD	5 %	2.52 MHz	Drum Core Wirewound	AEC-Q200	3.5 Ohm	Surface Mount	Ferrite	2520 Metric	1008	2520 Metric	1008	2.52 MHz 25	-40 C	105 ░C	2.5 mm	0.079 in	0.098 in	2 mm	10 µH	33 MHz	1.9 mm	0.075 "	155 mA	Unshielded
TDK Corporation NLV25T-101J-EFD	5 %	0.796 MHz	Drum Core Wirewound	AEC-Q200	21 Ohm	Surface Mount	Ferrite	2520 Metric	1008	2520 Metric	1008		-40 C	105 ░C	2.5 mm	0.079 in	0.098 in	2 mm	100 µH	12 MHz	1.9 mm	0.075 "	60 mA	Unshielded		15	796 kHz
